Cub Cadet LT 1018
The Cub Cadet LT 1018 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 501 cc 30.59 ci engine. The rated power output is 18.5 hp 13.8 kW. Transmission: Hydro-Gear 311-0510. Operating weight: 105 lbs 47 kg.
Engine Power
18.5 hp
13.8 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Hydro-Gear 311-0510
Operating Weight
105 lbs
47 kg
Cub Cadet Lawn Tractors Cub Cadet LT 1018 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2004
LT 1000 SeriesLawn tractor |
|---|---|
2004 | |
LT 1000 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet LT 1018 Engine | |
|---|---|
18.5HP Briggs & Stratton 501cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Cub Cadet LT 1018 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 502 lbs
227 kg |
Front tire | 15x6x6 |
Rear tire | 20x9x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 16 |
Battery CCA | 190 |
Battery volts | 12 |
References | |
|---|---|
 | |
Outdoor Power Equipment published in 2004, by Cub Cadet |
Engine
Engine Detail — 501 cc / 30.59 ci Gasoline
Manufacturer | Briggs & Stratton 31Q777 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 501 cc
30.59 ci |
Bore/Stroke | 3.56x3.06 inches
90 x 78 mm |
Power (gross) | 18.5 hp
13.8 kW |
Compression | 8.5:1 |
Rated RPM | 3600 |
Idle RPM | 1200-3600 |
Torque | 25.9 lb-ft
35.1 Nm |
Torque RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Oil change | 100 h |
Sparkplug gap | 0.030 inches
0.762 mm |
Transmission
Transmission — Hydro-Gear 311-0510
Transmission | Hydro-Gear 311-0510 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet LT 1018 Tires | |
|---|---|
Lawn/turf front | 15x6x6 |
Lawn/turf rear | 20x9x8 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 68 inches
172 cm |
Width | 45 inches
114 cm |
Height (steering wheel) | 43 inches
109 cm |
Weight | 502 lbs
227 kg |
Ground clearance | 4.5 inches
11 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Weight | 105 lbs
47 kg |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

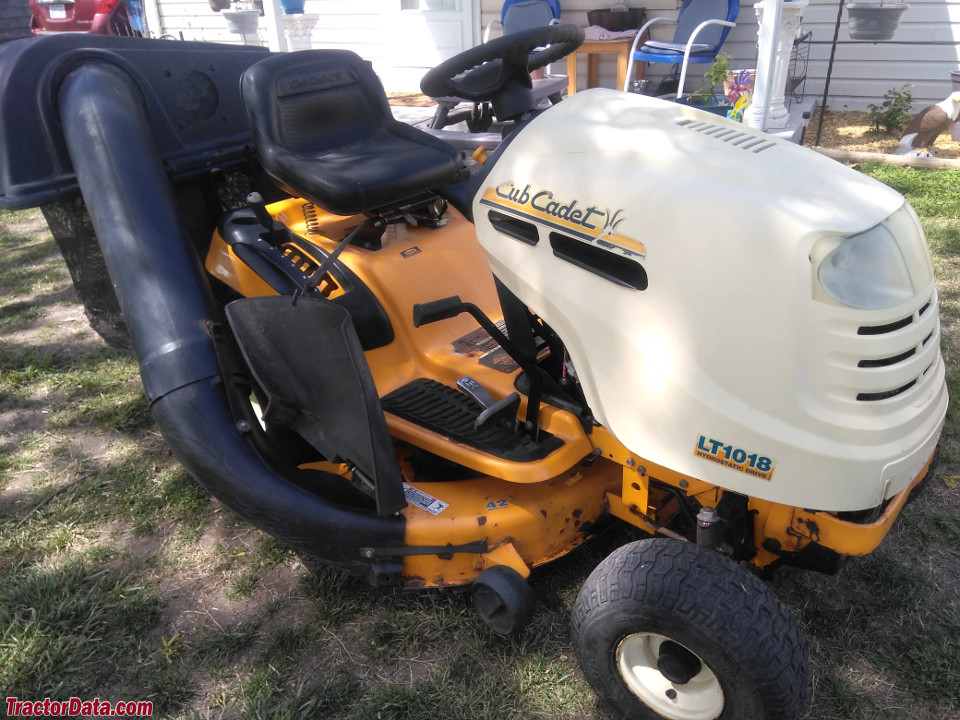

Cub Cadet LT 1018

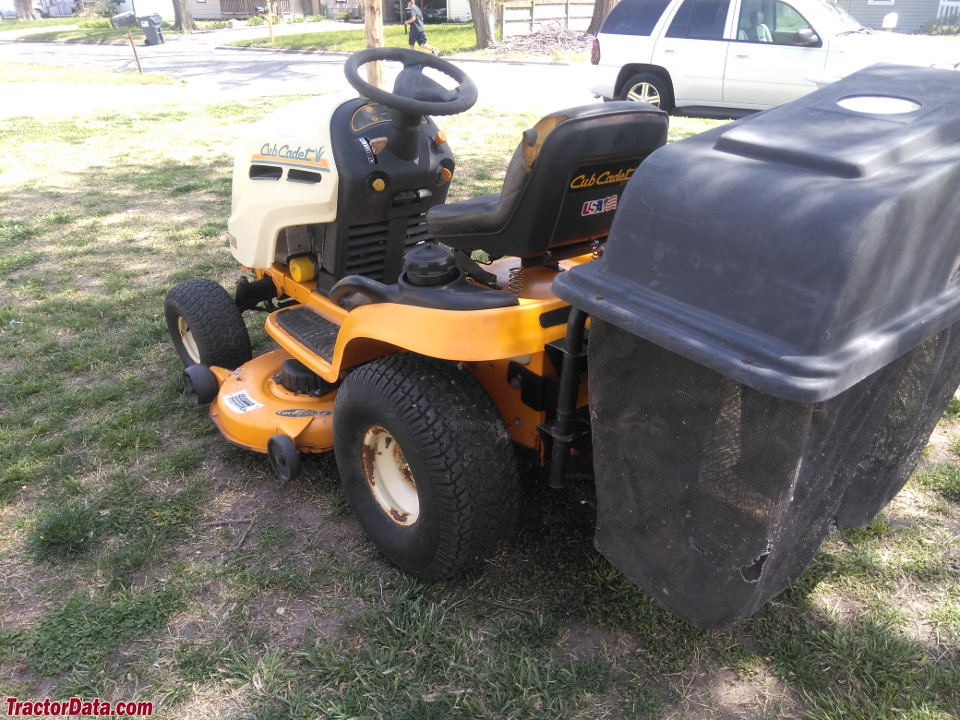

Cub Cadet LT 1018

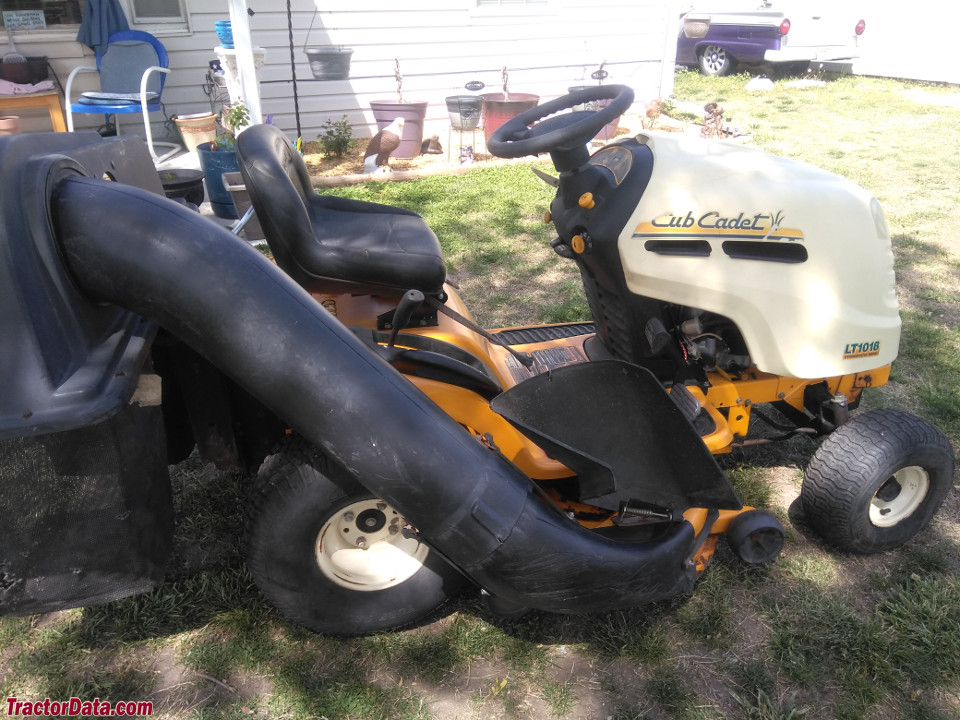

Cub Cadet LT 1018
