Cub Cadet GT 2550

The Cub Cadet GT 2550 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The rated power output is 22 hp 16.4 kW. Transmission: Hydro-Gear BDU-10. Operating weight: 841 lbs*Weight with mower deck. 381 kg.

Overview

	2005 - 2010 2500 SeriesGarden tractor
2005 - 2010
2500 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor
Original price	$3,599 (2005 )
	$4,349 (2011 )

Cub Cadet GT 2550 Engine
22HP Kohler 624cc 2-cyl gasoline
Fuel tank	2.25 gal 8.5 L
Engine details ...

Cub Cadet GT 2550 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Dry disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47 inches 119 cm
Weight	841 lbs 381 kg
Front tire	16x6.5-8
Rear tire	23x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	275
Battery volts	12

References
Residential Outdoor Power Equipment 2005 published by Cub Cadet*
Better Residential Outdoor Power Equipment published in 2006, by Cub Cadet
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet
Operator's Manual GT 2550 (769-02069C) published in 2006
*Publication contains known errors.

Engine

Engine Detail — 624 cc / 38.1 ci Gasoline

Manufacturer	Kohler CH670S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-twin
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	22 hp 16.4 kW
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	2 qts 1.9 L
Oil change	100 h

Transmission

Transmission — Hydro-Gear BDU-10

Transmission	Hydro-Gear BDU-10
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.7 qts 5.4 L
Oil type	Drive System Fluid Plus
Oil change	100 h

	Drive System Fluid Plus

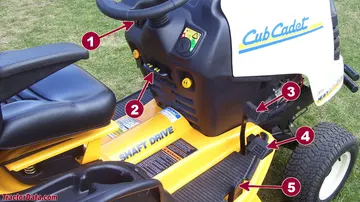

GT 2550 Transmission Controls
1	Throttle
2	Parking brake
3	Brake
4	Forward
5	Reverse

Dimensions

Cub Cadet GT 2550 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x9.5-12

Dimensions
Wheelbase	47 inches 119 cm
Length	72 inches 182 cm
Height (steering wheel)	42 inches 106 cm
Weight	841 lbs*Weight with mower deck. 381 kg
4-bolt flange rear axle	1 inch diameter 25 mm

Attachments

Attachment overview
50" mid-mount mower deck
Snowblower
Blade
The 2500 series was compatible with the 30-inch tiller (190-002).

50" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual spring-assisted lift
Cutting width	50 inches 127 cm
Cut height	1.5 to 4 inch 3 to 10 cm

Photos

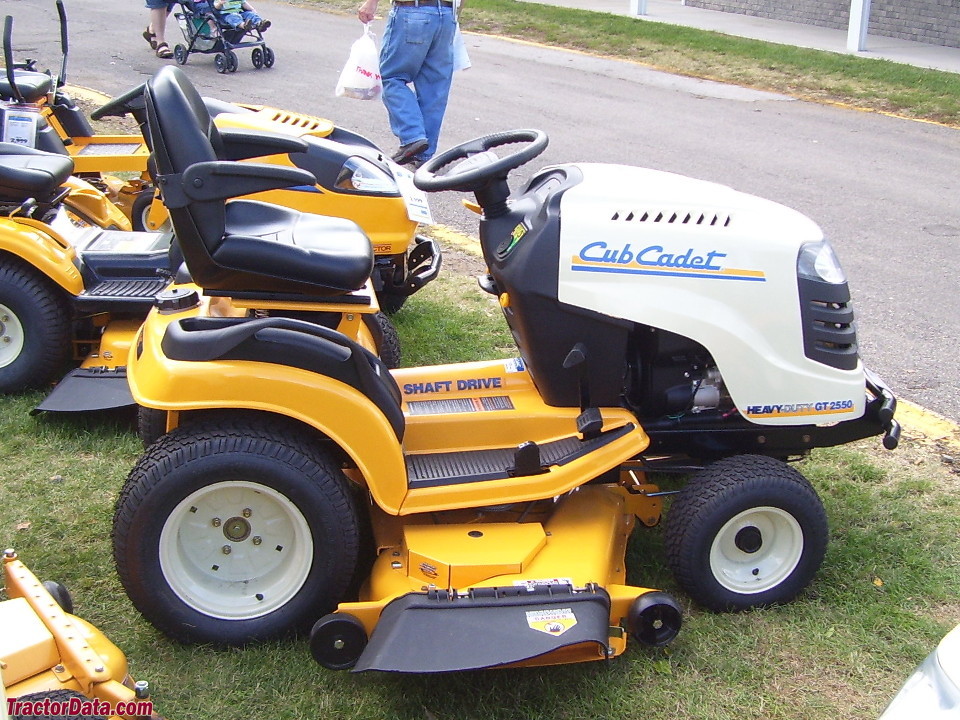

Cub Cadet GT 2550 garden tractor.

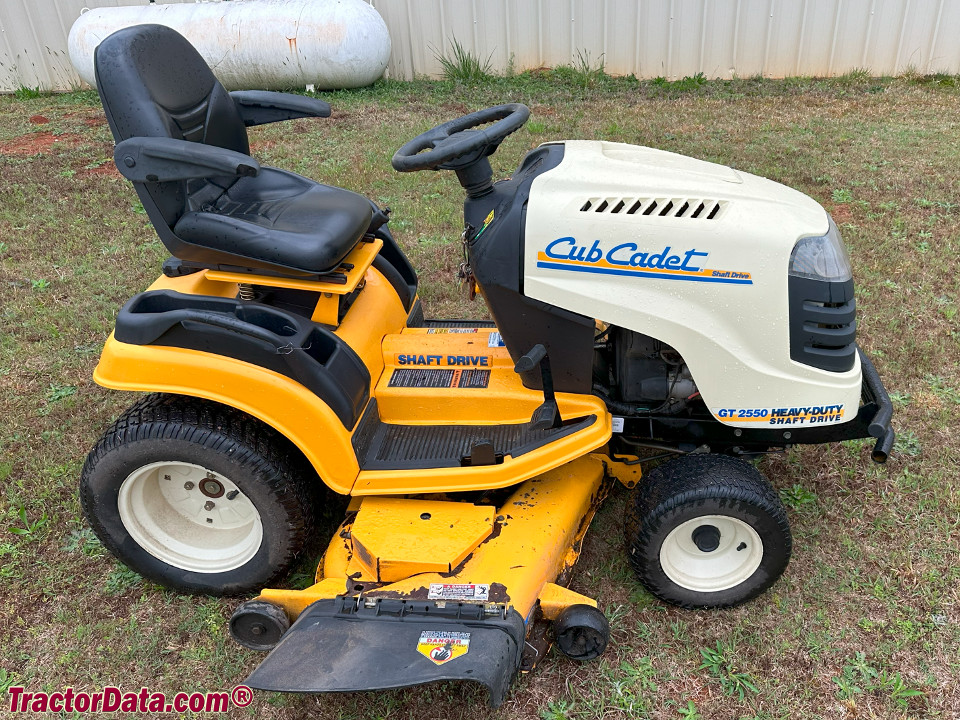

Cub Cadet GT 2550 garden tractor.

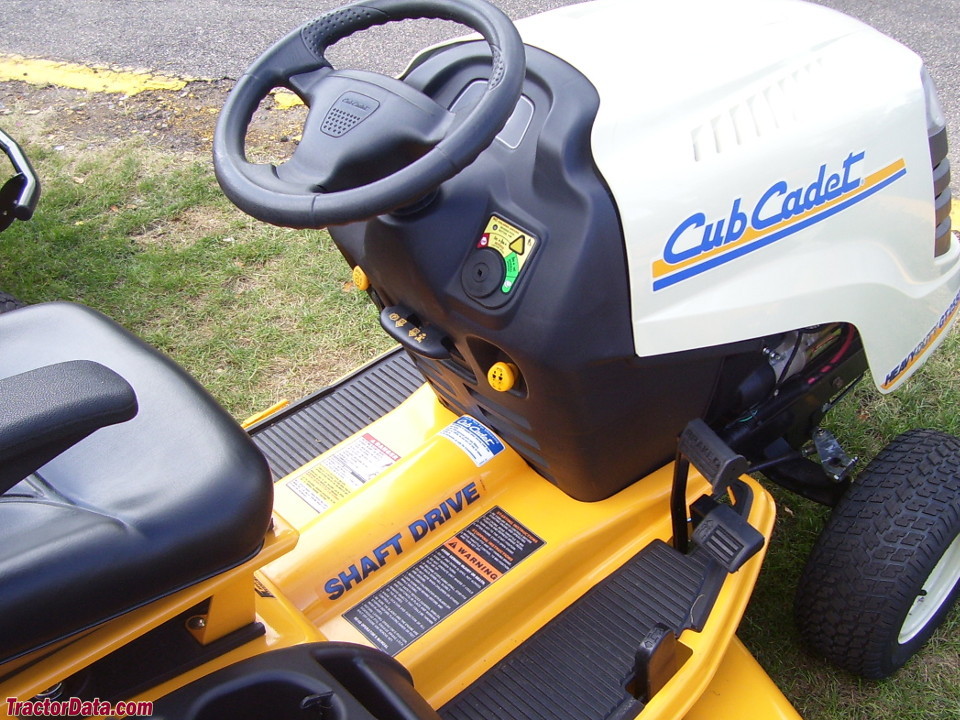

Cub Cadet GT 2550 operator station and controls.
