Cub Cadet GT 2554

The Cub Cadet GT 2554 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Hydro-Gear BDU-10. Operating weight: 846 lbs*Weight with mower deck. 383 kg.

Overview

	2005 - 2010 2500 SeriesGarden tractor
2005 - 2010
2500 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor
Original price	$3,999 (2005 )
	$4,749 (2011 )

Cub Cadet GT 2554 Engine
23HP Kohler 624cc 2-cyl gasoline
Fuel tank	2.25 gal 8.5 L
Engine details ...

Cub Cadet GT 2554 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Dry disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47 inches 119 cm
Weight	846 lbs 383 kg
Front tire	16x6.5-8
Rear tire	23x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	275
Battery volts	12

References
Residential Outdoor Power Equipment 2005 published by Cub Cadet*
Better Residential Outdoor Power Equipment published in 2006, by Cub Cadet
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet
Operator's Manual GT 2554 (769-03717) published in 2007
*Publication contains known errors.

Engine

Engine Detail — 624 cc / 38.1 ci Gasoline

Manufacturer	Kohler CH23S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-twin
Displacement	624 cc 38.1 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	2 qts 1.9 L
Oil change	100 h

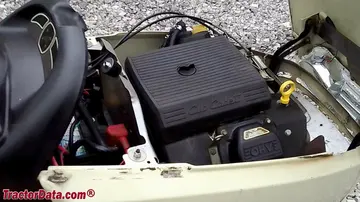

Cub Cadet GT 2554 Engine
Image courtesy of M D

Transmission

Transmission — Hydro-Gear BDU-10

Transmission	Hydro-Gear BDU-10
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.7 qts 5.4 L
Oil type	Drive System Fluid Plus
Oil change	100 h

	Drive System Fluid Plus

Dimensions

Cub Cadet GT 2554 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	23x9.5-12

Dimensions
Wheelbase	47 inches 119 cm
Length	72 inches 182 cm
Height (steering wheel)	42 inches 106 cm
Weight	846 lbs*Weight with mower deck. 383 kg
4-bolt flange rear axle	1 inch diameter 25 mm

Attachments

Attachment overview
54" mid-mount mower deck
Snowblower
Blade
The 2500 series was compatible with the 30-inch tiller (190-002).

54" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual spring-assisted lift
Cutting width	54 inches 137 cm
Cut height	1.5 to 4 inch 3 to 10 cm

Photos

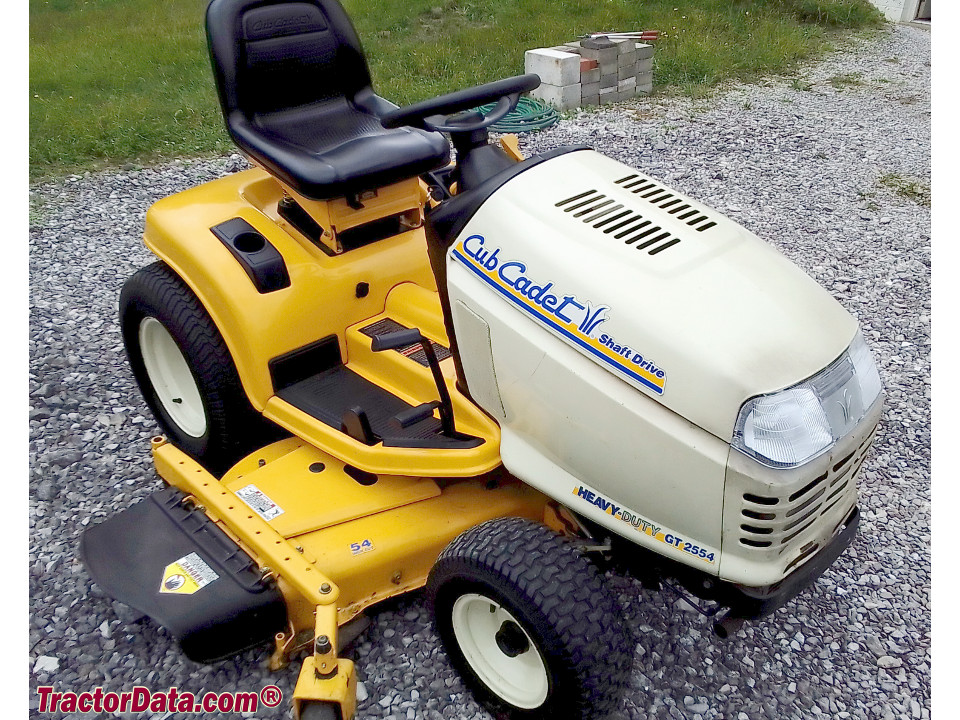

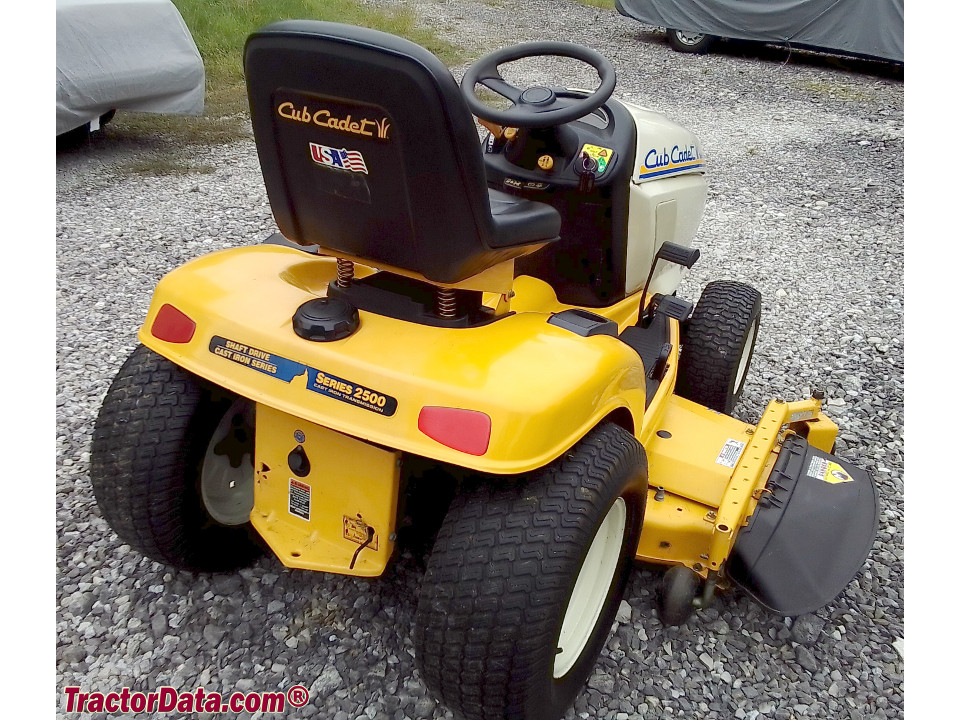

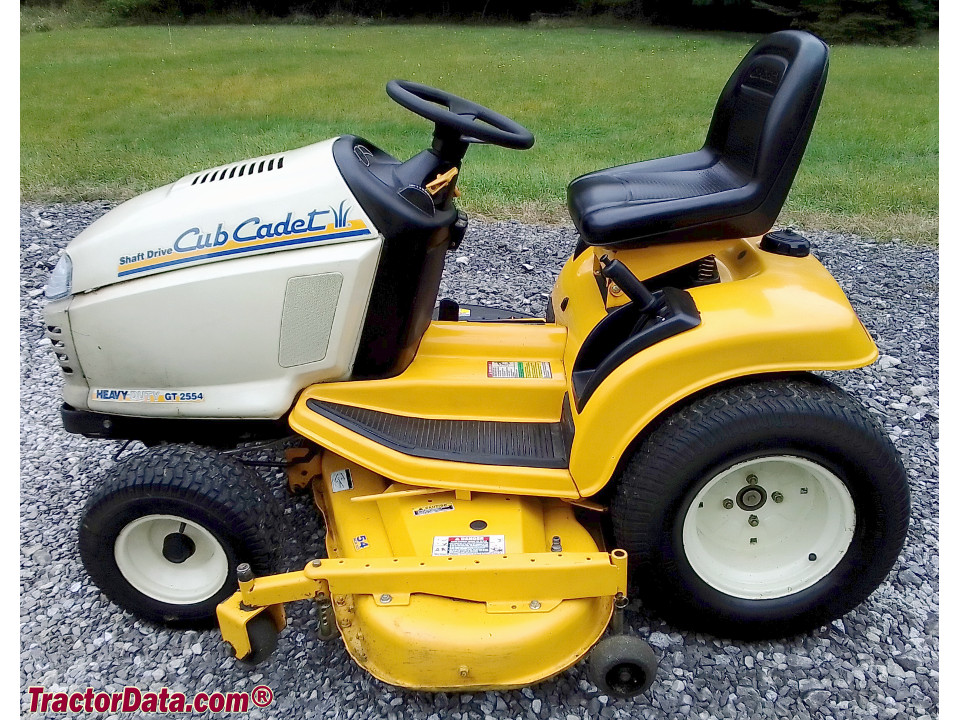

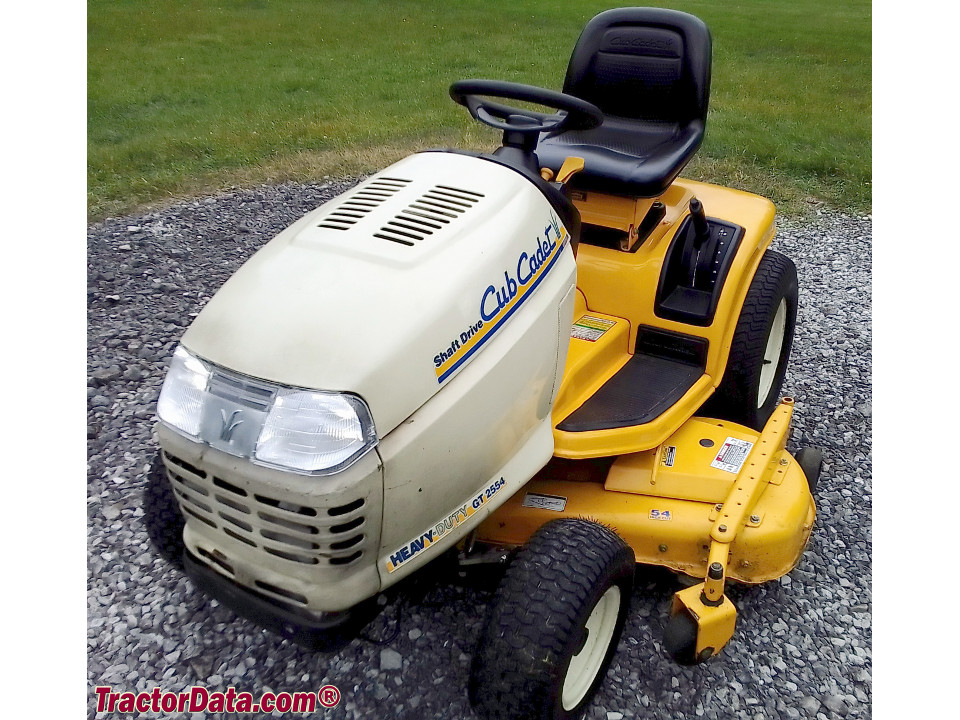

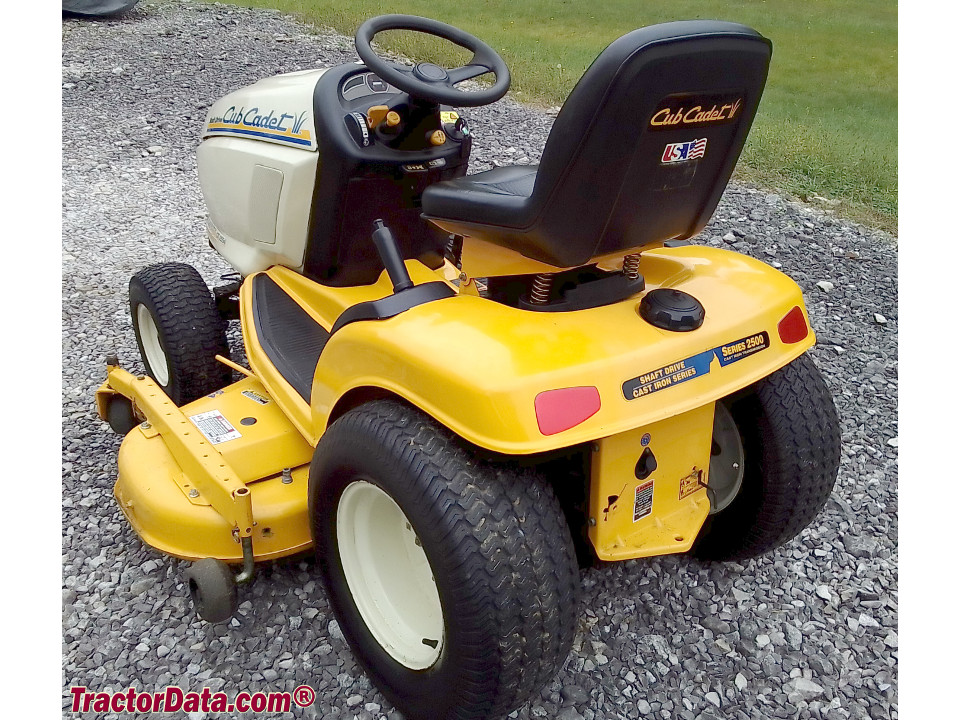

Cub Cadet GT 2554

Cub Cadet GT 2554

Cub Cadet GT 2554

Cub Cadet GT 2554

Cub Cadet GT 2554
