Cub Cadet GTX 2100
The Cub Cadet GTX 2100 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Hydro-Gear BDU-10.
Engine Power
Gasoline (gross): 23 hp / 17.2 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
Hydro-Gear BDU-10
Overview
 | 2011 - 2014
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Cub Cadet GTX 2100 Engine | |
|---|---|
23HP Kohler 673cc 2-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
Cub Cadet GTX 2100 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | electric power |
Disc brakes | |
Open operator station. High-back seat with arm rests and 6-inches of travel. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Front tire | 16x6.5 |
Rear tire | 23x10.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 25 |
Battery CCA | 275 |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 2000 Garden Tractors published in 2014, by Cub Cadet |
Engine
Engine Detail — 673 cc / 41.1 ci Gasoline
Manufacturer | Kohler Command CH680 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 673 cc
41.1 ci |
Bore/Stroke | 3.2x2.6 inches
81 x 66 mm |
Power (gross) | 23 hp
17.2 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Hydro-Gear BDU-10
Transmission | Hydro-Gear BDU-10 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.7 qts
5.4 L |
 | |
Dimensions
Cub Cadet GTX 2100 Tires | |
|---|---|
Lawn/turf front | 16x6.5 |
Lawn/turf rear | 23x10.5 |
Dimensions | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Length | 76 inches
193 cm |
Front axle | Cast-iron |
Rear axle | 1 inch diameter
25 mm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mower deck | |
50" mid-mount mower deck | |
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |

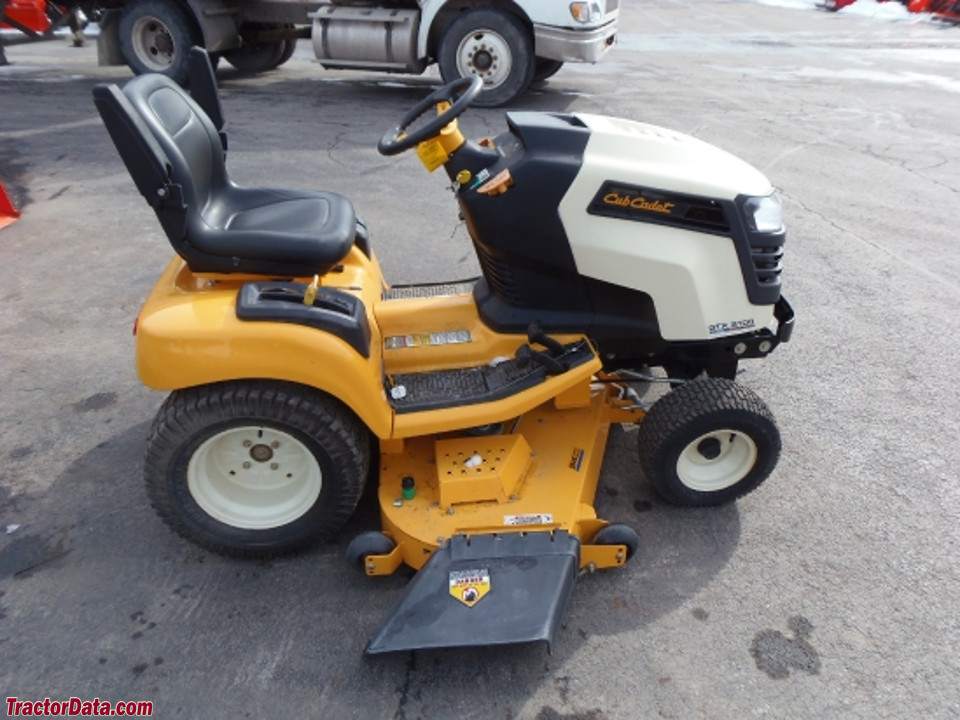

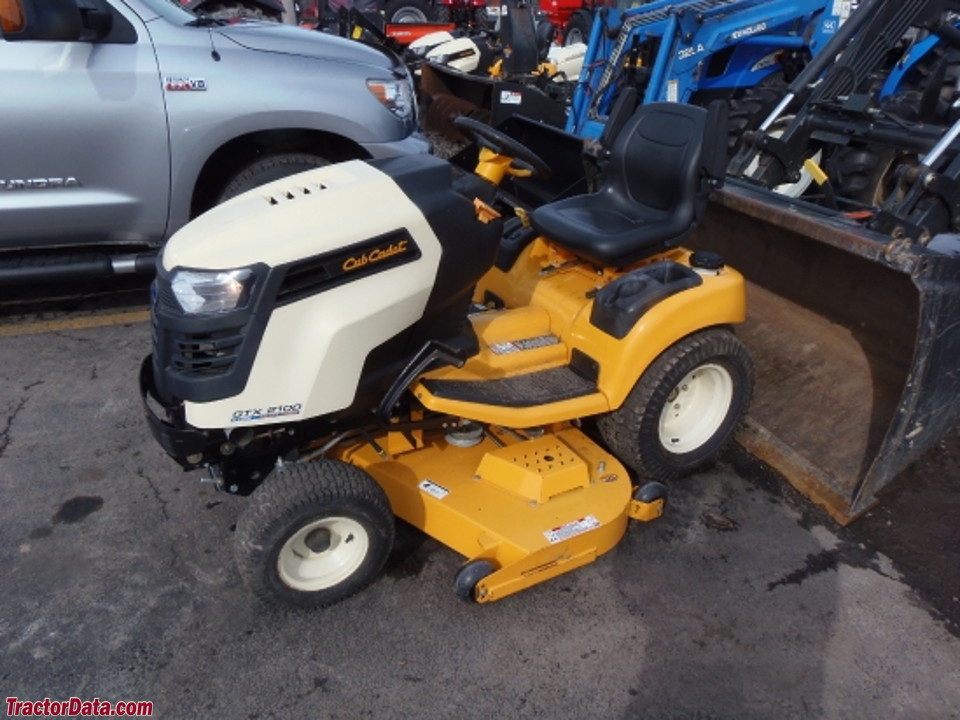

Photos
Cub Cadet GTX 2100
Cub Cadet GTX 2100
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet GTX 2100 based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet GTX 2100.
Estimated Continuous Field Runtime: 2.8 hrs
Approximately 2.8 hours of continuous field operation at ~75% rated power on a full tank (3.3 gal / 12.5 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet GTX 2100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet GTX 2100.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
Direct Competitor Comparison
Compare Cub Cadet GTX 2100 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet GTX 2100
Engine Power:Gasoline (gross): 23 hp / 17.2 kW
★ Baseline Reference
