Cub Cadet GTX 2154LE
The Cub Cadet GTX 2154LE is a tractor produced by Cub Cadet Lawn Tractors. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Hydro-Gear BDU-10.
Engine Power
Gasoline (gross): 23 hp / 17.2 kW
Fuel & Capacities
4.5 gal
17.0 L
Transmission
Hydro-Gear BDU-10
Overview
 | 2011
2000 SeriesGarden tractor
2000 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Original price was $7,399 in 2011 | |
The GTX 2154LE is a Special Edition commemorating the 50th Anniversary of Cub Cadet. The tractor features a custom paint scheme, brush guard, and LED headlights. | |
Cub Cadet GTX 2154LE Engine | |
|---|---|
23HP Kohler 2-cyl gasoline | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Cub Cadet GTX 2154LE Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | electronic power steering |
Open operator station. High-back seat with arm rests and 6.5-inches adjustment. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Front tire | 16x6.5 |
Rear tire | 23x9.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 25 |
Battery CCA | 275 |
Battery volts | 12 |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler Command |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled V-twin OHV |
Power (gross) | 23 hp
17.2 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Hydro-Gear BDU-10
Transmission | Hydro-Gear BDU-10 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.7 qts
5.4 L |
 | |
Dimensions
Cub Cadet GTX 2154LE Tires | |
|---|---|
Lawn/turf front | 16x6.5 |
Lawn/turf rear | 23x9.5 |
Dimensions | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Length | 78 inches
198 cm |
Rear axle | 1 inch diameter
25 mm |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with electric lift | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

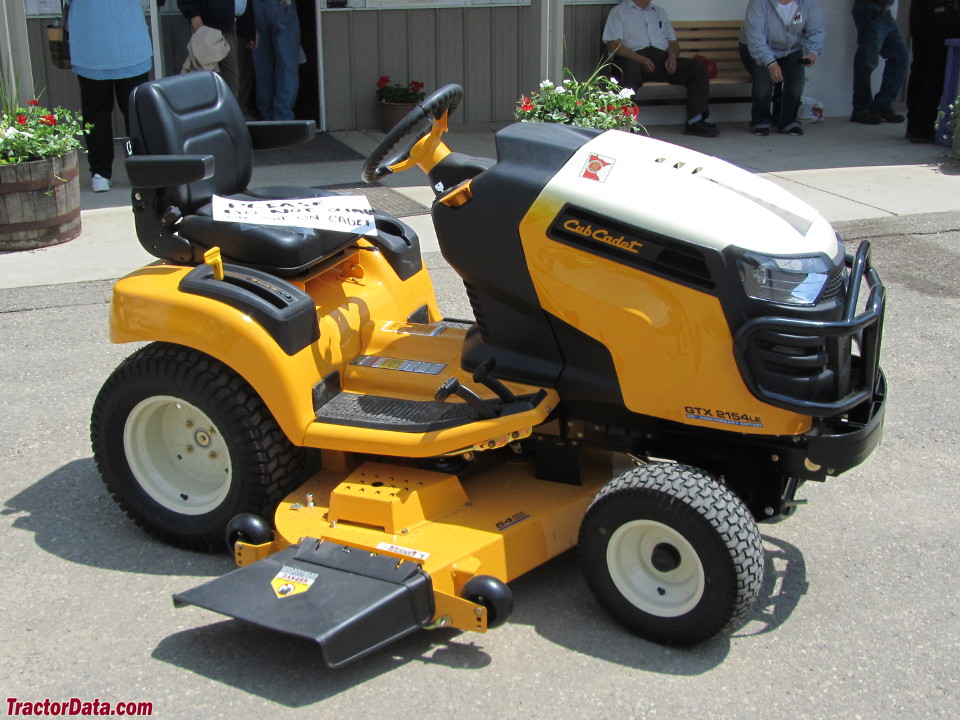

Cub Cadet GTX 2154LE

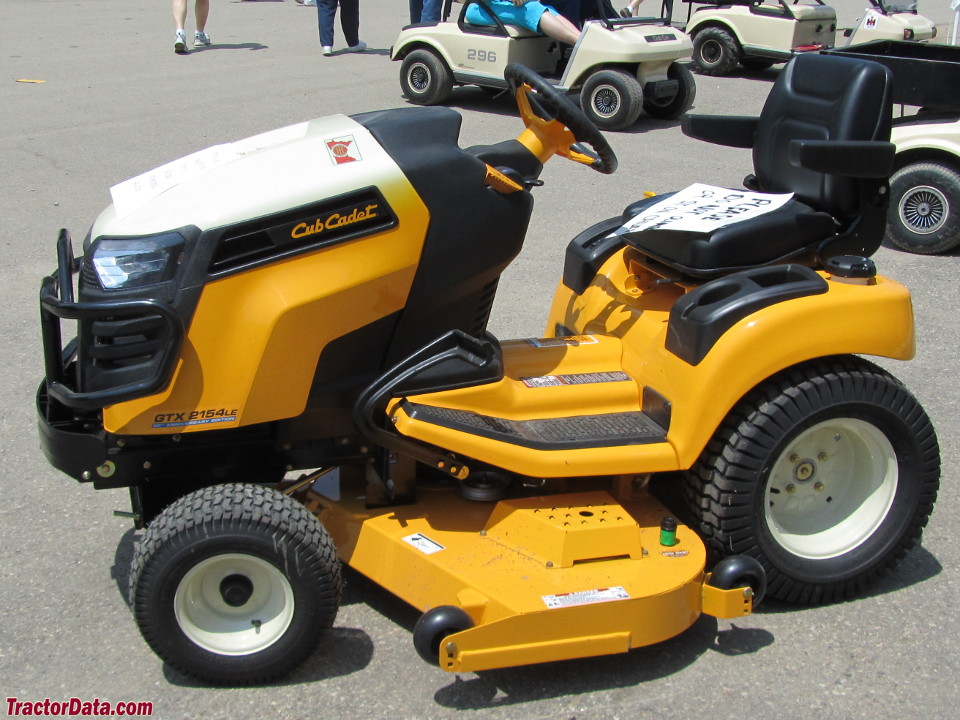

Cub Cadet GTX 2154LE

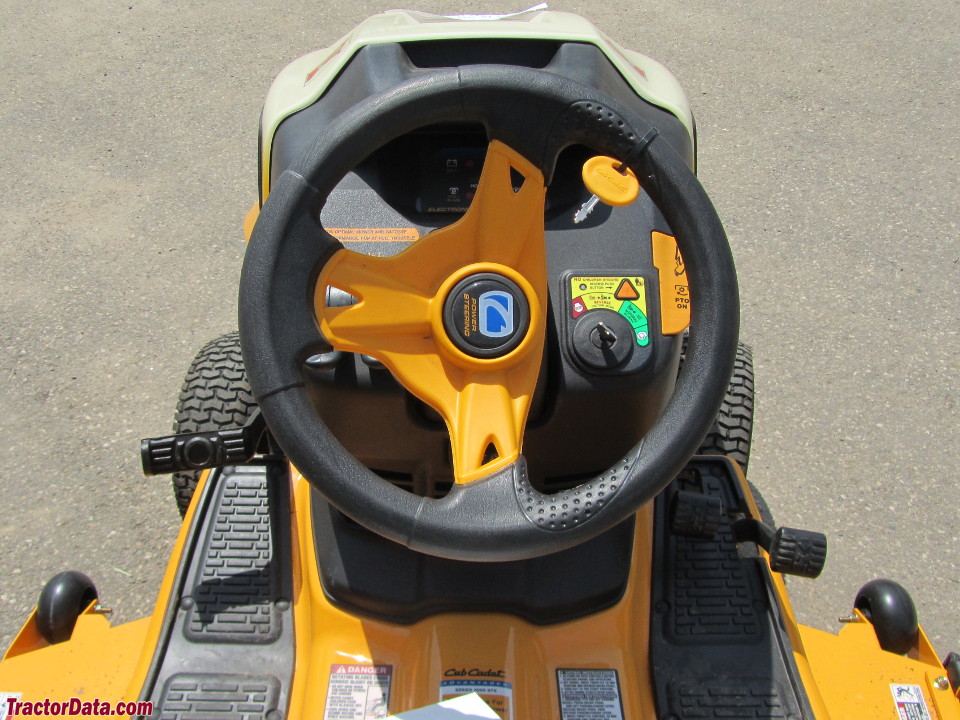

Cub Cadet GTX 2154LE operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet GTX 2154LE based on its 23 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet GTX 2154LE.
Estimated Continuous Field Runtime: 3.8 hrs
Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (4.5 gal / 17 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet GTX 2154LE Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet GTX 2154LE.
Converted Equivalents:
Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
Direct Competitor Comparison
Compare Cub Cadet GTX 2154LE against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet GTX 2154LE
Engine Power:Gasoline (gross): 23 hp / 17.2 kW
★ Baseline Reference
