Cub Cadet LT1040
The Cub Cadet LT1040 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 534 cc 32.6 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 468 lbs*Weight with mower deck. 212 kg.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
3.0 gal
11.4 L
Transmission
infinite forward and reverse
Operating Weight
468 lbs*Weight with mower deck.
212 kg
Cub Cadet Lawn Tractors Cub Cadet LT1040 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2005 - 2008
LT 1000 SeriesLawn tractor |
|---|---|
2005 - 2008 | |
LT 1000 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet LT1040 Engine | |
|---|---|
18HP Kohler 534cc 1-cyl gasoline | |
Fuel tank | 3.0 gal
11.4 L |
Engine details ...  | |
Cub Cadet LT1040 Transmission | |
|---|---|
CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 468 lbs
212 kg |
Front tire | 15x6-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery CCA | 190 |
Battery volts | 12 |
References | |
|---|---|
 | |
Better Residential Outdoor Power Equipment published in 2006, by Cub Cadet | |
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet | |
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet |
Engine
Engine Detail — 534 cc / 32.6 ci Gasoline
Manufacturer | Kohler SV540 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 534 cc
32.6 ci |
Bore/Stroke | 3.50x3.38 inches
89 x 86 mm |
Power (gross) | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.6 qts
1.5 L |
Transmission
Transmission — infinite forward and reverse belt-driven CVT
Type | belt-driven CVT |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet LT1040 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 68 inches
172 cm |
Weight | 468 lbs*Weight with mower deck.
212 kg |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | 6 |
Photos

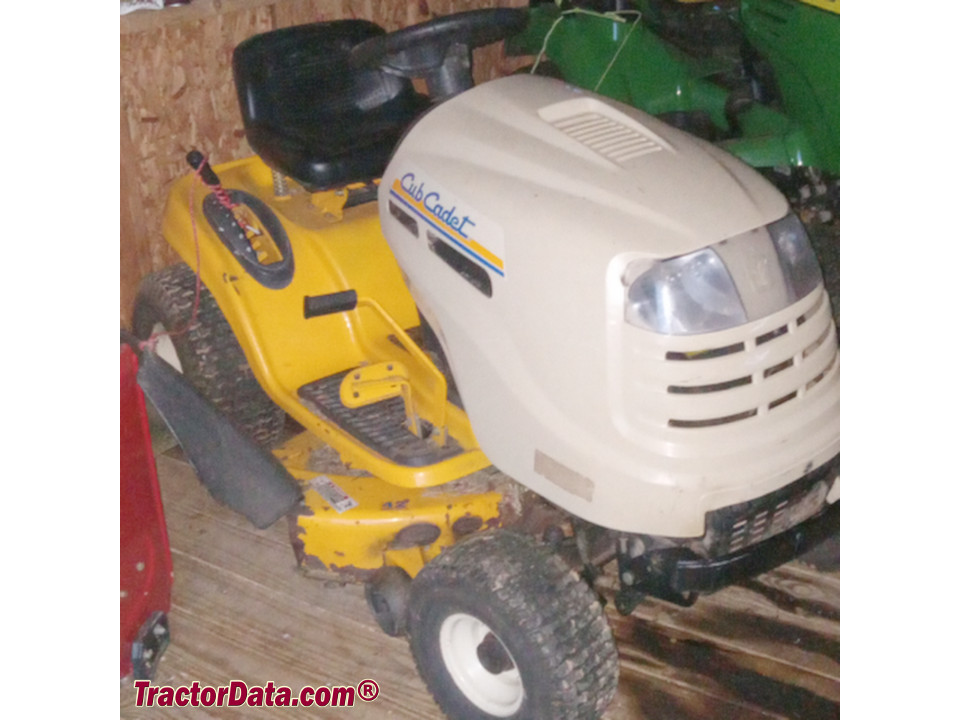

Cub Cadet LT 1040 lawn tractor.
Cub Cadet LT 1040 lawn tractor.
