Cub Cadet LT 2042
The Cub Cadet LT 2042 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: Hydro-Gear BDU-10. Operating weight: 673 lbs 305 kg.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
2.25 gal
8.5 L
Transmission
Hydro-Gear BDU-10
Operating Weight
673 lbs
305 kg
Cub Cadet Lawn Tractors Cub Cadet LT 2042 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2005
2000 SeriesLawn tractor |
|---|---|
2005 | |
2000 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Original price was $2,700 in 2005 | |
Cub Cadet LT 2042 Engine | |
|---|---|
18HP Kohler 624cc 2-cyl gasoline | |
Fuel tank | 2.25 gal
8.5 L |
Engine details ...  | |
Cub Cadet LT 2042 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 673 lbs
305 kg |
Front tire | 15x6-6 |
Rear tire | 20x9-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 275 |
Battery volts | 12 |
References | |
|---|---|
 | |

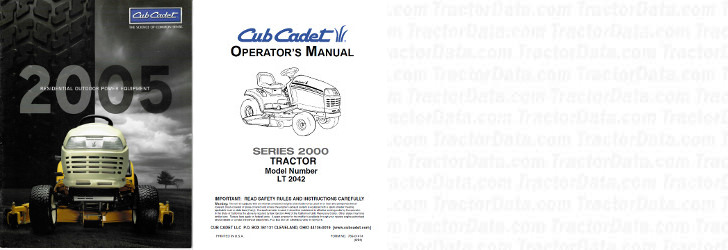

Residential Outdoor Power Equipment 2005 published by Cub Cadet* | |
Operator's Manual LT 2042 (769-01474) published in 2004 | |
*Publication contains known errors. |
Engine
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler CH18S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-twin |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power (gross) | 18 hp
13.4 kW |
Rated RPM | 3350 |
Idle RPM | 1400-3600 |
Torque | 32.2 lb-ft
43.7 Nm |
Torque RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2 qts
1.9 L |
Oil change | 100 h |
Transmission
Transmission — Hydro-Gear BDU-10
Transmission | Hydro-Gear BDU-10 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.7 qts
5.4 L |
Oil type | Drive System Fluid Plus |
Oil change | 100 h |
 | |
Drive System Fluid Plus |
|---|
Dimensions
Cub Cadet LT 2042 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x9-8 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 72 inches
182 cm |
Width | 39 inches
99 cm |
Height (steering wheel) | 42 inches
106 cm |
Weight | 673 lbs
305 kg |
Ground clearance | 6 inches
15 cm |
4-bolt flange rear axle | 1 inch diameter
25 mm |
Front tread | 30 inches
76 cm |
Rear tread | 27.5 inches
69 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet 190-214 |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 2 to 4 inch
5 to 10 cm |
Cut positions | 6 |
Photos

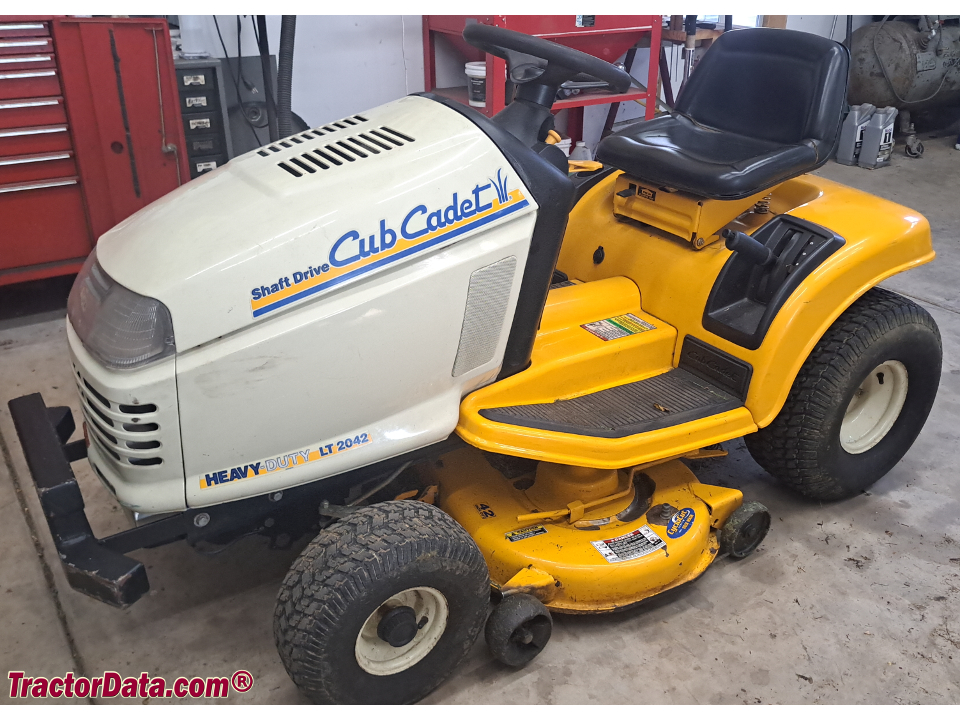

Cub Cadet LT 2042 lawn tractor.
