Cub Cadet LTX 1046

The Cub Cadet LTX 1046 is a tractor produced by Cub Cadet Lawn Tractors. The rated power output is 23 hp 17.2 kW. Transmission: infinite forward and reverse. Operating weight: 513 lbs (with deck) 232 kg.

Overview

	2009 - 2014 LTX 1000 SeriesLawn tractor
2009 - 2014
LTX 1000 Series
Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor
Original price was $2,099 in 2011

Cub Cadet LTX 1046 Engine
23HP Kohler 2-cyl gasoline
Fuel tank	3.3 gal 12.5 L
Engine details ...

Cub Cadet LTX 1046 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual sector and pinion
Open operator station with high-back seat. Six inches travel with 12 positions.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47.5 inches 120 cm
Weight	513 lbs 232 kg
Front tire	15x6
Rear tire	20x8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	235
Battery volts	12

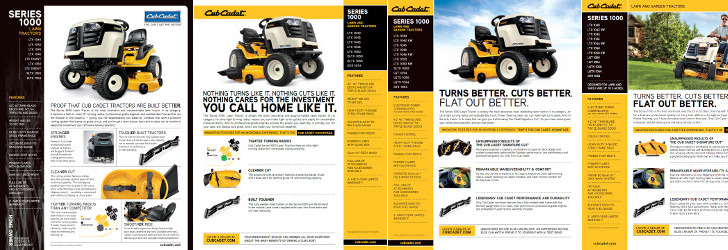

References
Series 1000 published in 2009, by Cub Cadet
Series 1000 published in 2011, by Cub Cadet
Series 1000 published in 2012, by Cub Cadet
Series 1000 published in 2013, by Cub Cadet

Engine

Engine Detail — Gasoline

Manufacturer	Kohler Courage
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled V-twin OHV
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12
Oil capacity	1.9 qts 1.8 L

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	2 qts 1.9 L

Dimensions

Cub Cadet LTX 1046 Tires
Lawn/turf front	15x6
Lawn/turf rear	20x8

Dimensions
Wheelbase	47.5 inches 120 cm
Length	69 inches 175 cm
Weight	513 lbs (with deck) 232 kg

Attachments

Attachment overview
46" mid-mount mower deck
Snowblower
Blade

46" Mower deck
Type	mid-mount Cub Cadet
	2-blade with manual lift
Cutting width	46 inches 116 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	12

Photos

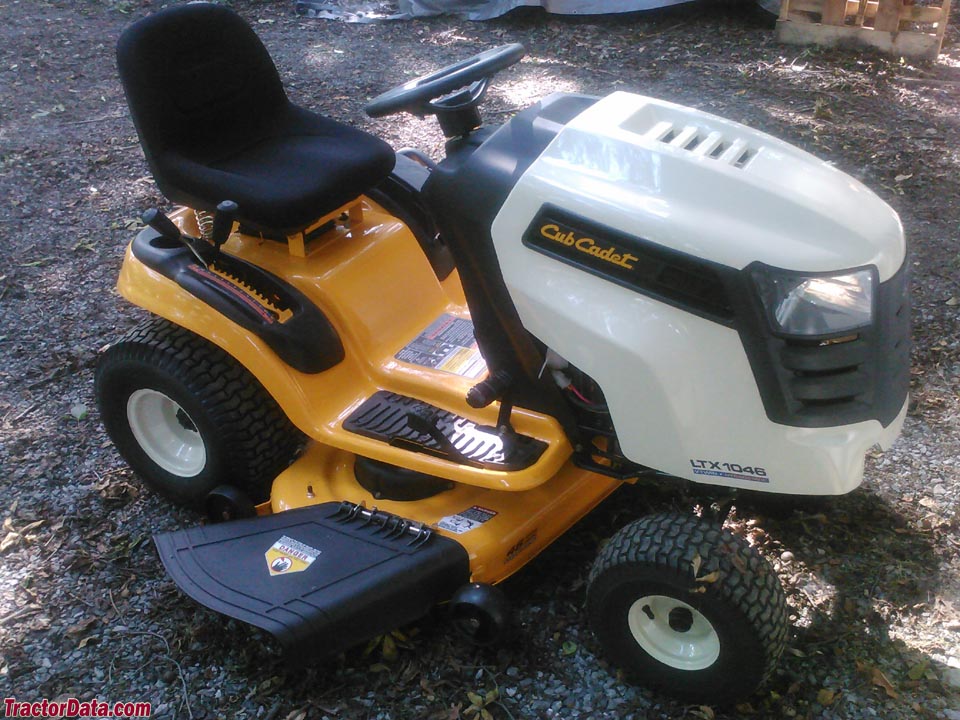

Cub Cadet LTX 1046
