Cub Cadet RZT S54 KW
The Cub Cadet RZT S54 KW is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The rated power output is 23 hp 17.2 kW. Transmission: Hydro-Gear EZT-2200. Operating weight: 635 lbs 288 kg.
Engine Power
23 hp
17.2 kW
Fuel & Capacities
2.8 gal
10.6 L
Transmission
Hydro-Gear EZT-2200
Operating Weight
635 lbs
288 kg
Cub Cadet Lawn Tractors Cub Cadet RZT S54 KW Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2014 -
RZT S SeriesZero-turn mower |
|---|---|
2014 - | |
RZT S Series | |
Zero-turn mower | |
2014 - | |
|---|---|
RZT S Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Original price was $3,500 in 2015 | |
Variants | |
|---|---|
S54KH | Kohler engine |
S54KW | Kawasaki engine |
Cub Cadet RZT S54 Engine | |
|---|---|
23HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 2.8 gal
10.6 L |
Engine details ...  | |
Cub Cadet RZT S54 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | differential power |
Power steering | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 635 lbs
288 kg |
Front tire | 13x5-6 |
Rear tire | 18x9.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 230 |
Battery volts | 12 |
References | |
|---|---|
 | |
RZT S Series published in 2014, by Cub Cadet | |
RZT S Series published in 2015, by Cub Cadet |
Engine
| 2014 -
RZT S SeriesZero-turn mower |
|---|---|
2014 - | |
RZT S Series | |
Zero-turn mower | |
2014 - | |
|---|---|
RZT S Series | |
Zero-turn mower |
Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FR691V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.071x2.992 inches
78 x 76 mm |
Power (gross) | 23 hp
17.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2014 -
RZT S SeriesZero-turn mower |
|---|---|
2014 - | |
RZT S Series | |
Zero-turn mower | |
2014 - | |
|---|---|
RZT S Series | |
Zero-turn mower |
Transmission — Hydro-Gear EZT-2200
Transmission | Hydro-Gear EZT-2200 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2014 -
RZT S SeriesZero-turn mower |
|---|---|
2014 - | |
RZT S Series | |
Zero-turn mower | |
2014 - | |
|---|---|
RZT S Series | |
Zero-turn mower |
Cub Cadet RZT S54 Tires | |
|---|---|
Lawn/turf front | 13x5-6 |
Lawn/turf rear | 18x9.5-8 |
Dimensions | |
|---|---|
Length | 80 inches
203 cm |
Height | 36 inches
91 cm |
Weight | 635 lbs
288 kg |
Attachments
| 2014 -
RZT S SeriesZero-turn mower |
|---|---|
2014 - | |
RZT S Series | |
Zero-turn mower | |
2014 - | |
|---|---|
RZT S Series | |
Zero-turn mower |
54" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade | |
Cutting width | 54 inches
137 cm |
Overall width | 61 inches
154 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

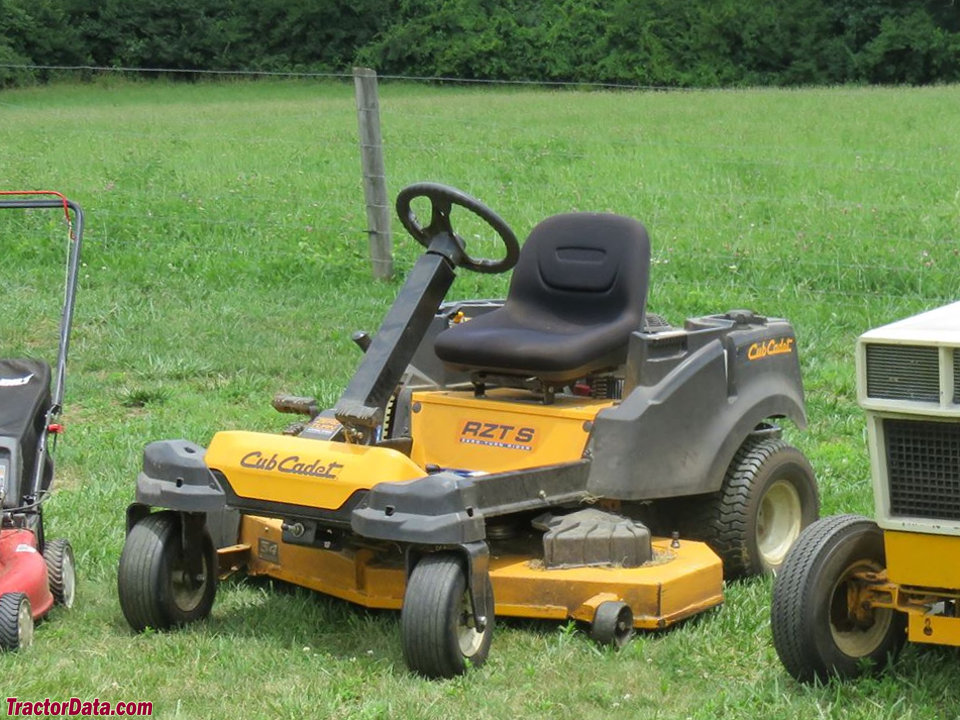

Cub Cadet RZT S54 KW
