Cub Cadet Tank M50 KHS

The Cub Cadet Tank M50 KHS is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Hydro-Gear ZT-2800. Operating weight: 810 lbs 367 kg.

Engine Power

Gasoline (gross): 23 hp / 17.2 kW

Fuel & Capacities

Gasoline

Transmission

Hydro-Gear ZT-2800

Operating Weight

810 lbs 367 kg

Overview

	2005 - 2006 Tank M SeriesZero-turn mower Tank M Series Zero-turn mower

Production
Manufacturer	Cub Cadet (a part of MTD)
Zero-turn mower
Original price was $5,000 in 2006

Cub Cadet Tank M50 Engine
23HP Kohler 673cc 2-cyl gasoline
Engine details ...

Cub Cadet Tank M50 Transmission
hydrostatic
Transmission details ...

Mechanical
Steering	differential power
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	810 lbs 367 kg
Front tire	11x5.0-5
Rear tire	23x9.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer	Kohler CV23S
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	673 cc 41.1 ci
Bore/Stroke	3.15x2.64 inches 80 x 67 mm
Power (gross)	23 hp 17.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear ZT-2800

Transmission	Hydro-Gear ZT-2800
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet Tank M50 Tires
Lawn/turf front	11x5.0-5
Lawn/turf rear	23x9.5-12

Dimensions
Wheelbase	45 inches 114 cm
Length	73 inches 185 cm
Height	48 inches 121 cm
Weight	810 lbs 367 kg
Front tread	39.5 inches 100 cm
Rear tread	45.75 inches 116 cm

Attachments

50" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual spring-assisted lift
Cutting width	50 inches 127 cm
Overall width	64 inches 162 cm
Cut height	1.5 to 4.0 inch 3 to 10 cm

Photos

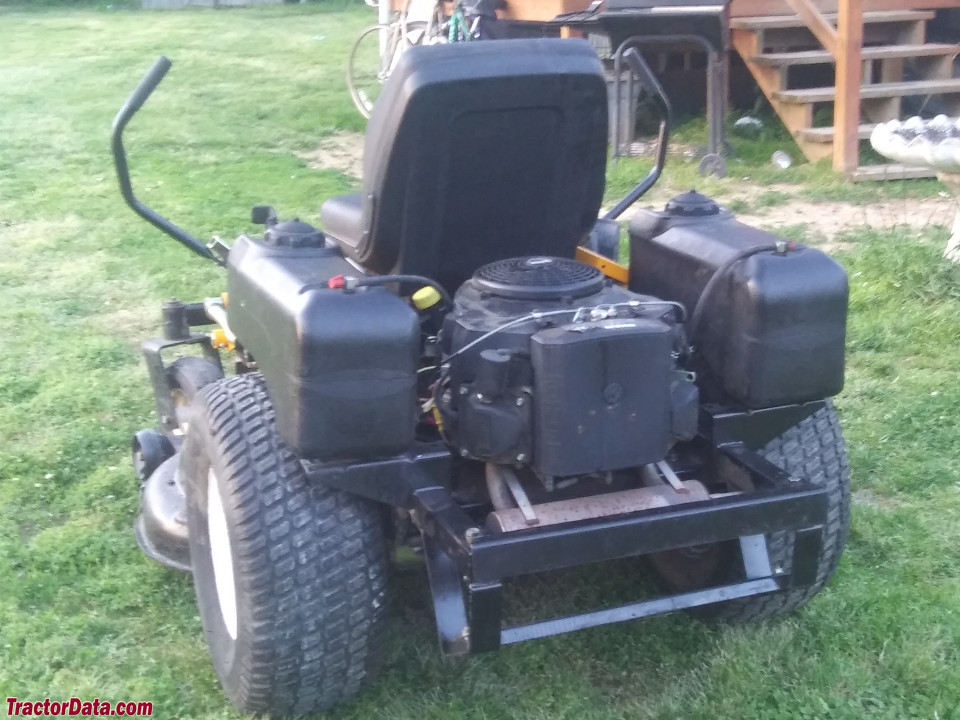

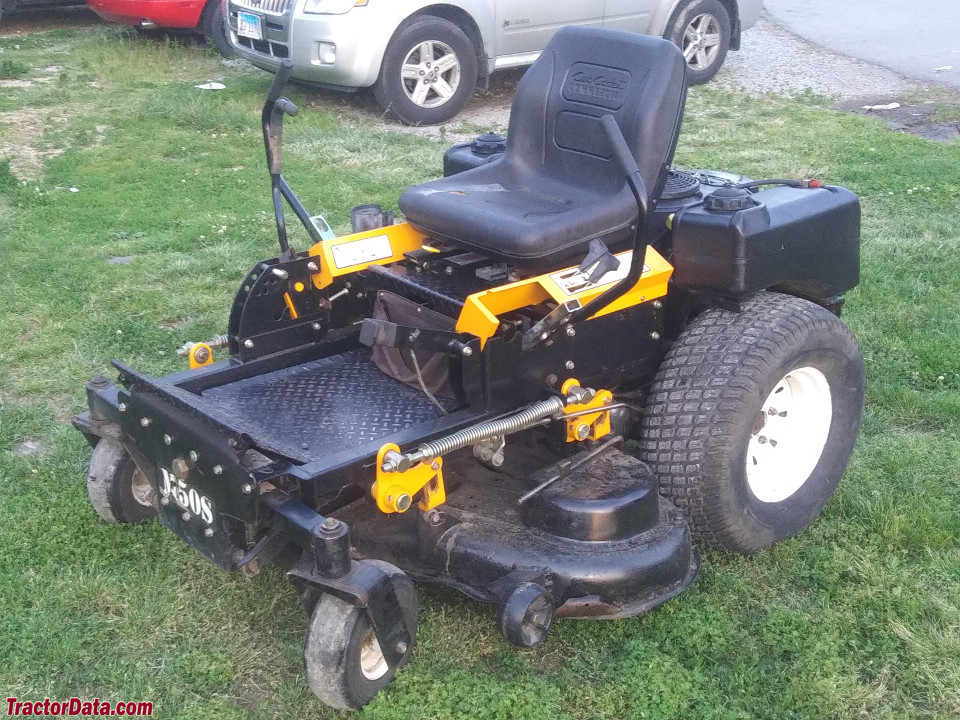

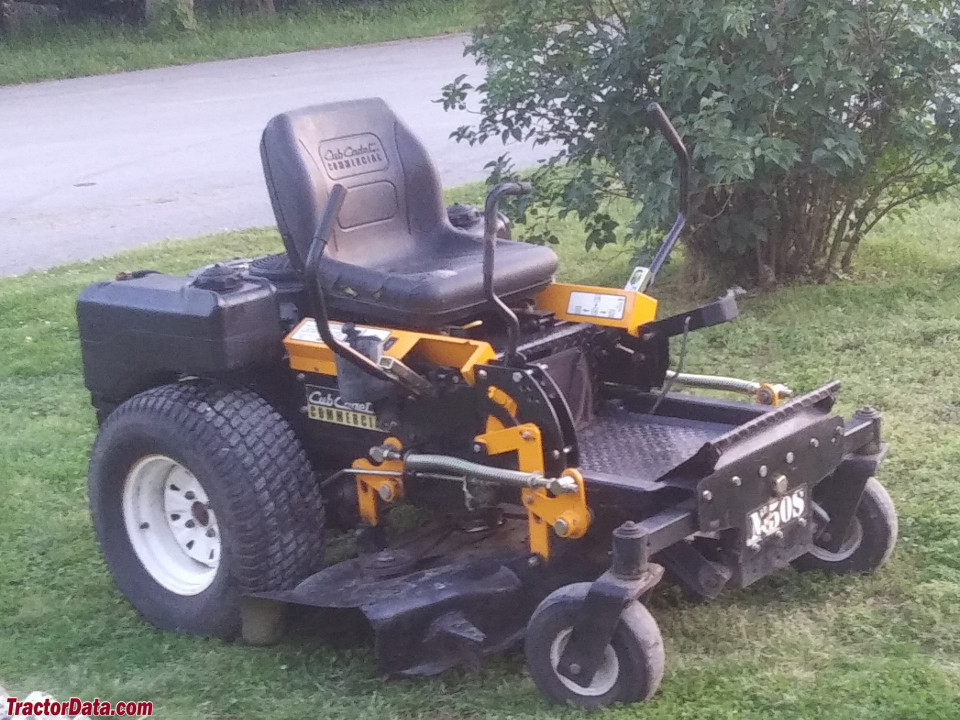

Cub Cadet Tank M50 KHS

Recommended Implements & Sizing Guide

Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet Tank M50 KHS based on its 23 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet Tank M50 KHS.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet Tank M50 KHS Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet Tank M50 KHS.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)23 hp

Kilowatts (kW)17.2 kW

Metric Horsepower (PS / CV)23.3 PS
