Cub Cadet XT1 LT42

The Cub Cadet XT1 LT42 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 596 cc 36.4 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Tuff Torq K46. Operating weight: 410 lbs 185 kg.

Engine Power

Gasoline (gross): 18 hp / 13.4 kW

Fuel & Capacities

3 gal 11.4 L

Transmission

Tuff Torq K46

Operating Weight

410 lbs 185 kg

Overview

	2015 - 2025 Model year 2015-20192020-2025 XT1 Enduro SeriesLawn tractor XT1 Enduro Series Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor
Original price was $1,500 in 2015

Cub Cadet XT1 LT42 Engine
18HP Kohler 596cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Cub Cadet XT1 LT42 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station. Optional sunshade. Optional soft-side weather cab.

Power Take-off (PTO)
Front PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	47 inches 119 cm
Weight	410 lbs 185 kg
Front tire	15x6
Rear tire	20x8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	12
Battery CCA	230
Battery volts	12

References

New XT Enduro Series Lawn and Garden Tractors published in 2015, by Cub Cadet
Lawn and Garden Tractors published in 2016, by Cub Cadet

Engine

Engine Detail — 596 cc / 36.4 ci Gasoline

Manufacturer	Kohler SV541
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	596 cc 36.4 ci
Bore/Stroke	3.7x3.4 inches 94 x 86 mm
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12
Oil capacity	1.3 qts 1.2 L

Transmission

Transmission — Tuff Torq K46

Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet XT1 LT42 Tires
Lawn/turf front	15x6
Lawn/turf rear	20x8

Dimensions
Wheelbase	47 inches 119 cm
Length	68 inches 172 cm
Height	42.5 inches 107 cm
Weight	410 lbs 185 kg
Front axle	Cast-iron

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount Cub Cadet
	2-blade with manual with spring-assist lift
Cutting width	42 inches 106 cm
Overall width	50 inches 127 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	12

Photos

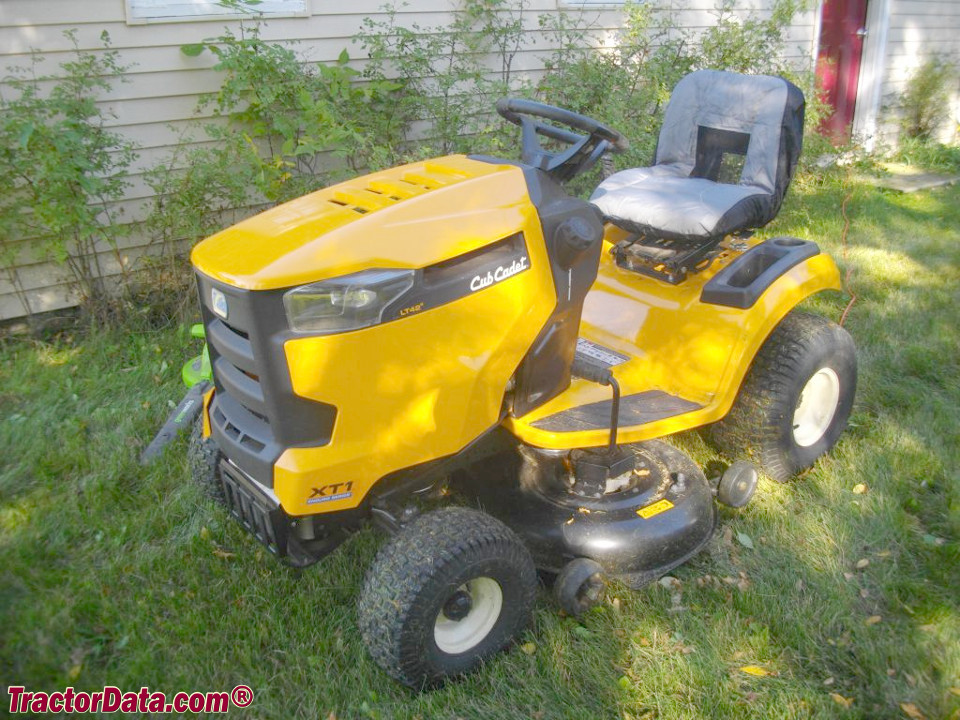

Cub Cadet Tank XT1 LT42 lawn tractor.

Cub Cadet Tank XT1 LT42 lawn tractor, left side.

Recommended Implements & Sizing Guide

Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet XT1 LT42 based on its 18 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet XT1 LT42.

Estimated Continuous Field Runtime: 3.2 hrs

Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet XT1 LT42 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet XT1 LT42.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)18 hp

Kilowatts (kW)13.4 kW

Metric Horsepower (PS / CV)18.2 PS
