Cub Cadet Z42
The Cub Cadet Z42 is a tractor produced by Cub Cadet Lawn Tractors. The rated power output is 15 hp 11.2 kW. Transmission: infinite forward and reverse. Operating weight: 706 lbs 320 kg.
Engine Power
15 hp
11.2 kW
Fuel & Capacities
5.5 gal
20.8 L
Transmission
infinite forward and reverse
Operating Weight
706 lbs
320 kg
Cub Cadet Lawn Tractors Cub Cadet Z42 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Cub Cadet Z42 Engine | |
|---|---|
15HP Kohler 1-cyl gasoline | |
Fuel tank | 5.5 gal
20.8 L |
Engine details ...  | |
Cub Cadet Z42 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 706 lbs
320 kg |
Front tire | 9x3.5 |
Rear tire | 20x7-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 380 |
Battery volts | 12 |
References | |
|---|---|
 | |
Z Series Mowers published in 1998, by Cub Cadet | |
New Z Series Mowers published in 1998, by Cub Cadet | |
Z Series Mowers published in 1999, by Cub Cadet |
Engine
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
Engine Detail — Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 15 hp
11.2 kW |
Starter | electric |
Starter volts | 12 |

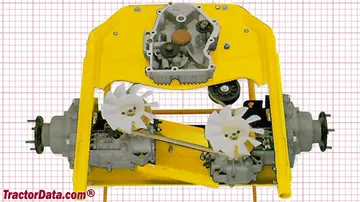

Transmission
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 6 qts
5.7 L |
 | |
Cub Cadet Z42 Transmission | |
|---|---|
 |
Dimensions
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
Cub Cadet Z42 Tires | |
|---|---|
Lawn/turf front | 9x3.5 (early) |
11x4 (late) | |
Lawn/turf rear | 20x7-8 |
Dimensions | |
|---|---|
Weight | 706 lbs
320 kg |
Attachments
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade | |
Cutting width | 42 inches
106 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos
Cub Cadet Z42 tractor photo
