Cub Cadet Z48
The Cub Cadet Z48 is a tractor produced by Cub Cadet Lawn Tractors. The rated power output is 18 hp 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 766 lbs 347 kg.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
5.5 gal
20.8 L
Transmission
infinite forward and reverse
Operating Weight
766 lbs
347 kg
Cub Cadet Lawn Tractors Cub Cadet Z48 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Cub Cadet Z48 Engine | |
|---|---|
18HP Kohler 2-cyl gasoline | |
Fuel tank | 5.5 gal
20.8 L |
Engine details ...  | |
Cub Cadet Z48 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 766 lbs
347 kg |
Front tire | 9x3.5 |
Rear tire | 20x9-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 380 |
Battery volts | 12 |
References | |
|---|---|
 | |
Z Series Mowers published in 1998, by Cub Cadet | |
New Z Series Mowers published in 1998, by Cub Cadet | |
Z Series Mowers published in 1999, by Cub Cadet |
Engine
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
Engine Detail — Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Power (gross) | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |

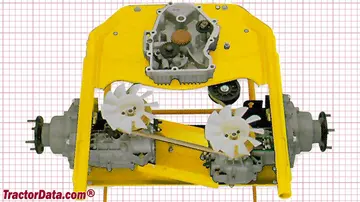

Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 6 qts
5.7 L |
 | |
Cub Cadet Z48 Transmission | |
|---|---|
 |
Dimensions
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
Cub Cadet Z48 Tires | |
|---|---|
Lawn/turf front | 9x3.5 (early) |
11x4 (late) | |
Lawn/turf rear | 20x9-8 |
Dimensions | |
|---|---|
Weight | 766 lbs
347 kg |
Attachments
| 1998 - 2000
Zero-turn mower |
|---|---|
1998 - 2000 | |
Zero-turn mower | |
1998 - 2000 | |
|---|---|
Zero-turn mower |
48" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade | |
Cutting width | 48 inches
121 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos
Cub Cadet Z48 zero-turn mower.
