Cub Cadet Z54L
The Cub Cadet Z54L is a tractor produced by Cub Cadet Lawn Tractors. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 773 lbs 350 kg.
Overview
 | 1999 - 2000
Z SeriesZero-turn mower
Z Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Cub Cadet Z54L Engine | |
|---|---|
18HP Kawasaki 2-cyl gasoline | |
Fuel tank | 5.5 gal
20.8 L |
Engine details ...  | |
Cub Cadet Z54L Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 773 lbs
350 kg |
Front tire | 9x3.5 |
Rear tire | 20x9-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 380 |
Battery volts | 12 |
References | |
|---|---|
 | |
New Z Series Mowers published in 1998, by Cub Cadet | |
Z Series Mowers published in 1999, by Cub Cadet |
Engine
Engine Detail — Gasoline
Manufacturer | Kawasaki |
Fuel Type | Gasoline |
Configuration | 2-cylinder, liquid-cooled vertical-shaft V-Twin |
Power (gross) | 18 hp
13.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 6 qts
5.7 L |
 | |

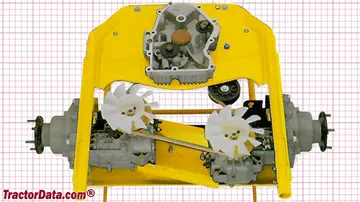

Cub Cadet Z54L Transmission | |
|---|---|
 |
Dimensions
Cub Cadet Z54L Tires | |
|---|---|
Lawn/turf front | 9x3.5 (early) |
11x4 (late) | |
Lawn/turf rear | 20x9-8 |
Dimensions | |
|---|---|
Weight | 773 lbs
350 kg |
Attachments
54" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |

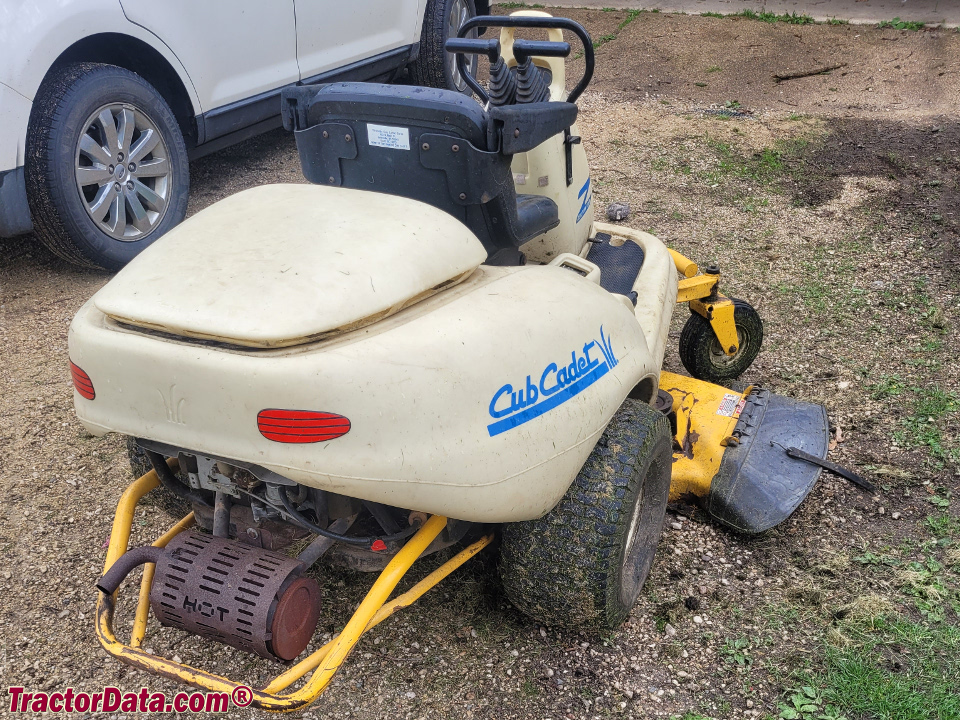

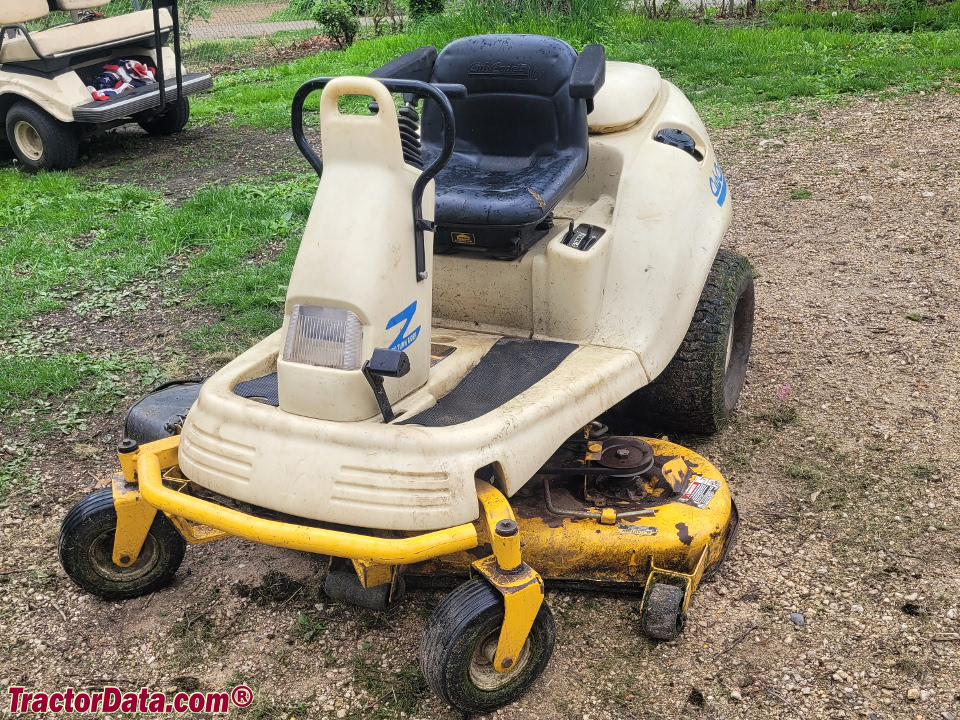

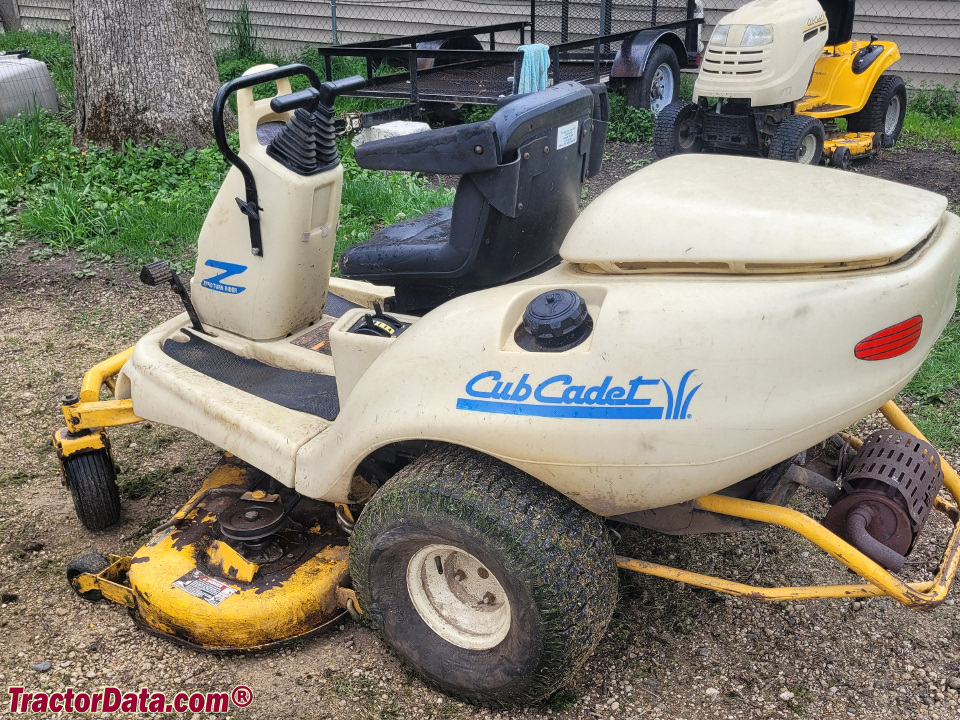

Photos
Cub Cadet Z54L
Cub Cadet Z54L
Cub Cadet Z54L
Cub Cadet Z54L
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet Z54L based on its 18 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet Z54L.
Estimated Continuous Field Runtime: 5.9 hrs
Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (5.5 gal / 20.8 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Cub Cadet Lawn Tractors Cub Cadet Z54L Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet Z54L.
Converted Equivalents:
Direct Competitor Comparison
Compare Cub Cadet Z54L against same-era industry alternatives in the same horsepower class.
Cub Cadet Z54L
International Harvester Type A 15HP
