Deutz D 8006

The Deutz D 8006 is a tractor produced by Deutz. It is equipped with a 345 ci 5.7 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 16 forward and 7 reverse. Operating weight: 7086 lbs 3214 kg.

Overview

	1967 - 1978 06 Series
1967 - 1978
06 Series

Production
Manufacturer	Deutz

Variants
D8006	2WD
D8006A	4WD

Deutz D 8006 Engine
Deutz 5.7L 6-cyl diesel
Fuel tank	24.3 gal 92.0 L
Engine details ...

Deutz D 8006 Transmission
16-speed
Transmission details ...

Deutz D 8006 Power
Engine	80 hp 59.7 kW
Drawbar (tested)	69.48 hp 51.8 kW
PTO (tested)	85.51 hp 63.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential hydraulic shoe brakes
ROPS optional. Cab optional with heat.

Hydraulics
Type	open center
Pump flow	9.2 gpm 34.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at ends)	7,937 lbs 3600 kg

Power Take-off (PTO)
Rear PTO	live
	independent OptOptional
Rear PTO Type	540/1000
	1000

Dimensions & Tires
Wheelbase	100.4 inches 255 cm
Weight	7086 lbs 3214 kg
Front tire	7.50-20
2WD Rear tire	16.9-34
Full dimensions and tires ...

Belt Pulley
Diameter	11 inches 27 cm
Width	7 inches 17 cm
RPM	1390
Speed	4000 ft/min 1219.20 meters/min

References
Tractor D 8006 published by Deutz

Engine

Engine Detail — 345 ci / 5.7 L Diesel

Manufacturer	Deutz F6L 912
Fuel Type	Diesel
Configuration	6-cylinder, air-cooled
Displacement	345 ci 5.7 L
Bore/Stroke	3.937x4.72 inches 100 x 120 mm
Power	80 hp 59.7 kW
Air cleaner	dry
Compression	17:1
Rated RPM	2100
Starter volts	12

Transmission

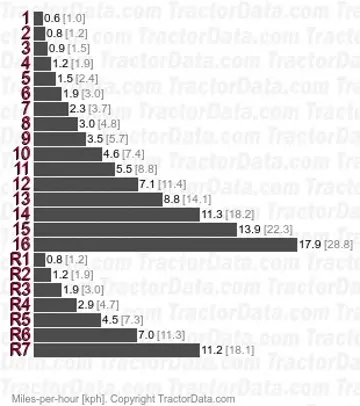

Transmission — 16 forward and 7 reverse

Gears	16 forward and 7 reverse

Dimensions

Deutz D 8006 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 16.9-34
4WD Standard tires (ag)	Front: 12.5-20. Rear: 16.9-34

Dimensions
Wheelbase	100.4 inches 255 cm
2WD Length	163.6 inches 415 cm
4WD Length	161 inches 408 cm
Width	78.5 inches 199 cm
Height (ROPS)	107.9 inches 274 cm
Height (exhaust)	108.3 inches 275 cm
Operating weight	7086 lbs 3214 kg
Ballasted weight	11060 lbs 5016 kg
Ground clearance	20.5 inches 52 cm

Tests

Nebraska Tractor Test 1074
Diesel 16-speed 2WD August 17 - September 2, 1971 Link: Nebraska Tractor Test 1074 file
PTO performance
Power at rated engine speed	85.51 hp 63.8 kW
Fuel use	5.1 gal/hour 19.3 l/hour
Power at rated PTO speed	82.18 hp 61.3 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Drawbar performance
Max power	69.48 hp 51.8 kW
Fuel use	5.0 gal/hour 18.9 l/hour
Gear 11 used for power test.
Max pull	8,898 lbs 4036 kg
Gear 8 used for pull test.

Photos

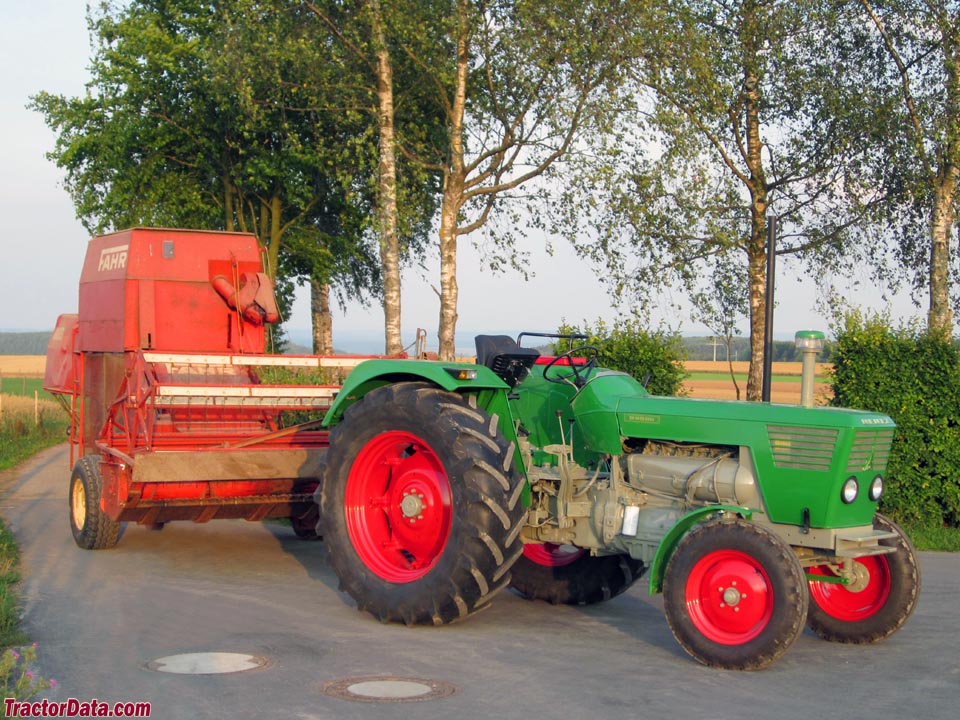

Deutz D8006 with Fahr combine.

Deutz D8006A with Fahr combine.
