Deutz D 7506
The Deutz D 7506 is a tractor produced by Deutz. It is equipped with a 344.9 ci 5.7 L engine. The rated power output is 75 hp 55.9 kW. Transmission: 16 forward and 7 reverse. Operating weight: 6647 to 7441 pounds.
Engine Power
75 hp
55.9 kW
Fuel & Capacities
24.3 gal
92.0 L
Transmission
16 forward and 7 reverse
Operating Weight
6647 to 7441 pounds
Deutz D 7506 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1968 - 1970
06 SeriesUtility tractor |
|---|---|
1968 - 1970 | |
06 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Deutz |
Utility tractor | |
Variants | |
|---|---|
D7506 | 2WD |
D7506A | 4WD |
Deutz D 7506 Engine | |
|---|---|
Deutz 5.7L 6-cyl diesel | |
Fuel tank | 24.3 gal
92.0 L |
Engine details ...  | |
Deutz D 7506 Power | |
|---|---|
Engine | 75 hp
55.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 9.2 gpm
34.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 6615 lbs
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 100.4 inches
255 cm |
Weight | 6647 to 7441 pounds |
Front tire | 7.50-20 |
2WD Rear tire | 18.4/15-30 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 344.9 ci / 5.7 L Diesel
Manufacturer | Deutz F6L 912 |
Fuel Type | Diesel |
Configuration | 6-cylinder, air-cooled |
Displacement | 344.9 ci
5.7 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 75 hp
55.9 kW |
Rated RPM | 2100 |
Starter type | electric |
Transmission
Transmission options | |
|---|---|
12-speed synchromesh | |
16-speed creeper |

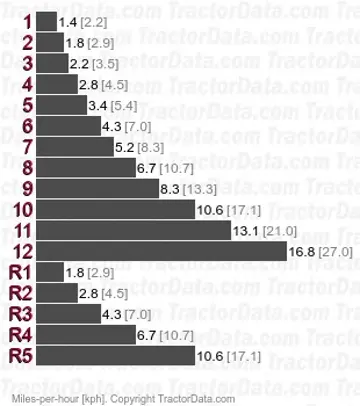

Transmission — 12 forward and 5 reverse synchromesh
Type | synchromesh |
Gears | 12 forward and 5 reverse |
With 18.4/15-30 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 16 forward and 7 reverse |
 | |
Dimensions
Deutz D 7506 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 18.4/15-30 |
4WD Standard tires (ag) | Front: 12.5-20. Rear: 18.4/15-30 |
4WD Optional tires (ag) | Front: 10.5-20. Rear: 16.9/14-30 |
Dimensions | |
|---|---|
Wheelbase | 100.4 inches
255 cm |
Length | 161 inches
408 cm |
Width | 78.4 inches
199 cm |
Height (exhaust) | 94.5 inches
240 cm |
2WD Ground clearance | 20.5 inches
52 cm |
4WD Ground clearance | 12.4 inches
31 cm |
2WD Front tread | 55.9 to 75.6 inches
141 to 192 cm |
Front tread | 64.7 inches
164 cm |
Rear tread | 59.8 to 71.7 inches
151 to 182 cm |
Deutz D 7506 Weight | |
|---|---|
2WD | 6647 lbs
3015 kg |
4WD | 7441 lbs
3375 kg |
4WD Max capacity | 12787 lbs
5800 kg |
