Deutz F4L514 4
The Deutz F4L514 4 is a tractor produced by Deutz. It is equipped with a 324.8 ci 5.3 L engine. The listed engine power is Diesel (listed): 59.2 hp / 44.1 kW. Transmission: ZF. Operating weight: 6669 lbs 3025 kg.
Engine Power
Diesel (listed): 59.2 hp / 44.1 kW
Fuel & Capacities
Diesel
Transmission
ZF
Operating Weight
6669 lbs
3025 kg
Overview
 | 1952 - 1966
FL Series |
|---|
Production | |
|---|---|
Manufacturer | Deutz |
Built in Germany | |
Variants | |
|---|---|
F4L514/4 | 60 PS |
F4L514/5 | 65 PS |
Deutz F4L514 Engine | |
|---|---|
Deutz 5.3L 4-cyl diesel | |
Engine details ...  |
Deutz F4L514 Transmission | |
|---|---|
7-speed gear | |
Transmission details ...  |
Deutz F4L514 Power | |
|---|---|
Engine | 59.2 hp
44.1 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Drum brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 96.1 inches
244 cm |
Weight | 6669 lbs
3025 kg |
Front tire | 6.50-20 |
Rear tire | 13-30 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 13.4 inches
34 cm |
Width | 8.7 inches
22 cm |
RPM | 1390 |
Engine
Engine Detail — 324.8 ci / 5.3 L Diesel
Manufacturer | Deutz |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 324.8 ci
5.3 L |
Bore/Stroke | 4.33x5.51 inches
110 x 140 mm |
Power | 59.2 hp
44.1 kW |
Rated RPM | 1650 |
Starter | electric |
Starter volts | 24 |
Transmission
Transmission — ZF
Transmission | ZF |
Type | gear |
Gears | 7 forward and 2 reverse |
 | |
Dimensions
Deutz F4L514 Tires | |
|---|---|
Ag front | 6.50-20 |
Ag rear | 13-30 |
Dimensions | |
|---|---|
Wheelbase | 96.1 inches
244 cm |
Length | 153.5 inches
389 cm |
Width | 80.9 inches
205 cm |
Height | 78.7 inches
199 cm |
Weight | 6669 lbs
3025 kg |
Clearance (front axle) | 18.3 inches
46 cm |
Rear tread | 60.8 to 70.9 inches
154 to 180 cm |
Photos

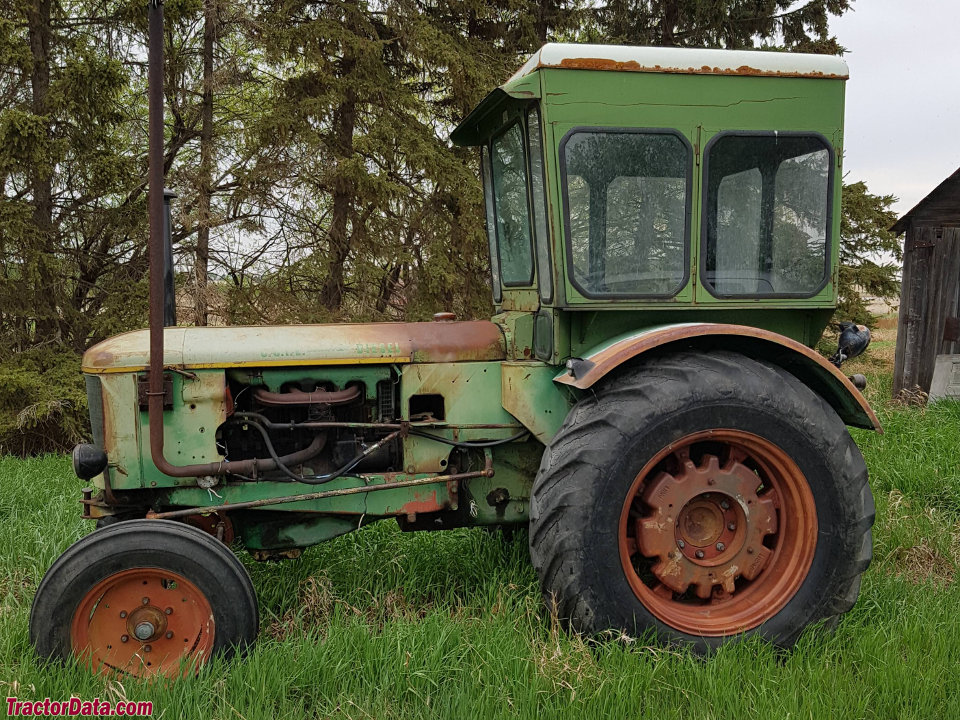

Deutz F4L514, left side.
Deutz F4L514, right side.
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz F4L514 4 based on its 59.2 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz F4L514 4.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Deutz F4L514 4 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz F4L514 4.
Converted Equivalents:
Horsepower (HP)59.2 hp
Kilowatts (kW)44.1 kW
Metric Horsepower (PS / CV)60 PS
Direct Competitor Comparison
Compare Deutz F4L514 4 against same-era industry alternatives in the same horsepower class.
Current Model
Deutz
Deutz F4L514 4
Engine Power:Diesel (listed): 59.2 hp / 44.1 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 485
Engine Power:53.6
Production Years:1981 - 1985
