Deutz-Allis 6250

The Deutz-Allis 6250 is a tractor produced by Deutz Allis. It is equipped with a 172 ci 2.8 L engine. The rated power output is 54 hp 40.3 kW. Transmission: Dual-Split. Operating weight: 6018 to 6459 pounds.

Overview

	1986 - 1990 6200 SeriesUtility tractor
1986 - 1990
6200 Series
Utility tractor

Production
Manufacturer	Deutz-Allis
Utility tractor
Built in Germany

Variants
6250	utility
6250V	narrow
DX 3.30	similar Deutz-Fahr model

Deutz-Allis 6250 Engine
Deutz 2.8L 3-cyl diesel
Engine details ...

Deutz-Allis 6250 Power
Engine	54 hp 40.3 kW
PTO (claimed)	51 hp 38.0 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical disc brakes
Four-post ROPS

Capacity
Fuel	20 gal 75.7 L
Hydraulic system	4 gal 15.1 L
	7.5 galOptOptional 28.4 L

Hydraulics
Type	open center
Capacity	4 gal 15.1 L
	7.5 galOptOptional 28.4 L
Pressure	2538 psi 175.0 bar
Valves	1 to 3
Pump flow	5291 gpm 20026.4 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	5291 lbs 2399 kg
Front Hitch	II
Front lift	2205 lbs 1000 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Front PTO	independent
Front PTO Type	1000

Dimensions & Tires
2WD Wheelbase	79 inches 200 cm
4WD Wheelbase	82 inches 208 cm
Weight	6018 to 6459 pounds
Front tire	7.50-16
2WD Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
6240/6250/6260 published in 1985, by Deutz-Allis

Engine

Engine Detail — 172 ci / 2.8 L Diesel

Manufacturer	Deutz F3L 912
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled
Displacement	172 ci 2.8 L
Bore/Stroke	3.94x4.72 inches 100 x 120 mm
Power	54 hp 40.3 kW
Rated RPM	2500
Starter volts	12
Oil capacity	8.5 qts 8.0 L

Transmission

Transmission options
8-speed partially synchronized
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 4 reverse
Clutch	dry disc
Four synchronized gears (1-4) in two ranges, plus reverse range.

Transmission — Dual-Split

Transmission	Dual-Split
Type	two-speed power shift
Gears	16 forward and 8 reverse

Dimensions

Deutz-Allis 6250 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9-30
4WD Standard tires (ag)	Front: 11.2-24. Rear: 16.9-30
2WD Optional tires (ag)	Front: 10.00-16. Rear: 16.9-24

Dimensions
2WD Wheelbase	79 inches 200 cm
4WD Wheelbase	82 inches 208 cm
Width	82.3 inches 209 cm
Height (ROPS)	91.3 inches 231 cm
2WD Weight	6018 lbs 2729 kg
4WD Weight	6459 lbs 2929 kg
Rear tread	59 to 78.8 inches 149 to 200 cm

Photos

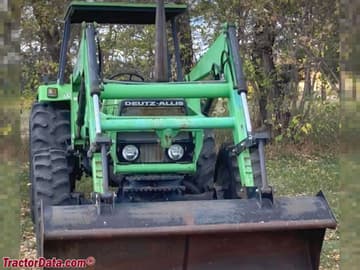

Deutz-Allis 6250
