Deutz-Allis 6240
The Deutz-Allis 6240 is a tractor produced by Deutz Allis. It is equipped with a 172.5 ci 2.8 L engine. The listed engine power is Diesel (listed): 46 hp / 34.3 kW. Transmission: Dual-Split. Operating weight: 5776 to 6173 pounds.
Engine Power
Diesel (listed): 46 hp / 34.3 kW
Fuel & Capacities
20 gal
75.7 L
Transmission
Dual-Split
Operating Weight
5776 to 6173 pounds
Overview
 | 1986 - 1990
6200 SeriesUtility tractor
6200 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Deutz-Allis |
Utility tractor | |
Built in Germany | |
Original price | $18,100 |
Variants | |
|---|---|
DX 3.10 | similar Deutz-Fahr model |
Deutz-Allis 6240 Engine | |
|---|---|
Deutz 2.8L 3-cyl diesel | |
Engine details ...  |
Deutz-Allis 6240 Power | |
|---|---|
Engine | 46 hp
34.3 kW |
PTO (claimed) | 43 hp
32.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Mechanical drum brakes | |
Four-post ROPS | |
Capacity | |
|---|---|
Fuel | 20 gal
75.7 L |
Hydraulic system | 4 gal
15.1 L |
7.5 galOptOptional
28.4 L | |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 4 gal
15.1 L |
7.5 galOptOptional
28.4 L | |
Pressure | 2538 psi
175.0 bar |
Valves | 1 to 3 |
Pump flow | 9.8 gpm
37.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 4189 lbs
1900 kg |
Front Hitch | II |
Front lift | 2205 lbs
1000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Front PTO | independent |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 79 inches
200 cm |
4WD Wheelbase | 82 inches
208 cm |
Weight | 5776 to 6173 pounds |
Front tire | 7.50-16 |
2WD Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
6240/6250/6260 published in 1985, by Deutz-Allis |
Engine
Engine Detail — 172.5 ci / 2.8 L Diesel
Manufacturer | Deutz F3L 912 |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 172.5 ci
2.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 46 hp
34.3 kW |
Rated RPM | 2150 |
Starter volts | 12 |
Oil capacity | 8.5 qts
8.0 L |
Transmission
Transmission options | |
|---|---|
8-speed partially synchronized | |
16-speed two-speed power shift |
Transmission — 8 forward and 4 reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Four synchronized gears (1-4) in two ranges, plus reverse range. | |
Transmission — Dual-Split
Transmission | Dual-Split |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Dimensions
Deutz-Allis 6240 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-16. Rear: 14.9-28 |
4WD Standard tires (ag) | Front: 10.5-20. Rear: 14.9-28 |
2WD Optional tires (ag) | Front: 7.50-16. Rear: 14.9-24 |
Dimensions | |
|---|---|
2WD Wheelbase | 79 inches
200 cm |
4WD Wheelbase | 82 inches
208 cm |
Width | 82.3 inches
209 cm |
Height (ROPS) | 88.5 inches
224 cm |
2WD Weight | 5776 lbs
2619 kg |
4WD Weight | 6173 lbs
2800 kg |
Rear tread | 59 to 75 inches
149 to 190 cm |
Photos

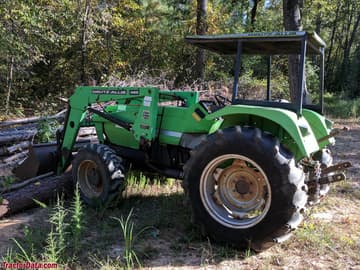

Deutz-Allis 6240
Deutz-Allis 6240
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz Allis Deutz-Allis 6240 based on its 46 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Allis Deutz-Allis 6240.
Estimated Continuous Field Runtime: 8.4 hrs
Approximately 8.4 hours of continuous field operation at ~75% rated power on a full tank (20 gal / 75.7 L).
Estimated 75% Load Fuel Burn~2.4 gal/hr (9.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Deutz Allis Deutz-Allis 6240 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Allis Deutz-Allis 6240.
Converted Equivalents:
Horsepower (HP)46 hp
Kilowatts (kW)34.3 kW
Metric Horsepower (PS / CV)46.6 PS
