Deutz-Allis 9170
The Deutz-Allis 9170 is a tractor produced by Deutz Allis. It is equipped with a 584 ci 9.6 L engine. The listed engine power is 173.37 hp 129.3 kW. Transmission: 18 forward and 6 reverse. Operating weight: 15640 to 17465 pounds.
Engine Power
173.37 hp
129.3 kW
Fuel & Capacities
90 gal
340.7 L
Transmission
18 forward and 6 reverse
Operating Weight
15640 to 17465 pounds
Overview
 | 1989 - 1990
9100 SeriesRow-Crop tractorWhite built
9100 Series
Row-Crop tractor
White built |
|---|
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | White |
Row-Crop tractor | |
Built in Coldwater, Ohio, USA | |
Deutz-Allis 9170 Engine | |
|---|---|
Deutz 9.6L 6-cyl diesel | |
Fuel tank | 90 gal
340.7 L |
Engine details ...  | |
Deutz-Allis 9170 Transmission | |
|---|---|
18-speed partial power shift | |
Transmission details ...  |
Deutz-Allis 9170 Power | |
|---|---|
PTO (claimed) | 172 hp
128.3 kW |
Drawbar (tested) | 155.86 hp
116.2 kW |
PTO (tested) | 173.37 hp
129.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | front and rear |
Power steering | |
Differential hydraulic wet disc brakes | |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2275 psi
156.9 bar |
Valves | 2 or 3 |
Pump flow | 23 gpm
87.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 (1.75) |
Engine RPM | 1000@2168 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 119 inches
302 cm |
4WD Wheelbase | 115 inches
292 cm |
Weight | 15640 to 17465 pounds |
Front tire | 11.00-16 |
2WD Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
9150/9170/9190 published in 1988, by Deutz-Allis | |
9100 Series Tractors published in 1991, by Deutz-Allis |
Engine
Engine Detail — 584 ci / 9.6 L Diesel
Manufacturer | Deutz BF6L513R |
Configuration | turbocharged diesel, 6-cylinder, air-cooled |
Displacement | 584 ci
9.6 L |
Bore/Stroke | 4.921x5.118 inches
125 x 130 mm |
Air cleaner | dual paper elements |
Compression | 15.8:1 |
Rated RPM | 2300 |
Starter volts | 12 |
Oil capacity | 24.3 qts
23.0 L |
Transmission
Transmission — 18 forward and 6 reverse partial power shift
Type | partial power shift |
Gears | 18 forward and 6 reverse |
Clutch | 330mm discs |
Six speeds with three-speed power shift. | |
With 18.4R38 rear tires. | |
 | |
Dimensions
Deutz-Allis 9170 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 11.00-16. Rear: 18.4R38 |
4WD Standard tires (ag) | Front: 14.9R28. Rear: 18.4R38 |
Dimensions | |
|---|---|
2WD Wheelbase | 119 inches
302 cm |
4WD Wheelbase | 115 inches
292 cm |
Width | 96 inches
243 cm |
Height | 122 inches
309 cm |
Deutz-Allis 9170 Weight | |
|---|---|
2WD Shipping | 15640 lbs
7094 kg |
4WD Shipping | 16040 lbs
7275 kg |
Operating | 17465 lbs (duals)
7922 kg |
Ballasted | 21480 lbs
9743 kg |
Tests
Nebraska Tractor Test 1634 | |
|---|---|
Diesel 18-speed 2WD
October 31 - November 15, 1989
Link: Nebraska Tractor Test 1634 file | |
PTO performance | |
Power at rated engine speed | 173.37 hp
129.3 kW |
Fuel use | 11.0 gal/hour
41.6 l/hour |
Power at rated PTO speed | 178.70 hp
133.3 kW |
Fuel use | 10.7 gal/hour
40.5 l/hour |
Drawbar performance | |
Max power | 155.86 hp
116.2 kW |
Fuel use | 11.1 gal/hour
42.0 l/hour |
Gear 3D used for power test. | |
Max pull | 19,027 lbs
8630 kg |
Gear 2D used for pull test. | |
Photos

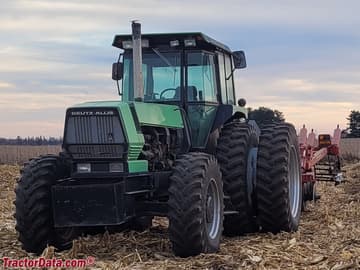

Deutz-Allis 9170, front-left view.
Deutz-Allis 9170, left side.
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz Allis Deutz-Allis 9170 based on its 173.37 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Allis Deutz-Allis 9170.
Estimated Continuous Field Runtime: 10 hrs
Approximately 10 hours of continuous field operation at ~75% rated power on a full tank (90 gal / 340.7 L).
Estimated 75% Load Fuel Burn~9 gal/hr (34.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Deutz Allis Deutz-Allis 9170 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Allis Deutz-Allis 9170.
Converted Equivalents:
Horsepower (HP)173.4 hp
Kilowatts (kW)129.3 kW
Metric Horsepower (PS / CV)175.8 PS
