Deutz-Fahr Agrotron 135

The Deutz-Fahr Agrotron 135 is a tractor produced by Deutz Fahr. It is equipped with a 436 ci 7.1 L engine. The listed engine power is Diesel (listed): 135 hp / 100.7 kW. Transmission: 40 forward and reverse. Operating weight: 11818 lbs 5360 kg.

Engine Power

Diesel (listed): 135 hp / 100.7 kW

Fuel & Capacities

68.7 gal 260.0 L

Transmission

40 forward and reverse

Operating Weight

11818 lbs 5360 kg

Overview

	1997 - 2000 Agrotron SeriesRow-Crop tractor Agrotron Series Row-Crop tractor

Production
Manufacturer	Deutz-Fahr
Row-Crop tractor

Deutz-Fahr Agrotron 135 Engine
Deutz 7.1L 6-cyl diesel
Fuel tank	68.7 gal 260.0 L
Engine details ...

Deutz-Fahr Agrotron 135 Power
Engine	135 hp 100.7 kW

Mechanical
Four-wheel drive
Cab standard with air-conditioning.

Hydraulics
Pump flow	21.9 gpm 82.9 lpm

Tractor hitch
Rear Type	III/II
Rear lift	20371 lbs 9240 kg
Front Hitch	II
Front lift	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Front PTO Type	1000

Dimensions & Tires
Wheelbase	109.1 inches 277 cm
Weight	11818 lbs 5360 kg
Front tire	16.8R28
Rear tire	20.8R38
Full dimensions and tires ...

References

Agrotron published in 1997, by Deutz-Fahr

Engine

Engine Detail — 436 ci / 7.1 L Diesel

Manufacturer	Deutz BF6L1013E
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	436 ci 7.1 L
Bore/Stroke	4.252x5.12 inches 108 x 130 mm
Power	135 hp 100.7 kW
Rated RPM	2300

Transmission

Transmission options
24-speed four-speed power shift
40-speed creeper

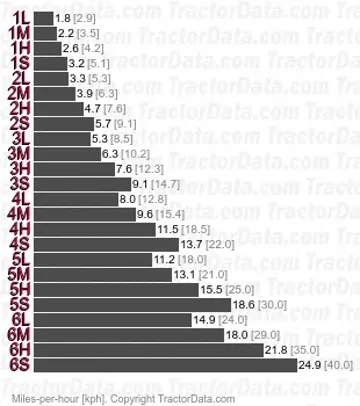

Transmission — 24 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	24 forward and reverse
Six synchronized gears in four power shift ranges.
With 20.8R38 rear tires.

Transmission

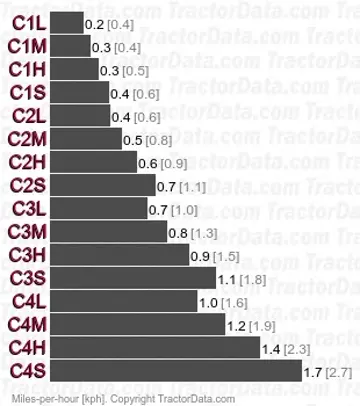

Type	creeper
Gears	40 forward and reverse

Dimensions

Deutz-Fahr Agrotron 135 Tires
Ag front	16.8R28
Ag rear	20.8R38

Dimensions
Wheelbase	109.1 inches 277 cm
Length	105.5 inches 267 cm
Height (cab)	116.3 inches 295 cm
Weight	11818 lbs 5360 kg
Ground clearance	22.4 inches 56 cm

Photos

Deutz-Fahr Agrotron 135 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Agrotron 135 based on its 135 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Agrotron 135.

Estimated Continuous Field Runtime: 9.8 hrs

Approximately 9.8 hours of continuous field operation at ~75% rated power on a full tank (68.7 gal / 260.1 L).

Estimated 75% Load Fuel Burn~7 gal/hr (26.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Agrotron 135 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Agrotron 135.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)135 hp

Kilowatts (kW)100.7 kW

Metric Horsepower (PS / CV)136.9 PS
