Deutz-Fahr Agrotron 150.7

The Deutz-Fahr Agrotron 150.7 is a tractor produced by Deutz Fahr. It is equipped with a 436.1 ci 7.1 L engine. The listed engine power is Diesel (gross): 163.6 hp / 122.0 kW. Transmission: 40 forward and reverse. Operating weight: 12963 lbs 5880 kg.

Engine Power

Diesel (gross): 163.6 hp / 122.0 kW

Fuel & Capacities

80.6 gal 305.1 L

Transmission

40 forward and reverse

Operating Weight

12963 lbs 5880 kg

Overview

	2005 - 2007 Agrotron Series

Production
Manufacturer	Deutz-Fahr

Deutz-Fahr Agrotron 150.7 Engine
Deutz 7.1L 6-cyl diesel
Fuel tank	80.6 gal 305.1 L
Engine details ...

Deutz-Fahr Agrotron 150.7 Power
Engine (gross)	163.6 hp 122.0 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2901 psi 200.0 bar
Valves	2 to 4
Pump flow	21.9 gpm (open) 82.9 lpm
	31.7 gpm (closed) 120.0 lpm

Tractor hitch
Rear Type	III/II
Rear lift	20283 lbs 9200 kg
Front Hitch	II OptOptional
Front lift	8818 lbs 3999 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2200
	540E@1600
	1000@2200
	1000E@1600
Front PTO	independent OptOptional
Clutch	1000:2130
Front PTO Type	1000

Dimensions & Tires
Wheelbase	108.9 inches 276 cm
Weight	12963 lbs 5880 kg
Front tire	16.9R28
Rear tire	20.8R38
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	95
Battery volts	12
Battery AH	143
	170 OptOptional

Engine

Engine Detail — 436.1 ci / 7.1 L Diesel

Manufacturer	Deutz BF6M1013EC
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	436.1 ci 7.1 L
Bore/Stroke	4.25x5.12 inches 108 x 130 mm
Rated Power (gross)	163.6 hp 122.0 kW
Rated RPM	2350
Torque	433.7 lb-ft 588.1 Nm
Torque RPM	1600
Starter	electric
Starter volts	12
Oil capacity	22.2 qts 21.0 L

Transmission

Transmission options
24-speed four-speed power shift
40-speed creeper

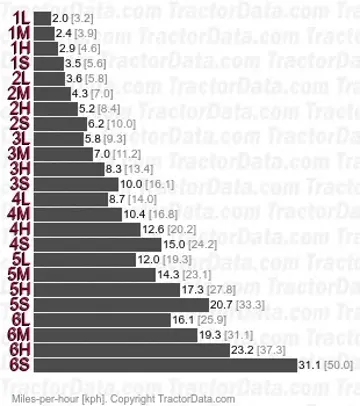

Transmission — 24 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	24 forward and reverse
With 20.8R38 rear tires.

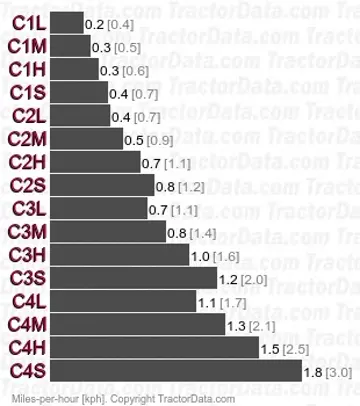

Transmission
Type	creeper
Gears	40 forward and reverse

Dimensions

Deutz-Fahr Agrotron 150.7 Tires
Standard tires (ag)	Front: 16.9R28. Rear: 20.8R38

Dimensions
Wheelbase	108.9 inches 276 cm
Length	187.3 inches 475 cm
Height (cab)	118 inches 299 cm
Weight	12963 lbs 5880 kg
Max weight	20944 lbs 9500 kg
Front tread	74.8 inches 189 cm
Rear tread	74.8 inches 189 cm

Photos

Deutz-Fahr Agrotron 150.7 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Agrotron 150.7 based on its 163.6 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Agrotron 150.7.

Estimated Continuous Field Runtime: 9.5 hrs

Approximately 9.5 hours of continuous field operation at ~75% rated power on a full tank (80.6 gal / 305.1 L).

Estimated 75% Load Fuel Burn~8.5 gal/hr (32.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Agrotron 150.7 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Agrotron 150.7.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)163.6 hp

Kilowatts (kW)122 kW

Metric Horsepower (PS / CV)165.9 PS
