Deutz-Fahr Agrotron 235

The Deutz-Fahr Agrotron 235 is a tractor produced by Deutz Fahr. It is equipped with a 436.1 ci 7.1 L engine. The listed engine power is Diesel (net): 228 hp / 170.0 kW. Transmission: ZF 7300. Operating weight: 19952 lbs 9050 kg.

Engine Power

Diesel (net): 228 hp / 170.0 kW

Fuel & Capacities

145.3 gal 550.0 L

Transmission

ZF 7300

Operating Weight

19952 lbs 9050 kg

Overview

	2003 - 2004 Agrotron SeriesRow-Crop tractor Agrotron Series Row-Crop tractor

Production
Manufacturer	Deutz-Fahr
Row-Crop tractor

Deutz-Fahr Agrotron 235 Engine
Deutz 7.1L 6-cyl diesel
Fuel tank	145.3 gal 550.0 L
Engine details ...

Deutz-Fahr Agrotron 235 Transmission
40-speed four-speed power shift
Transmission details ...

Deutz-Fahr Agrotron 235 Power
Engine (net)	228 hp 170.0 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center load sensing
Pressure	2901 psi 200.0 bar
Pump flow	31.7 gpm 120.0 lpm

Tractor hitch
Rear Type	III
Rear lift	23100 lbs 10478 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)
Front PTO	independent
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	121.6 inches 308 cm
Weight	19952 lbs 9050 kg
Front tire	520/70R34
Rear tire	710/70R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References

Agrotron 210-235-265 published in 2004, by Deutz-Fahr

Engine

Engine Detail — 436.1 ci / 7.1 L Diesel

Manufacturer	Deutz BF6M1013EC
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	436.1 ci 7.1 L
Bore/Stroke	4.25x5.12 inches 108 x 130 mm
Rated Power (net)	228 hp 170.0 kW
Maximum Power (net)	232 hp 173.0 kW
Rated RPM	2350
Torque	693.3 lb-ft 940.1 Nm
Torque RPM	1200
Starter	electric
Starter volts	12

Transmission

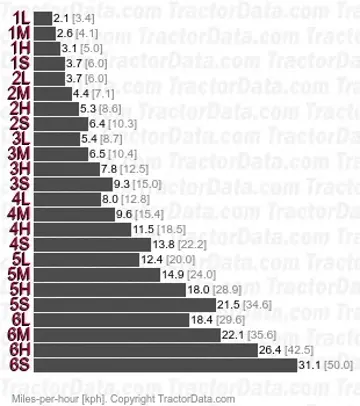

Transmission — ZF 7300

Transmission	ZF 7300
Type	four-speed power shift
Gears	40 forward and reverse
Four power shift speeds in six ranges with power shuttle, plus an additional four creeper ranges.

Dimensions

Deutz-Fahr Agrotron 235 Tires
Standard tires (ag)	Front: 520/70R34. Rear: 710/70R42
Optional tires (ag)	Front: 480/70R34. Rear: 650/85R38
	Front: 520/70R30. Rear: 620/70R42
	Front: 520/70R30. Rear: 710/70R38
	Front: 600/65R30. Rear: 650/65R42
	Front: 600/70R30. Rear: 710/70R38

Dimensions
Wheelbase	121.6 inches 308 cm
Length	196.9 inches 500 cm
Height (cab)	128.2 inches 325 cm
Shipping weight	19952 lbs 9050 kg

Photos

Deutz-Fahr Agrotron 235 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Agrotron 235 based on its 228 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Agrotron 235.

Estimated Continuous Field Runtime: 12.3 hrs

Approximately 12.3 hours of continuous field operation at ~75% rated power on a full tank (145.3 gal / 550 L).

Estimated 75% Load Fuel Burn~11.9 gal/hr (44.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Agrotron 235 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Agrotron 235.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)228 hp

Kilowatts (kW)170 kW

Metric Horsepower (PS / CV)231.2 PS
