Deutz-Fahr DX 4.30
The Deutz-Fahr DX 4.30 is a tractor produced by Deutz Fahr. It is equipped with a 249.3 ci 4.1 L engine. The listed engine power is Diesel (listed): 73.8 hp / 55.0 kW. Transmission: 20 forward and 5 reverse. Operating weight: 7937 to 8642 pounds.
Engine Power
Diesel (listed): 73.8 hp / 55.0 kW
Fuel & Capacities
31.7 gal
120.0 L
Transmission
20 forward and 5 reverse
Operating Weight
7937 to 8642 pounds
Overview
 | 1983 - 1989
DX4 SeriesUtility tractor
DX4 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Utility tractor | |
Deutz-Fahr DX 4.30 Engine | |
|---|---|
Deutz 4.1L 4-cyl diesel | |
Fuel tank | 31.7 gal
120.0 L |
Engine details ...  | |
Deutz-Fahr DX 4.30 Power | |
|---|---|
Engine | 73.8 hp
55.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic drum brakes |
Hydraulics | |
|---|---|
Pressure | 2538 psi
175.0 bar |
Pump flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 8385 lbs
3803 kg |
Front Hitch | II |
Front lift | 3968 lbs
1799 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Front PTO | independent |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 91.7 inches
232 cm |
4WD Wheelbase | 94.5 inches
240 cm |
Weight | 7937 to 8642 pounds |
Front tire | 9.00-16 |
2WD Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
DX4 published in 1984, by Deutz-Fahr |
Engine
Engine Detail — 249.3 ci / 4.1 L Diesel
Manufacturer | Deutz F4L 913 |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 249.3 ci
4.1 L |
Bore/Stroke | 3.94x4.84 inches
100 x 123 mm |
Power | 73.8 hp
55.0 kW |
Rated RPM | 2300 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
15-speed synchronized | |
20-speed creeper |

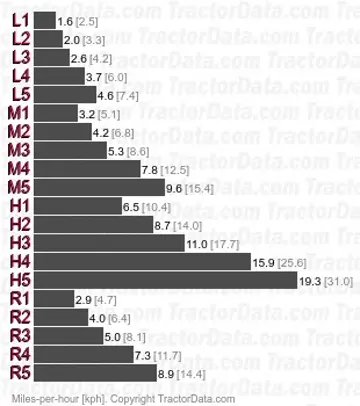

Transmission — 15 forward and 5 reverse synchronized
Type | synchronized |
Gears | 15 forward and 5 reverse |
Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range. | |
With 18.4-34 rear tires | |
 | |
Transmission | |
Type | creeper |
Gears | 20 forward and 5 reverse |
With 18.4-34 rear tires. | |
 | |
Dimensions
Deutz-Fahr DX 4.30 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 9.00-16. Rear: 18.4-34 |
4WD Standard tires (ag) | Front: 13.6-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 91.7 inches
232 cm |
4WD Wheelbase | 94.5 inches
240 cm |
2WD Length | 159.1 inches
404 cm |
4WD Length | 163 inches
414 cm |
Width | 79.9 inches
202 cm |
Height | 103.7 inches
263 cm |
2WD Ground clearance | 20.8 inches
52 cm |
4WD Ground clearance | 16.7 inches
42 cm |
2WD Front tread | 60 to 79.7 inches
152 to 202 cm |
4WD Front tread | 59.5 to 74.4 inches
151 to 188 cm |
Rear tread | 63 to 78.7 inches
160 to 199 cm |
Deutz-Fahr DX 4.30 Weight | |
|---|---|
2WD | 7937 lbs
3600 kg |
4WD | 8642 lbs
3920 kg |
2WD Max capacity | 11905 lbs
5400 kg |
4WD Max capacity | 12566 lbs
5699 kg |
Photos
Deutz-Fahr DX 4.30
Deutz-Fahr DX 4.30
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz Fahr Deutz-Fahr DX 4.30 based on its 73.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr DX 4.30.
Estimated Continuous Field Runtime: 8.3 hrs
Approximately 8.3 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).
Estimated 75% Load Fuel Burn~3.8 gal/hr (14.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Deutz Fahr Deutz-Fahr DX 4.30 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr DX 4.30.
Converted Equivalents:
Horsepower (HP)73.8 hp
Kilowatts (kW)55 kW
Metric Horsepower (PS / CV)74.8 PS
