Deutz-Fahr Intrac 6.60

The Deutz-Fahr Intrac 6.60 is a tractor produced by Deutz Fahr. It is equipped with a 373.9 ci 6.1 L engine. The listed engine power is Diesel (listed): 150 hp / 111.9 kW. Transmission: 30 forward and 10 reverse. Drive type: 4x4 4WD. Operating weight: 13889 lbs 6300 kg.

Engine Power

Diesel (listed): 150 hp / 111.9 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

66.0 gal 249.8 L

Transmission

30 forward and 10 reverse

Operating Weight

13889 lbs 6300 kg

Overview

	1987 - 1990 Intrac 6 SeriesTool Carrier tractor Intrac 6 Series Tool Carrier tractor

Production
Manufacturer	Deutz-Fahr
Tool Carrier tractor

Deutz-Fahr Intrac 6.60 Engine
Deutz 6.1L 6-cyl diesel
Fuel tank	66.0 gal 249.8 L
Engine details ...

Deutz-Fahr Intrac 6.60 Power
Engine	150 hp 111.9 kW

Mechanical
Drive	4x4 4WD

Hydraulics
Pressure	2538 psi 175.0 bar
Pump flow	14.8 gpm 56.0 lpm

Tractor hitch
Rear lift	8996 lbs 4080 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Front PTO Type	1000

Dimensions & Tires
Wheelbase	106.4 inches 270 cm
Weight	13889 lbs 6300 kg
Front tire	18.4R34
Rear tire	18.4R34
Full dimensions and tires ...

References

IN-trac 6.30 / In-trac 6.60 turbo published in 1987, by Deutz

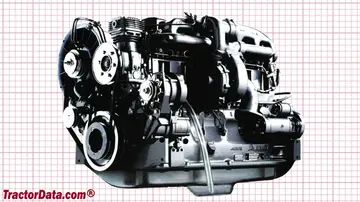

Engine

Engine Detail — 373.9 ci / 6.1 L Diesel

Manufacturer	Deutz BF6L913
Configuration	turbocharged diesel, 6-cylinder, air-cooled
Displacement	373.9 ci 6.1 L
Bore/Stroke	4.02x4.92 inches 102 x 125 mm
Power	150 hp 111.9 kW
Rated RPM	2300
Torque	394.6 lb-ft 535.1 Nm
Torque RPM	1650

Deutz-Fahr Intrac 6.60 Engine

Transmission

Transmission options
15-speed
30-speed

Transmission — 15 forward and 5 reverse

Gears

15 forward and 5 reverse

Transmission — 30 forward and 10 reverse

Gears

30 forward and 10 reverse

Dimensions

Deutz-Fahr Intrac 6.60 Tires
Ag front	18.4R34
Ag rear	18.4R34

Dimensions
Wheelbase	106.4 inches 270 cm
Length	204.7 inches 519 cm
Width	94.1 inches 239 cm
Height	125.2 inches 318 cm
Weight	13889 lbs 6300 kg
Max weight	22046 lbs 10000 kg
Ground clearance	22.8 inches 57 cm

Photos

Deutz-Fahr In.Trac 6.60 tool-carrier tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr Intrac 6.60 based on its 150 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr Intrac 6.60.

Estimated Continuous Field Runtime: 8.5 hrs

Approximately 8.5 hours of continuous field operation at ~75% rated power on a full tank (66 gal / 249.8 L).

Estimated 75% Load Fuel Burn~7.8 gal/hr (29.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr Intrac 6.60 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr Intrac 6.60.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)150 hp

Kilowatts (kW)111.9 kW

Metric Horsepower (PS / CV)152.1 PS
