Ebro 350
The Ebro 350 is a tractor produced by Ebro. It is equipped with a 152 ci 2.5 L engine. The listed engine power is Diesel (listed): 47 hp / 35.0 kW. Transmission: 8 forward and 2 reverse. Operating weight: 4034 lbs 1829 kg.
Engine Power
Diesel (listed): 47 hp / 35.0 kW
Fuel & Capacities
17.2 gal
65.1 L
Transmission
8 forward and 2 reverse
Operating Weight
4034 lbs
1829 kg
Overview
 | Utility tractor | Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Ebro |
Utility tractor | |
Built in Spain | |
Ebro 350 Engine | |
|---|---|
Perkins 2.5L 3-cyl diesel | |
Fuel tank | 17.2 gal
65.1 L |
Engine details ...  | |
Ebro 350 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Ebro 350 Power | |
|---|---|
Engine | 47 hp
35.0 kW |
PTO (claimed) | 45 hp
33.6 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | 540 (1.375) |
Rear PTO Type | 540:2250 |
Dimensions & Tires | |
|---|---|
Weight | 4034 lbs
1829 kg |
Front tire | 6.00x16 |
Rear tire | 13x28 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 152 ci / 2.5 L Diesel
Manufacturer | Perkins AD3.152 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 152 ci
2.5 L |
Bore/Stroke | 3.60x5.00 inches
91 x 127 mm |
Power | 47 hp
35.0 kW |
Rated RPM | 2250 |
Torque | 123 lb-ft
166.8 Nm |
Torque RPM | 1300 |
Starter volts | 12 |
Oil capacity | 6.3 qts
6.0 L |
Coolant capacity | 11.6 qts
11.0 L |
Transmission
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Oil capacity | 28 qts
26.5 L |
Dimensions
Ebro 350 Tires | |
|---|---|
Ag front | 6.00x16 |
Ag rear | 13x28 |
Ag front | 5.50x16 |
Ag rear | 11x28 |
11x36 | |
12x36 | |
Dimensions | |
|---|---|
Length | 128.7 inches
326 cm |
Width | 72 inches
182 cm |
Height (steering wheel) | 59.8 inches
151 cm |
Weight | 4034 lbs
1829 kg |
Ground clearance | 15.8 inches
40 cm |
Photos

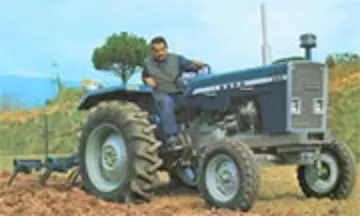

Ebro 350 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Ebro 350 based on its 47 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ebro 350.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (17.2 gal / 65.1 L).
Estimated 75% Load Fuel Burn~2.4 gal/hr (9.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ebro 350 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ebro 350.
Converted Equivalents:
Horsepower (HP)47 hp
Kilowatts (kW)35 kW
Metric Horsepower (PS / CV)47.7 PS
