Economy Country Squire

The Economy Country Squire is a tractor produced by Economy Lawn Tractors. It is equipped with a 376 cc 23 ci engine. The listed engine power is Gasoline (listed): 9 hp / 6.7 kW; Gasoline (listed): 9.2 hp / 6.9 kW. Transmission: 3 forward and 1 reverse.

Overview

	1951 - 1962 Garden tractor

Production
Manufacturer	Economy (a part of Engineering Products Company)
Garden tractor
Built in Waukesha, Wisconsin, USA
The Country Squire tractors were direct mail-order from Muskego, Wisconsin. Other than certain options, the tractors are the same as the Economy tractors of the era and share the same serial number sequence.

Economy Country Squire Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	55 inches 139 cm
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Country Squire 4 Wheel Riding Tractor published in 1957, by EPCO

Engine

Engine options
9HP Briggs & Stratton 376cc 1-cyl gasoline
9.2HP Wisconsin 376cc 1-cyl gasoline

Engine Detail — 376 cc / 22.97 ci Gasoline

Manufacturer	Briggs & Stratton 23AFB
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	376 cc 22.97 ci
Bore/Stroke	3.00x3.25 inches 76 x 83 mm
Power	9 hp 6.7 kW
Rated RPM	3200
Starter type	manual

Engine Detail — 376 cc / 23 ci Gasoline

Manufacturer	Wisconsin AEN
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	376 cc 23 ci
Bore/Stroke	3.00x3.25 inches 76 x 83 mm
Power	9.2 hp 6.9 kW
Rated RPM	3200
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	mechanical dry disc

Dimensions

Economy Country Squire Tires
Ag front	4.00x8
Ag rear	8.00x16

Dimensions
Wheelbase	55 inches 139 cm
Length	79 inches 200 cm
Width	42 inches 106 cm
Height (steering wheel)	46 inches 116 cm
Ground clearance	16 inches 40 cm
Front tread	36 inches 91 cm
Rear tread	36 inches 91 cm

Attachments

Attachment overview
30" mid-mount mower deck
48" mid-mount mower deck
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

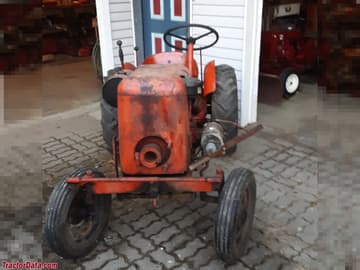

Economy Country Squire

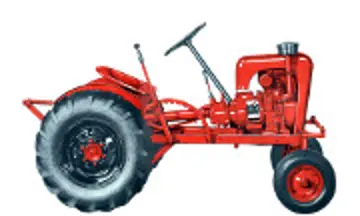

Economy Country Squire
