Farm Pro 2420

The Farm Pro 2420 is a tractor produced by Farm Pro. It is equipped with a 73.8 ci 1.2 L engine. The listed engine power is Diesel (listed): 20 hp / 14.9 kW. Transmission: 12 forward and 4 reverse. Operating weight: 2660 lbs 1206 kg.

Engine Power
Diesel (listed): 20 hp / 14.9 kW
Fuel & Capacities
5.5 gal 20.8 L
Transmission
12 forward and 4 reverse
Operating Weight
2660 lbs 1206 kg

Overview

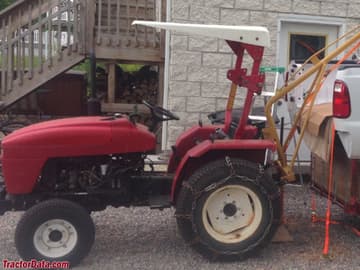

Farm Pro 2420 tractor photo
2002 - 2006 Compact Utility tractorJinma built Compact Utility tractor Jinma built
Production
Distributor
Farm Pro
Manufacturer
Jinma
Compact Utility tractor
Built in China
Farm Pro 2420 Engine
1.2L 2-cyl diesel
Engine details ...
Farm Pro 2420 Transmission
12-speed
Transmission details ...
Farm Pro 2420 Power
Engine
20 hp 14.9 kW
Mechanical
Two-wheel drive
Steering
power optional
ROPS canopy
Capacity
Fuel
5.5 gal 20.8 L
Hydraulic system
2.4 gal 9.1 L
Hydraulics
Capacity
2.4 gal 9.1 L
Total flow
3 gpm 11.4 lpm
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO
live *Dual-stage clutch
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
60 inches 152 cm
Weight
2660 lbs 1206 kg
Front tire
4.00-16
Rear tire
8.3-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 73.8 ci / 1.2 L Diesel

Manufacturer
TY290
Fuel Type
Diesel
Configuration
2-cylinder, liquid-cooled
Displacement
73.8 ci 1.2 L
Bore/Stroke
3.54x3.94 inches 90 x 100 mm
Power
20 hp 14.9 kW
Rated RPM
2300
Starter
electric
Starter volts
12
Oil capacity
6.3 qts 6.0 L
Coolant capacity
10.6 qts 10.0 L

Transmission

Transmission — 12 forward and 4 reverse

Gears
12 forward and 4 reverse
Oil capacity
11.6 qts 11.0 L
2420 speeds

Dimensions

Farm Pro 2420 Tires
Ag front
4.00-16
Ag rear
8.3-24
Dimensions
Wheelbase
60 inches 152 cm
Length
114.5 inches 290 cm
Width
56 inches 142 cm
Height
86 inches 218 cm
Shipping weight
2660 lbs 1206 kg
Ground clearance
10 inches 25 cm

Photos

Farm Pro 2420

Farm Pro 2420

Recommended Implements & Sizing Guide

Engineering recommendations for Farm Pro 2420 based on its 20 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Farm Pro 2420.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (5.5 gal / 20.8 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Farm Pro 2420 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Farm Pro 2420.

Converted Equivalents:

Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS

Direct Competitor Comparison

Compare Farm Pro 2420 against same-era industry alternatives in the same horsepower class.

Current Model
Farm Pro

Farm Pro 2420

Engine Power:Diesel (listed): 20 hp / 14.9 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1215

Engine Power:18
Production Years:1996 - 2003
View Full Specs→
International HarvesterMarket Competitor

International Harvester 184 Lo-Boy

Engine Power:18
Production Years:1977 - 1980
View Full Specs→
CaseIHMarket Competitor

CaseIH 235

Engine Power:18
Production Years:1986 - 1990
View Full Specs→
KubotaMarket Competitor

Kubota B7410

Engine Power:18
Production Years:2004 - 2007
View Full Specs→
