International Harvester Cub 184 Lo-Boy

The International Harvester Cub 184 Lo-Boy is a tractor produced by International Harvester. It is equipped with a 59.5 ci 1.0 L engine. The rated power output is 18 hp 13.4 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1620 lbs 734 kg.

Overview

	1977 - 1980 Compact Utility tractor
1977 - 1980
Compact Utility tractor

Production
Manufacturer	International Harvester
Compact Utility tractor
Built in Louisville, Kentucky, USA
Original price	$4,200 (1980)

International Harvester 184 Lo-Boy Engine
International Harvester 1.0L 4-cyl gasoline
Engine details ...

International Harvester 184 Lo-Boy Power
Engine	18 hp 13.4 kW
PTO (claimed)	11 hp 8.2 kW

Mechanical
Two-wheel drive
Steering	manual
Mechanical drum brakes
Open operator station.

Capacity
Fuel	8 gal 30.3 L
Hydraulic system	1.75 gal 6.6 L

Hydraulics
Type	gear pump
Capacity	1.75 gal 6.6 L
Pressure	2000 psi 137.9 bar
Pump flow	2 gpm 7.6 lpm

Tractor hitch
Rear Type	I (optional)

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-magnetic
Rear PTO Type	1600 (counter-clockwise)

Dimensions & Tires
Wheelbase	64 inches 162 cm
Weight	1620 lbs 734 kg
Front tire	4.00-12
Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	37
	42
Battery volts	12

References
1978 Buyer's Guide published by International Harvester
1979 Buyer's Guide published by International Harvester
Buyer's Guide 1981 published by International Harvester
International 184 Lo-Boy Tractor published by International Harvester

Engine

Engine Detail — 59.5 ci / 1.0 L Gasoline

Manufacturer	International Harvester C60
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	59.5 ci 1.0 L
Bore/Stroke	2.625x2.75 inches 67 x 70 mm
Power	18 hp 13.4 kW
Fuel system	Zenith 68YY7 carburetor
Compression	7.5:1
Rated RPM	2300
Firing order	1-3-4-2
Starter volts	12
Oil capacity	3 qts 2.8 L
Coolant capacity	9.75 qts 9.2 L
Sparkplug gap	0.023 inches 0.584 mm

Transmission

Transmission options
3-speed unsynchronized gear
6-speed creeper

Transmission — 3 forward and 1 reverse unsynchronized gear

Type	unsynchronized gear
Gears	3 forward and 1 reverse
Clutch	mechanical dry disc
Oil capacity	7 qts 6.6 L

Transmission — 6 forward and 2 reverse creeper

Type	creeper
Gears	6 forward and 2 reverse
Optional creeper range for the standard transmission.

Dimensions

International Harvester 184 Lo-Boy Tires
Ag front	4.00-12
Ag rear	8.3-24
Ag rear	9.5-24
Lawn/turf front	20x8.00-10
Lawn/turf rear	13.6-16
	12.4-16

Dimensions
Wheelbase	64 inches 162 cm
Length	94 inches 238 cm
Width	52 inches 132 cm
Height	49 inches 124 cm
Weight	1620 lbs 734 kg
Ground clearance	13 inches 33 cm
Front tread	42 inches 106 cm
Rear tread	42 inches 106 cm

Attachments

Attachment overview
60" mid-mount mower deck
Snowblower
Blade

60" Mower deck
Type	mid-mount International Harvester 3160
	3-blade
Cutting width	60 inches 152 cm
Cut height	1.5 to 7 inch 3 to 17 cm

Photos

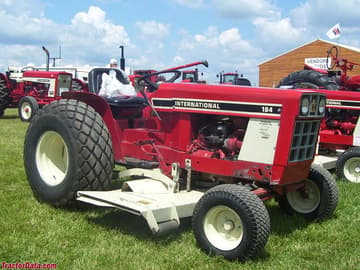

International Harvester Cub 184 Lo-Boy, right side.

International Harvester Cub 184 Lo-Boy, left side.
