Massey Ferguson 1215

The Massey Ferguson 1215 is a tractor produced by Massey Ferguson. It is equipped with a 61.4 ci 1.0 L engine. The rated power output is 17 hp 12.7 kW. Transmission: infinite forward and reverse. Operating weight: 1460 to 1590 pounds.

Overview

	1996 - 2003 1200 Compact SeriesCompact Utility tractorIseki built
1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

Production
Distributor	Massey Ferguson
Manufacturer	Iseki
Compact Utility tractor
Original price	$11,000 (1999)
The Massey Ferguson 1215 is similar to the Iseki model TM217.

Massey Ferguson 1215 Engine
Iseki 1.0L 3-cyl diesel
Fuel tank	3.6 gal 13.6 L
Engine details ...

Massey Ferguson 1215 Power
Engine (gross)	18 hp 13.4 kW
Engine (net)	17 hp 12.7 kW
PTO (claimed)	15.5 hp 11.6 kW

Mechanical
Two- or four-wheel drive
Steering	manual (2WD)
	hydrostatic power (4WD)
Dry shoe brakes
Two-post fixed ROPS.

Hydraulics
Type	open center
Pump flow	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	1058 lbs 479 kg

Power Take-off (PTO)
Rear PTO	transmission (gear)
	live (hydro)
Rear PTO Type	540
Engine RPM	540@2308
Mid PTO	transmission (gear)
	live (hydro)
Mid PTO Type	2000
Engine RPM	2000@2446

Dimensions & Tires
Wheelbase	56.1 inches 142 cm
Weight	1460 to 1590 pounds
Front tire	5.00-12
Rear tire	8.00-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
MF 1200 Series published in 1997, by Massey Ferguson

Engine

	1996 - 2003 1200 Compact SeriesCompact Utility tractorIseki built
1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

Engine Detail — 61.4 ci / 1.0 L Diesel

Manufacturer	Iseki E3100
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	61.4 ci 1.0 L
Power (net)	17 hp 12.7 kW
Power (gross)	18 hp 13.4 kW
Fuel system	indirect injection
Pre-heating	glow plugs
Compression	22.5:1
Rated RPM	2500
Torque	40.6 lb-ft 55.1 Nm
Torque RPM	1800
Starter volts	12
Coolant capacity	5.4 qts 5.1 L

Transmission

	1996 - 2003 1200 Compact SeriesCompact Utility tractorIseki built
1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

Transmission options
6-speed unsynchronized gear
hydrostatic

Transmission — 6 forward and 2 reverse unsynchronized gear

Type	unsynchronized gear
Gears	6 forward and 2 reverse
Clutch	184mm dry disc

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

	1996 - 2003 1200 Compact SeriesCompact Utility tractorIseki built
1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

Massey Ferguson 1215 Tires
Ag front	5.00-12
Ag rear	8.00-18

Dimensions
Wheelbase	56.1 inches 142 cm
Length	100.2 inches 254 cm
Width	39.8 inches (min) 101 cm
Height (ROPS)	77 inches 195 cm
Shipping weight	1460 lbs (2WD gear) 662 kg
	1590 lbs (4WD hydro) 721 kg
Ground clearance	11 inches 27 cm
Front tread	30.3 to 34.6 inches 76 to 87 cm (2WD)
Front tread	29.5 inches 74 cm (4WD)
Rear tread	31.5 to 35.8 inches 80 to 90 cm

Attachments

	1996 - 2003 1200 Compact SeriesCompact Utility tractorIseki built
1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

1996 - 2003
1200 Compact Series
Compact Utility tractor
Iseki built

Attachment overview
54" mid-mount mower deck
Front-end loader

54" Mower deck
Type	mid-mount Massey Ferguson 1231
Cutting width	54 inches 137 cm

Photos

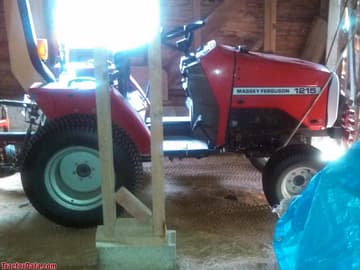

Massey Ferguson 1215
