Farm Pro 2425
The Farm Pro 2425 is a tractor produced by Farm Pro. It is equipped with a 93.5 ci 1.5 L engine. The listed engine power is Diesel (listed): 25 hp / 18.6 kW. Transmission: 12 forward and 4 reverse. Operating weight: 3040 lbs 1378 kg.
Engine Power
Diesel (listed): 25 hp / 18.6 kW
Fuel & Capacities
5.5 gal
20.8 L
Transmission
12 forward and 4 reverse
Operating Weight
3040 lbs
1378 kg
Overview
 | 2002 - 2006
Compact Utility tractorJinma built
Compact Utility tractor
Jinma built |
|---|
Production | |
|---|---|
Distributor | Farm Pro |
Manufacturer | Jinma |
Compact Utility tractor | |
Built in China | |
Farm Pro 2425 Engine | |
|---|---|
1.5L 3-cyl diesel | |
Engine details ...  |
Farm Pro 2425 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Farm Pro 2425 Power | |
|---|---|
Engine | 25 hp
18.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Two-post ROPS with canopy. | |
Capacity | |
|---|---|
Fuel | 5.5 gal
20.8 L |
Hydraulic system | 2.4 gal
9.1 L |
Hydraulics | |
|---|---|
Capacity | 2.4 gal
9.1 L |
Total flow | 3 gpm
11.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (2-stage clutch) |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 60 inches
152 cm |
Weight | 3040 lbs
1378 kg |
Front tire | 6.00-16 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 93.5 ci / 1.5 L Diesel
Manufacturer | Y385T |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 93.5 ci
1.5 L |
Bore/Stroke | 3.35x3.54 inches
85 x 90 mm |
Power | 25 hp
18.6 kW |
Rated RPM | 2350 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3.7 qts
3.5 L |
Coolant capacity | 8.4 qts
7.9 L |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Oil capacity | 14.8 qts
14.0 L |
 | |
Dimensions
Farm Pro 2425 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 9.5-24 |
Dimensions | |
|---|---|
Wheelbase | 60 inches
152 cm |
Length | 114.5 inches
290 cm |
Width | 56 inches
142 cm |
Height | 86 inches
218 cm |
Shipping weight | 3040 lbs
1378 kg |
Ground clearance | 10 inches
25 cm |
Photos

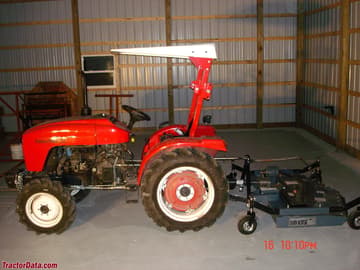

Farm Pro 2425, left side.
Farm Pro 2425, with tiller, right side.
Recommended Implements & Sizing Guide
Engineering recommendations for Farm Pro 2425 based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Farm Pro 2425.
Estimated Continuous Field Runtime: 4.2 hrs
Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (5.5 gal / 20.8 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Farm Pro 2425 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Farm Pro 2425.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
Direct Competitor Comparison
Compare Farm Pro 2425 against same-era industry alternatives in the same horsepower class.
Current Model
Farm Pro
Farm Pro 2425
Engine Power:Diesel (listed): 25 hp / 18.6 kW
★ Baseline Reference
