farmall 340
 | 1958 - 1963
Row-Crop tractor | 1958 - 1963 | Row-Crop tractor |
|---|---|---|---|
1958 - 1963 | |||
Row-Crop tractor | |||
1958 - 1963 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
International Harvester 2.2L 4-cyl gasoline | |
International Harvester 2.7L 4-cyl diesel |
Engine Detail | |
|---|---|
International Harvester C-135 | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Displacement | 135 ci
2.2 L |
Bore/Stroke | 3.25x4.0625 inches
83 x 103 mm |
Power | 47 hp
35.0 kW |
Air cleaner | oil bath |
Compression | 7.6:1 |
Rated RPM | 2000 |
Torque | 128 lb-ft
173.6 Nm |
Torque RPM | 1200 |
Starter volts | 6 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 14 qts
13.2 L |
Engine Detail | |
|---|---|
International Harvester D-166 | |
diesel | |
4-cylinder | |
liquid-cooled | |
The diesel engine was available as an option on the 340 starting in 1960. | |
Displacement | 166 ci
2.7 L |
Bore/Stroke | 3.6875x3.875 inches
94 x 98 mm |
Power | 47 hp
35.0 kW |
Air cleaner | oil bath |
Compression | 19.2:1 |
Rated RPM | 2000 |
Torque | 129 lb-ft
174.9 Nm |
Torque RPM | 1400 |
Starter volts | 12 |
Oil capacity | 7 qts
6.6 L |
Coolant capacity | 18.6 qts
17.6 L |

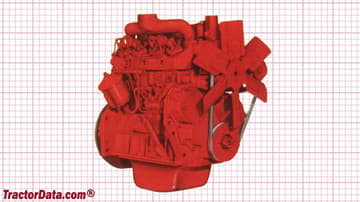

Farmall 340 Engine | |
|---|---|
 |
