farmall 340
 | 1958 - 1963
Row-Crop tractor | 1958 - 1963 | Row-Crop tractor |
|---|---|---|---|
1958 - 1963 | |||
Row-Crop tractor | |||
1958 - 1963 | |
|---|---|
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 665: gasoline Torque Amplifier 2WD | |
NTTL 775: diesel Torque Amplifier 2WD |

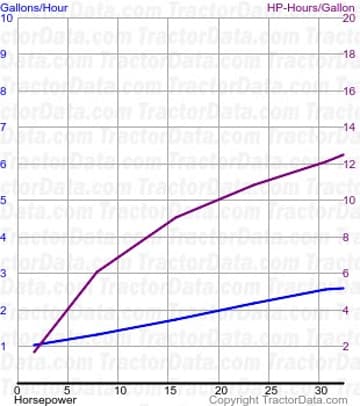

Nebraska Tractor Test 665 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 665 | |
|---|---|
Gasoline Torque Amplifier 2WD
September 3 - 25, 1958
Link: Nebraska Tractor Test 665 file | |
Belt power (max) | 34.74 hp
25.9 kW |
Belt fuel use (max) | 2.9 gal/hour
11.0 l/hour |
Drawbar performance | |
Max power | 31.76 hp
23.7 kW |
Gear 3-DD used for power test. | |
Max pull | 5,142 lbs
2332 kg |
Gear 1-DD used for pull test. | |

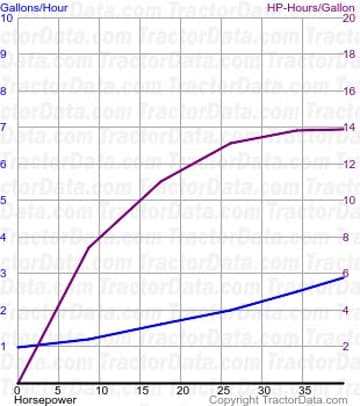

Nebraska Tractor Test 775 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 775 | |
|---|---|
Diesel Torque Amplifier 2WD
October 26 - November 3, 1960
Link: Nebraska Tractor Test 775 file | |
PTO performance | |
Power at rated engine speed | 38.93 hp
29.0 kW |
Fuel use | 2.8 gal/hour
10.6 l/hour |
Power at rated PTO speed | 37.39 hp
27.9 kW |
Fuel use | 2.8 gal/hour
10.6 l/hour |
Drawbar performance | |
Max power | 36.14 hp
26.9 kW |
Fuel use | 2.8 gal/hour
10.6 l/hour |
Gear 3-DD used for power test. | |
Max pull | 5,559 lbs
2521 kg |
Gear 1-DD used for pull test. | |
