farmall 560
 | 1958 - 1963
Row-Crop tractor | 1958 - 1963 | Row-Crop tractor |
|---|---|---|---|
1958 - 1963 | |||
Row-Crop tractor | |||
1958 - 1963 | |
|---|---|
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 669: diesel Torque Amplifier 2WD | |
NTTL 671: gasoline Torque Amplifier 2WD | |
NTTL 675: LP gas Torque Amplifier 2WD |

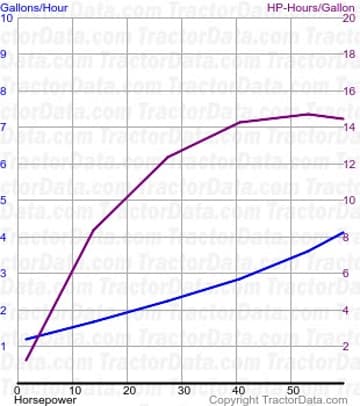

Nebraska Tractor Test 669 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 669 | |
|---|---|
Diesel Torque Amplifier 2WD
September 18 - 25, 1958
Link: Nebraska Tractor Test 669 file | |
PTO performance | |
Power at rated engine speed | 59.48 hp
44.4 kW |
Fuel use | 4.1 gal/hour
15.5 l/hour |
Drawbar performance | |
Max power | 53.12 hp
39.6 kW |
Gear 3 used for power test. | |
Max pull | 7,347 lbs
3332 kg |
Gear 1 used for pull test. | |

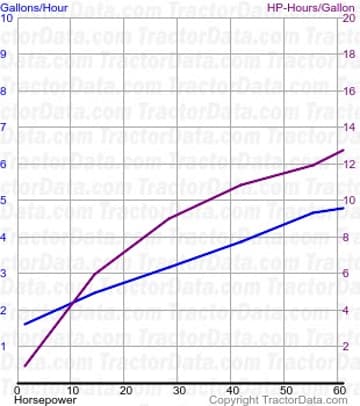

Nebraska Tractor Test 671 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 671 | |
|---|---|
Gasoline Torque Amplifier 2WD
September 24 - October 6, 1958
Link: Nebraska Tractor Test 671 file | |
PTO performance | |
Power at rated engine speed | 63.03 hp
47.0 kW |
Fuel use | 5.0 gal/hour
18.9 l/hour |
Drawbar performance | |
Max power | 50.90 hp
38.0 kW |
Gear 3 used for power test. | |
Max pull | 7,588 lbs
3441 kg |
Gear 1-TA used for pull test. | |

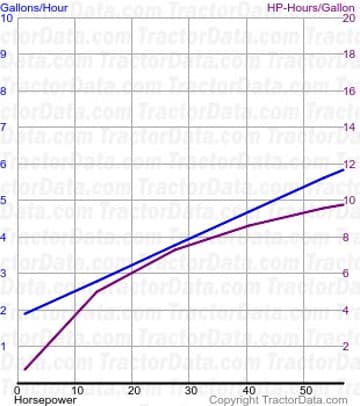

Nebraska Tractor Test 675 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 675 | |
|---|---|
LP gas Torque Amplifier 2WD
October 8 - 20, 1958
Link: Nebraska Tractor Test 675 file | |
Belt power (max) | 60.11 hp
44.8 kW |
Belt fuel use (max) | 6.5 gal/hour
24.6 l/hour |
Drawbar performance | |
Max power | 43.96 hp
32.8 kW |
Fuel use | 5.1 gal/hour
19.3 l/hour |
Max pull | 7,524 lbs
3412 kg |
Gear 1-TA used for pull test. | |
