farmall 560

Farmall 560 tractor photo
1958 - 1963 Row-Crop tractor
1958 - 1963
Row-Crop tractor
1958 - 1963
Row-Crop tractor
1958 - 1963
Row-Crop tractor
Transmission options
5-speed sliding gear
10-speed partial power shift
Transmission
Type
sliding gear
Gears
5 forward and 1 reverse
Oil capacity
64 qts 60.6 L
Tractor must be stopped and clutch used to shift gears.
Speeds
With 13.6-38 rear tires.

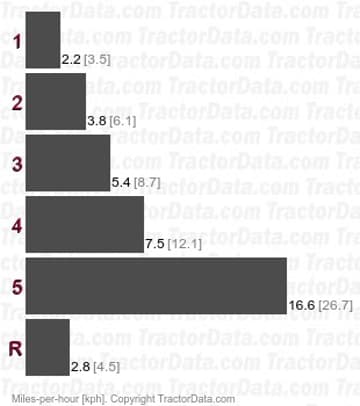

560  sliding gear speeds
Shift Pattern

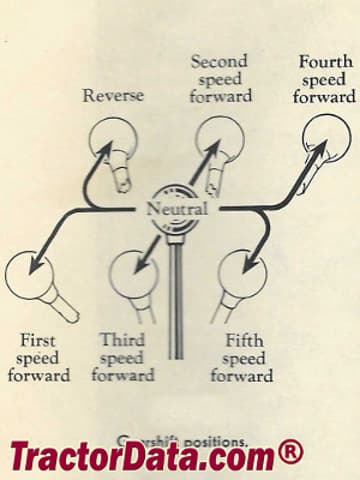

Farmall 560 transmission controls
Transmission
Transmission
Torque Amplifier
Type
partial power shift
Gears
10 forward and 2 reverse
Oil capacity
64 qts 60.6 L
The Torque Amplifier (TA) allows a clutchless shift-on-the-move underspeed for any gear. With the TA lever forward, the TA is disengaged and the transmission is in direct drive (DD) mode. To engage the TA, the lever should be pulled quickly and smoothly to the rear. The TA on the 560 will free-wheel, so it should be disengaged when going downhill or towing the tractor to start it.
Speeds
With 16.6-38 rear tires.

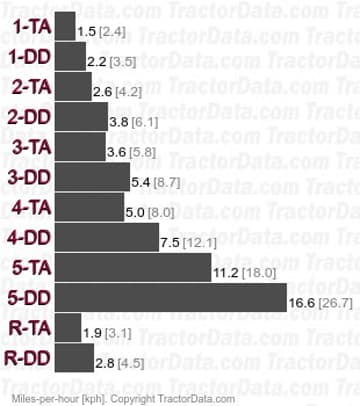

560 Torque Amplifier partial power shift speeds
