farmall 806
 | 1963 - 1967
Row-Crop tractor | 1963 - 1967 | Row-Crop tractor |
|---|---|---|---|
1963 - 1967 | |||
Row-Crop tractor | |||
1963 - 1967 | |
|---|---|
Row-Crop tractor |
Engine options | |
|---|---|
International Harvester 5.9L 6-cyl diesel | |
International Harvester 4.9L 6-cyl gasoline | |
International Harvester 4.9L 6-cyl LP-gas |
Engine Detail | |
|---|---|
International Harvester D-361 | |
diesel | |
6-cylinder | |
liquid-cooled | |
Displacement | 361 ci
5.9 L |
Bore/Stroke | 4.125x4.50 inches
105 x 114 mm |
Air cleaner | two-stage dry |
Compression | 17:1 |
Rated RPM | 2400 |
Idle RPM | 900-2400 |
Starter volts | 12 |

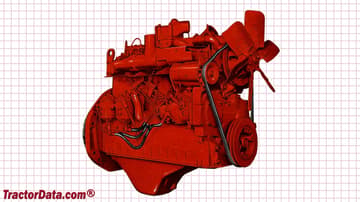

Farmall 806 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
International Harvester C-301 | |
gasoline | |
6-cylinder | |
liquid-cooled | |
Displacement | 301 ci
4.9 L |
Bore/Stroke | 3.8125x4.39 inches
97 x 112 mm |
Power (gross) | 110 hp
82.0 kW |
Air cleaner | two-stage dry |
Rated RPM | 2400 |
Starter volts | 12 |
Engine Detail | |
|---|---|
International Harvester C-301 | |
LP-gas | |
6-cylinder | |
liquid-cooled | |
Displacement | 301 ci
4.9 L |
Bore/Stroke | 3.8125x4.39 inches
97 x 112 mm |
Air cleaner | two-stage dry |
Rated RPM | 2400 |
Starter volts | 12 |
