farmall 806
 | 1963 - 1967
Row-Crop tractor | 1963 - 1967 | Row-Crop tractor |
|---|---|---|---|
1963 - 1967 | |||
Row-Crop tractor | |||
1963 - 1967 | |
|---|---|
Row-Crop tractor |
Transmission options | |
|---|---|
8-speed unsynchronized | |
16-speed two-speed power shift |
Transmission | |
|---|---|
Type | unsynchronized |
Gears | 8 forward and 4 reverse |
Clutch | 12-inch dry disc |
Four gears (1-4) in low, high, and reverse ranges. | |

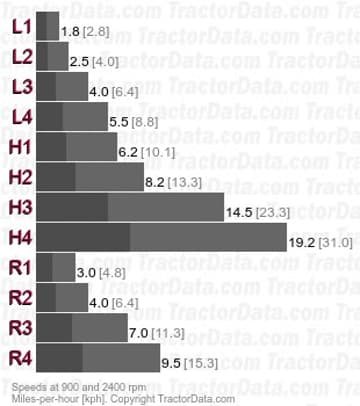

Speeds | |
|---|---|
With 15.5-38 rear tires. | |
 |

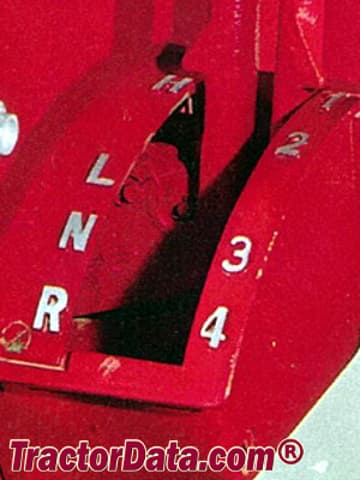

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Transmission | Torque Amplifier |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | 12-inch dry disc |
As two-range Torque Amplifer (TA) to the basic transmission. Pulling back on the left-hand TA lever provides a clutchless shift to a lower speed for each gear. Pushing the lever forward return to direct-drive mode. | |

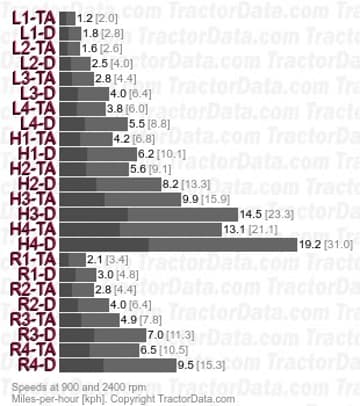

Speeds | |
|---|---|
With 15.5-38 rear tires. | |
 |
