Fendt 1162 Vario MT

The Fendt 1162 Vario MT is a tractor produced by Fendt. It is equipped with a 933.7 ci 15.3 L engine. The listed engine power is Diesel (gross): 610.2 hp / 455.0 kW. Transmission: VarioDrive CVT. Drive type: crawler. Operating weight: 42000 lbs 19051 kg.

Engine Power

Diesel (gross): 610.2 hp / 455.0 kW

Drive & Traction

crawler

Fuel & Capacities

350 gal 1324.8 L

Transmission

VarioDrive CVT

Operating Weight

42000 lbs 19051 kg

Overview

	2020 - 1100 Vario MT SeriesAgricultural Crawler tractor
2020 -
1100 Vario MT Series
Agricultural Crawler tractor

Production
Manufacturer	Fendt (a part of AGCO)
Agricultural Crawler tractor

Variants
MT862	similar Challenger model

Fendt 1162 Vario MT Engine
MAN 15.3L 6-cyl diesel
Fuel tank	350 gal 1324.8 L
Exhaust fluid (DEF)	35.7 gal 135.1 L
Engine details ...

Fendt 1162 Vario MT Transmission
continuously-variable transmission
Transmission details ...

Fendt 1162 Vario MT Power
Engine (gross)	610.2 hp 455.0 kW

Mechanical
Drive	crawler
Cab standard with air-conditioning.

Hydraulics
Type	closed center pressure-flow compensated
Pressure	2900 psi 200.0 bar
Rear valves	4 to 8
Pump flow	58.1 gpm 219.9 lpm
	116.2 gpmOptOptional 439.8 lpm

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000/1000E

Dimensions & Tracks
Wheelbase	118 inches 299 cm
Weight	42000 lbs 19051 kg
Tracks
Full dimensions and tracks ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	325
Batteries	3
Battery volts	12

References

Fednt 1100 Vario MT Series published in 2020, by Fendt
Fednt 1100 Vario MT published in 2020, by Fendt

Engine

Engine Detail — 933.7 ci / 15.3 L Diesel

Manufacturer	MAN D3876
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	933.7 ci 15.3 L
Bore/Stroke	5.43x6.69 inches 138 x 170 mm
Emissions	Tier IV
Rated Power (gross)	610.2 hp 455.0 kW
Rated RPM	1730
Torque	2139 lb-ft 2900.5 Nm
Torque RPM	1450
Starter	electric
Starter volts	24
Oil change	500 h

Fendt 1162 Vario MT Engine

Transmission

Transmission — VarioDrive CVT

Transmission	VarioDrive CVT
Type	continuously-variable transmission
Gears	infinite forward and reverse

Dimensions

Fendt 1162 Vario MT Tracks

Dimensions
Wheelbase	118 inches 299 cm
Length	266 inches 675 cm
Width	116.1 inches*Minimum width 294 cm
Height	148 inches 375 cm
Weight	42000 lbs 19051 kg
Max weight	59000 lbs 26762 kg
Ground clearance	14.1 inches 35 cm
Gauge	88 to 128 inches 223 to 325 cm

Photos

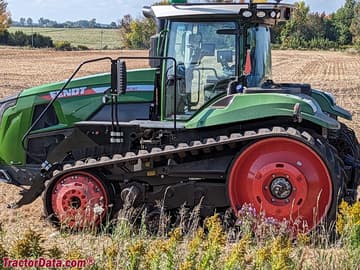

Fendt 1162 Vario MT

Recommended Implements & Sizing Guide

Engineering recommendations for Fendt 1162 Vario MT based on its 610.2 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt 1162 Vario MT.

Estimated Continuous Field Runtime: 11 hrs

Approximately 11 hours of continuous field operation at ~75% rated power on a full tank (350 gal / 1324.9 L).

Estimated 75% Load Fuel Burn~31.7 gal/hr (120.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
