Fendt 1151 Vario MT
The Fendt 1151 Vario MT is a tractor produced by Fendt. It is equipped with a 933.7 ci 15.3 L engine. The rated power output is 504.2 hp 376.0 kW. Transmission: VarioDrive CVT. Drive type: crawler. Operating weight: 42000 lbs 19051 kg.
Engine Power
504.2 hp
376.0 kW
Drive & Traction
crawler
Fuel & Capacities
350 gal
1324.8 L
Transmission
VarioDrive CVT
Operating Weight
42000 lbs
19051 kg
Fendt 1151 Vario MT Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2020 -
1100 Vario MT SeriesAgricultural Crawler tractor |
|---|---|
2020 - | |
1100 Vario MT Series | |
Agricultural Crawler tractor | |
Production | |
|---|---|
Manufacturer | Fendt (a part of AGCO) |
Agricultural Crawler tractor | |
Variants | |
|---|---|
MT851 | similar Challenger model |
Fendt 1151 Vario MT Engine | |
|---|---|
MAN 15.3L 6-cyl diesel | |
Fuel tank | 350 gal
1324.8 L |
Exhaust fluid (DEF) | 35.7 gal
135.1 L |
Engine details ...  | |
Fendt 1151 Vario MT Transmission | |
|---|---|
continuously-variable transmission | |
Transmission details ...  |
Fendt 1151 Vario MT Power | |
|---|---|
Engine (gross) | 504.2 hp
376.0 kW |
Mechanical | |
|---|---|
Drive | crawler |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | closed center pressure-flow compensated |
Pressure | 2900 psi
200.0 bar |
Rear valves | 4 to 8 |
Pump flow | 58.1 gpm
219.9 lpm |
116.2 gpmOptOptional
439.8 lpm | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000/1000E |
Dimensions & Tracks | |
|---|---|
Wheelbase | 118 inches
299 cm |
Weight | 42000 lbs
19051 kg |
Tracks | |
Full dimensions and tracks ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 325 |
Batteries | 3 |
Battery volts | 12 |
References | |
|---|---|
 | |
Fednt 1100 Vario MT Series published in 2020, by Fendt | |
Fednt 1100 Vario MT published in 2020, by Fendt |
Engine
Engine Detail — 933.7 ci / 15.3 L Diesel
Manufacturer | MAN D3876 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled inline |
Displacement | 933.7 ci
15.3 L |
Bore/Stroke | 5.43x6.69 inches
138 x 170 mm |
Emissions | Tier IV |
Rated Power (gross) | 504.2 hp
376.0 kW |
Rated RPM | 1730 |
Torque | 1844 lb-ft
2500.5 Nm |
Torque RPM | 1450 |
Starter | electric |
Starter volts | 24 |
Oil change | 500 h |
Fendt 1151 Vario MT Engine | |
|---|---|
 |
Transmission
Transmission — VarioDrive CVT
Transmission | VarioDrive CVT |
Type | continuously-variable transmission |
Gears | infinite forward and reverse |
Dimensions
Fendt 1151 Vario MT Tracks |
|---|
Dimensions | |
|---|---|
Wheelbase | 118 inches
299 cm |
Length | 266 inches
675 cm |
Width | 116.1 inches*Minimum width
294 cm |
Height | 148 inches
375 cm |
Weight | 42000 lbs
19051 kg |
Max weight | 59000 lbs
26762 kg |
Ground clearance | 14.1 inches
35 cm |
Gauge | 88 to 128 inches
223 to 325 cm |
Photos

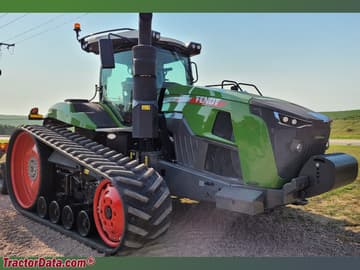

Fendt 1151 Vario MT
Fendt 1151 Vario MT
Fendt 1151 Vario MT
Fendt 1151 Vario MT
Fendt 1151 Vario MT
