Fendt 208

The Fendt 208 is a tractor produced by Fendt. It is equipped with a 263.3 ci 4.3 L engine. The listed engine power is Diesel (net): 79.1 hp / 59.0 kW; Diesel (gross): 84.5 hp / 63.0 kW. Transmission: 21 forward and reverse. Operating weight: 6834 lbs 3099 kg.

Overview

	2003 - 2009 Farmer 200 SeriesUtility tractor Farmer 200 Series Utility tractor

Production
Manufacturer	Fendt (a part of AGCO)
Utility tractor

Variants
208S	utility
208V	ultra-narrow
208F	narrow
208P	wide specialty

Fendt 208 Engine
Deutz 4.3L 4-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

Fendt 208 Power
Engine (gross)	84.5 hp 63.0 kW
Engine (net)	79.1 hp 59.0 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic disc brakes
Cab standard with available heat and air-conditioning.

Hydraulics
Type	open center
Pressure	2900 psi 200.0 bar
Valves	2 or 3
Pump flow	12.4 gpm 46.9 lpm
	19.6 gpmOptOptional 74.2 lpm

Tractor hitch
Rear Type	2
Front Hitch	optional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750/1000
	540/750/ground OptOptional
Front PTO	independent OptOptional
Front PTO Type	540
	1000

Dimensions & Tires
Wheelbase	87.9 inches 223 cm
Weight	6834 lbs 3099 kg
Front tire	320/80R20
Rear tire	420/85R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Charging volts	14
Battery volts	12
Battery AH	88

References
Farmer 206S 207S 208S 209S published in 2006, by Fendt

Engine

Engine Detail — 263.3 ci / 4.3 L Diesel

Manufacturer	Deutz
Configuration	turbocharged diesel, 4-cylinder, air-cooled
Displacement	263.3 ci 4.3 L
Bore/Stroke	4.02x5.20 inches 102 x 132 mm
Rated Power (net)	79.1 hp 59.0 kW
Rated Power (gross)	84.5 hp 63.0 kW
Rated RPM	2300
Torque	233.8 lb-ft 317.0 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

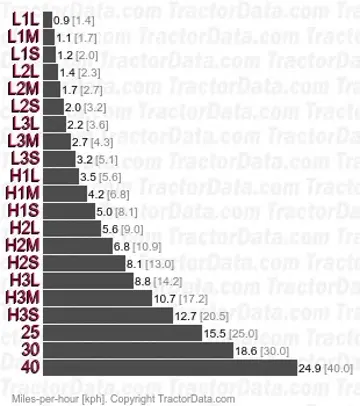

Transmission

Transmission options
21-speed synchromesh
21-speed shuttle

Transmission — 21 forward and 6 reverse synchromesh

Type	synchromesh
Gears	21 forward and 6 reverse
Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40).

Transmission — 21 forward and reverse shuttle

Type	shuttle
Gears	21 forward and reverse
Three gears (1-3) in two ranges (low/high) with three-speed splitter (L/M/S). Additional three overdrive gears (25/30/40) and mechanical shuttle.

Dimensions

Fendt 208 Tires
Standard tires (ag)	Front: 320/80R20. Rear: 420/85R30
Optional tires (ag)	Front: 311.2R20. Rear: 380/85R30
	Front: 405/70R20. Rear: 16.9R30
	Front: 405/70R20. Rear: 420/85R30
	Front: 405/70R20. Rear: 480/70R30
	Front: 420/65R20. Rear: 480/70R30
	Front: 420/65R20. Rear: 540/65R30

Dimensions
Wheelbase	87.9 inches 223 cm
Length	145.5 inches 369 cm
Width	77.3 inches 196 cm
Height	98.4 inches 249 cm
Weight	6834 lbs 3099 kg
Max weight	11684 lbs 5299 kg
Front tread	58.8 inches 149 cm
Rear tread	59.1 inches 150 cm

Photos

Fendt 208 tractor photo
