Fendt Farmer 106S

The Fendt Farmer 106S is a tractor produced by Fendt. It is equipped with a 253.5 ci 4.2 L engine. The listed engine power is Diesel (listed): 64.4 hp / 48.0 kW; Diesel (listed): 64.4 hp / 48.0 kW. Transmission: 16 forward and 5 reverse. Operating weight: 6735 to 7650 pounds.

Overview

	1972 - 1979 Farmer 100 SeriesRow-Crop tractor Farmer 100 Series Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Variants
106S	basic
106LS	deluxe

Fendt Farmer 106S Power
Engine	64.4 hp 48.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Cab standard.

Tractor hitch
Rear lift	5688 lbs 2580 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	87.6 inches 222 cm
4WD Wheelbase	88.4 inches 224 cm
Weight	6735 to 7650 pounds
Front tire	7.50-18
2WD Rear tire	13.6/12-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	28
Charging volts	14
Battery volts	12
Battery AH	110

References
Farmer Vierzylinder-Turbomatik published in 1977, by Fendt

Engine

Engine options
MWM 3.4L 4-cyl diesel
MWM 4.2L 4-cyl diesel

Engine Detail — 207.5 ci / 3.4 L Diesel

Manufacturer	MWM D225-4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
The D225-4 was the original engine in the Farmer 106S, used through 1974.
Displacement	207.5 ci 3.4 L
Bore/Stroke	3.74x4.72 inches 95 x 120 mm
Power	64.4 hp 48.0 kW
Rated RPM	2400
Starter	electric
Starter volts	12

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	MWM D226-4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
The D226-4 was used beginning in 1975.
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	64.4 hp 48.0 kW
Rated RPM	2175

Transmission

Transmission options
13-speed synchronized
16-speed creeper

Transmission — 13 forward and 4 reverse synchronized

Type	synchronized
Gears	13 forward and 4 reverse

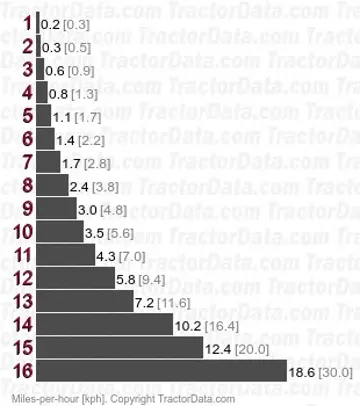

Transmission
Type	creeper
Gears	16 forward and 5 reverse

Dimensions

Fendt Farmer 106S Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 13.6/12-38
4WD Standard tires (ag)	Front: 11.2/10-24. Rear: 13.6/12-38

Dimensions
2WD Wheelbase	87.6 inches 222 cm
4WD Wheelbase	88.4 inches 224 cm
Length	150.4 inches 382 cm
Width	79.1 inches 200 cm
Height	97.6 inches 247 cm
2WD Weight	6735 lbs 3054 kg
4WD Weight	7650 lbs 3470 kg

Photos

Fendt Farmer 106S, right side.

Fendt Farmer 106S, left side.
