Fendt 415 Vario

The Fendt 415 Vario is a tractor produced by Fendt. It is equipped with a 246.4 ci 4.0 L engine. The listed engine power is Diesel (net): 138.1 hp / 103.0 kW; Diesel (gross): 151.5 hp / 113.0 kW. Transmission: Vario. Operating weight: 11949 lbs 5420 kg.

Engine Power
Diesel (net): 138.1 hp / 103.0 kW; Diesel (gross): 151.5 hp / 113.0 kW
Fuel & Capacities
64.7 gal 244.9 L
Transmission
Vario
Operating Weight
11949 lbs 5420 kg

Overview

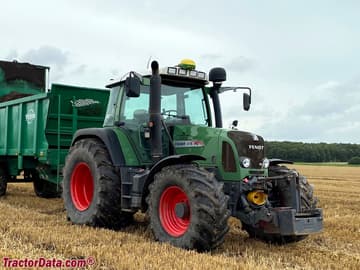

Fendt 415 Vario tractor photo
2006 - 2012 400 Vario SeriesRow-Crop tractor 400 Vario Series Row-Crop tractor
Production
Manufacturer
Fendt (a part of AGCO)
Row-Crop tractor
Fendt 415 Vario Engine
Deutz 4.0L 4-cyl diesel
Fuel tank
64.7 gal 244.9 L
Engine details ...
Fendt 415 Vario Transmission
continuously variable transmission
Transmission details ...
Fendt 415 Vario Power
Engine (gross)
151.5 hp 113.0 kW
Engine (net)
138.1 hp 103.0 kW
Engine (max)
158.2 hp 118.0 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with heat. Air-conditioning optional.
Hydraulics
Type
load sensing
Pressure
2900 psi 200.0 bar
Pump flow
19.8 gpm 74.9 lpm
29.1 gpmOptOptional 110.1 lpm
Tractor hitch
Rear Type
III/II
Rear lift
16424 lbs 7449 kg
Front lift
6834 lbs 3099 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/540E/1000
Front PTO
independent OptOptional
Front PTO Type
540
1000
Dimensions & Tires
Wheelbase
95.2 inches 241 cm
Weight
11949 lbs 5420 kg
Front tire
540/65R24
Rear tire
600/65R38
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
150
Charging volts
14
Battery volts
12
Battery AH
90
References
415 Vario references literature
Fendt 400 Vario published in 2006
Fendt 400 Vario published in 2008
Fendt 400 Vario published in 2010

Engine

Engine Detail — 246.4 ci / 4.0 L Diesel

Manufacturer
Deutz
Configuration
turbocharged intercooled diesel, 4-cylinder 16-valve, liquid-cooled
Displacement
246.4 ci 4.0 L
Bore/Stroke
3.98x4.96 inches 101 x 126 mm
Rated Power (net)
138.1 hp 103.0 kW
Rated Power (gross)
151.5 hp 113.0 kW
Maximum Power (net)
152.9 hp 114.0 kW
Maximum Power (gross)
158.2 hp 118.0 kW
Rated RPM
2100
Torque
484.6 lb-ft 657.1 Nm
Torque RPM
1400
Starter
electric
Starter volts
12

Transmission

Transmission — Vario

Transmission
Vario
Type
continuously variable transmission
Gears
infinite forward and reverse

Dimensions

Fendt 415 Vario Tires
Standard tires (ag)
Front: 540/65R24. Rear: 600/65R38
Optional tires (ag)
Front: 320/85R32. Rear: 300/95R46
Front: 480/70R24. Rear: 520/70R38
Front: 480/60R28. Rear: 650/60R38
Dimensions
Wheelbase
95.2 inches 241 cm
Length
168.5 inches 427 cm
Width
98 inches 248 cm
Height
116.3 inches 295 cm
Weight
11949 lbs 5420 kg
Max weight
20944 lbs 9500 kg
Ground clearance
20.2 inches 51 cm
Front tread
74 inches 187 cm
Rear tread
73.2 inches 185 cm

Attachments

Attachment overview
Fendt 4X/75 loader
Fendt 4X/60 loader

Photos

Fendt 415 Vario

Fendt 415 Vario

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt 415 Vario.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Fendt 415 Vario Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Fendt 415 Vario.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
