John Deere 3550
The John Deere 3550 is a tractor produced by John Deere. It is equipped with a 359 ci 5.9 L engine. The rated power output is 125 hp 93.2 kW. Transmission: 16 forward and 4 reverse. Operating weight: 14350 lbs 6509 kg.
Engine Power
125 hp
93.2 kW
Fuel & Capacities
33 gal
124.9 L
Transmission
16 forward and 4 reverse
Operating Weight
14350 lbs
6509 kg
John Deere 3550 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1988 - 1993
Utility tractor |
|---|---|
1988 - 1993 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | John Deere |
Utility tractor | |
Built in Rosario, Argentina | |
John Deere 3550 Engine | |
|---|---|
John Deere 5.9L 6-cyl diesel | |
Fuel tank | 33 gal
124.9 L |
13.5 gal (aux tank)
51.1 L | |
Engine details ...  | |
John Deere 3550 Transmission | |
|---|---|
16-speed synchromesh | |
Transmission details ...  |
John Deere 3550 Power | |
|---|---|
Engine | 125 hp
93.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Open operator station. |
Hydraulics | |
|---|---|
Pump flow | 11.6 gpm
43.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
540/1000 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 100.4 inches
255 cm |
4WD Wheelbase | 101.6 inches
258 cm |
Weight | 14350 lbs
6509 kg |
Front tire | 16.9x24 |
Rear tire | 18.4x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 28 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 100 |
Engine
Engine Detail — 359 ci / 5.9 L Diesel
Manufacturer | John Deere |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 359 ci
5.9 L |
Bore/Stroke | 4.193x4.331 inches
107 x 110 mm |
Power | 125 hp
93.2 kW |
Fuel system | direct injection |
Compression | 17.4:1 |
Rated RPM | 2300 |
Torque | 70.8 lb-ft
96.0 Nm |
Torque RPM | 1500 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 12.2 qts
11.5 L |
Coolant capacity | 20 qts
18.9 L |

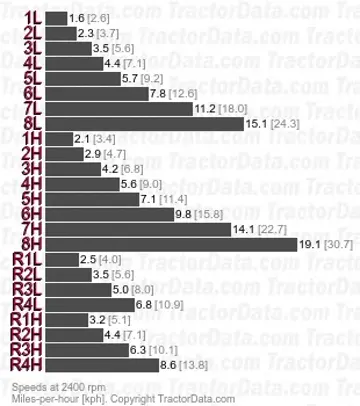

Transmission
Transmission — 16 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 16 forward and 4 reverse |
Clutch | dry disc |
With 18.4x38 rear tires. | |
 | |
Dimensions
John Deere 3550 Tires | |
|---|---|
Ag front | 16.9x24 |
Ag rear | 18.4x38 |
Dimensions | |
|---|---|
2WD Wheelbase | 100.4 inches
255 cm |
4WD Wheelbase | 101.6 inches
258 cm |
Length | 184 inches
467 cm |
Width | 85 inches
215 cm |
Height | 113.4 inches
288 cm |
Weight | 14350 lbs
6509 kg |
Ground clearance | 13.4 inches
34 cm |
Front tread | 61.4 to 78 inches
155 to 198 cm |
Rear tread | 56.3 to 87 inches
143 to 220 cm |
