Fendt Farmer 275S

The Fendt Farmer 275S is a tractor produced by Fendt. It is equipped with a 249.3 ci 4.1 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: 21 forward and 6 reverse. Operating weight: 6,019 lbs (2WD) 2730 kg.

Engine Power

Diesel (listed): 75 hp / 55.9 kW

Fuel & Capacities

15.9 gal 60.2 L

Transmission

21 forward and 6 reverse

Operating Weight

6,019 lbs (2WD) 2730 kg

Overview

	1987 - 1996 Farmer 200 SeriesRow-Crop tractor Farmer 200 Series Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Fendt Farmer 275S Engine
KHD 4.1L 4-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

Fendt Farmer 275S Transmission
21-speed
Transmission details ...

Fendt Farmer 275S Power
Engine	75 hp 55.9 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic drum brakes

Hydraulics
Pump flow	10.3 gpm 39.0 lpm

Tractor hitch
Rear lift	6151 lbs 2790 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750/1000

Dimensions & Tires
Wheelbase	85.8 inches 217 cm
Weight	6019 to 6548 pounds
Front tire	7.50-18
Rear tire	16.9R28
Full dimensions and tires ...

Engine

Engine Detail — 249.3 ci / 4.1 L Diesel

Manufacturer	KHD F4L913
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	249.3 ci 4.1 L
Bore/Stroke	4.02x4.92 inches 102 x 125 mm
Power	75 hp 55.9 kW
Fuel system	direct injection
Rated RPM	2300
Torque	198.4 lb-ft 269.0 Nm
Torque RPM	1600
Starter	electric
Starter volts	12

Transmission

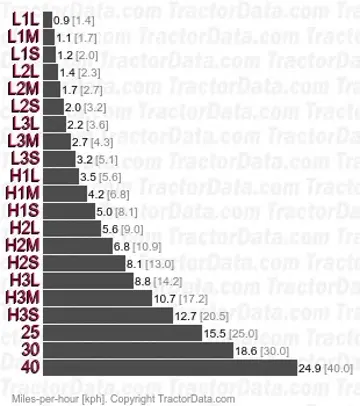

Transmission — 21 forward and 6 reverse

Gears	21 forward and 6 reverse
Gearshift with three gears (1-3), plus reverse (R), and three overdrive gears (25, 30, and 40 kph). Triple range gear split provides three speeds for each of the non-overdrive gears. Low and high ranges. Transmission also available with addition super-creeper range providing 30 gears forward and 9 reverse.

Dimensions

Fendt Farmer 275S Tires
Ag front	7.50-18
	11.2R20 (4WD)
Ag rear	16.9R28

Dimensions
Wheelbase	85.8 inches 217 cm
Length	143.70 inches 364 cm
Height	92.52 inches 235 cm
Weight	6,019 lbs (2WD) 2730 kg
	6,548 lbs (4WD) 2970 kg

Recommended Implements & Sizing Guide

Engineering recommendations for Fendt Farmer 275S based on its 75 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt Farmer 275S.

Estimated Continuous Field Runtime: 4.1 hrs

Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).

Estimated 75% Load Fuel Burn~3.9 gal/hr (14.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
