Fendt Farmer 280S

The Fendt Farmer 280S is a tractor produced by Fendt. It is equipped with a 249.3 ci 4.1 L engine. The listed engine power is Diesel (listed): 79.1 hp / 59.0 kW. Transmission: 21 forward and reverse. Operating weight: 6548 lbs 2970 kg.

Engine Power

Diesel (listed): 79.1 hp / 59.0 kW

Fuel & Capacities

15.9 gal 60.2 L

Transmission

21 forward and reverse

Operating Weight

6548 lbs 2970 kg

Overview

	1996 - 2002 Farmer 200 SeriesRow-Crop tractor Farmer 200 Series Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Fendt Farmer 280S Engine
KHD 4.1L 4-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

Fendt Farmer 280S Power
Engine	79.1 hp 59.0 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic drum brakes
Cab standard with heat. Air-conditioning optional.

Hydraulics
Pressure	2611 psi 180.0 bar
Pump flow	10.8 gpm 40.9 lpm

Tractor hitch
Rear lift	6151 lbs 2790 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750/1000
Front PTO Type	1000

Dimensions & Tires
Wheelbase	85.8 inches 217 cm
Weight	6548 lbs 2970 kg
Front tire	12.4R20
Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	55
Charging volts	14
Battery volts	12
Battery AH	88

References

Farmer 250S 260S 280S published in 1996, by Fendt

Engine

Engine Detail — 249.3 ci / 4.1 L Diesel

Manufacturer	KHD F4L913
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	249.3 ci 4.1 L
Bore/Stroke	4.02x4.92 inches 102 x 125 mm
Power	79.1 hp 59.0 kW
Fuel system	direct injection
Rated RPM	2300
Torque	200.6 lb-ft 272.0 Nm
Torque RPM	1550
Starter	electric
Starter volts	12

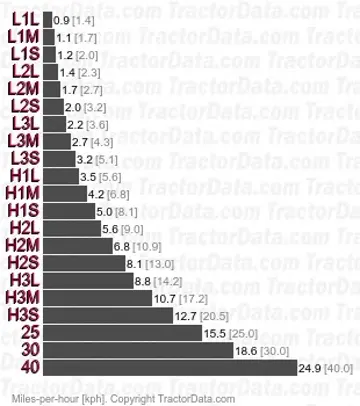

Transmission

Transmission options
21-speed
21-speed shuttle

Transmission — 21 forward and 6 reverse

Gears	21 forward and 6 reverse
Gearshift with three gears (1-3), plus reverse (R), and three overdrive gears (25, 30, and 40 kph). Triple range gear split provides three speeds for each of the non-overdrive gears. Low and high ranges. Transmission also available with addition super-creeper range providing 30 gears forward and 9 reverse.

Transmission — 21 forward and reverse shuttle

Type	shuttle
Gears	21 forward and reverse

Dimensions

Fendt Farmer 280S Tires
Standard tires (ag)	Front: 12.4R20. Rear: 16.9R30

Dimensions
Wheelbase	85.8 inches 217 cm
Length	143.1 inches 363 cm
Width	74 inches 187 cm
Height (cab)	92.5 inches 234 cm
Ground clearance	13.1 inches 33 cm
Front tread	59.1 inches 150 cm
Rear tread	59.1 inches 150 cm
Rear tread	50.4 to 70.1 inches 128 to 178 cm

Fendt Farmer 280S Weight
	6548 lbs 2970 kg
Max capacity	11023 lbs 5000 kg
Max Drawbar	2205 lbs 1000 kg

Photos

Fendt Farmer 280S tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Fendt Farmer 280S based on its 79.1 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt Farmer 280S.

Estimated Continuous Field Runtime: 3.9 hrs

Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).

Estimated 75% Load Fuel Burn~4.1 gal/hr (15.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
