Fendt Farmer 307

The Fendt Farmer 307 is a tractor produced by Fendt. It is equipped with a 190.1 ci 3.1 L engine. The rated power output is 75 hp 55.9 kW. Transmission: 21 forward and reverse. Operating weight: 8489 lbs 3850 kg.

Overview

	1993 - 1998 Farmer 300 SeriesRow-Crop tractor
1993 - 1998
Farmer 300 Series
Row-Crop tractor

Production
Manufacturer	Fendt
Row-Crop tractor

Fendt Farmer 307 Engine
MWM 3.1L 3-cyl diesel
Fuel tank	21.1 gal 79.9 L
Engine details ...

Fendt Farmer 307 Transmission
21-speed three-speed power shift
Transmission details ...

Fendt Farmer 307 Power
Engine	75 hp 55.9 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Hydraulics
Pump flow	18.8 gpm 71.2 lpm

Tractor hitch
Rear lift	8859 lbs 4018 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/750/1000
Front PTO	independent OptOptional
Clutch	electro-hydraulic
Front PTO Type	1000

Dimensions & Tires
Wheelbase	84.7 inches 215 cm
Weight	8489 lbs 3850 kg
Front tire	380/70R24
Rear tire	480/70R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery volts	12
Battery AH	90

References
Farmer 307 - 308 - 309 - 310 - 311 - 312 published in 1993, by Fendt

Engine

Engine Detail — 190.1 ci / 3.1 L Diesel

Manufacturer	MWM TD226.B3
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	190.1 ci 3.1 L
Bore/Stroke	4.134x4.72 inches 105 x 120 mm
Power	75 hp 55.9 kW
Rated RPM	2250
Torque	225.7 lb-ft 306.0 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

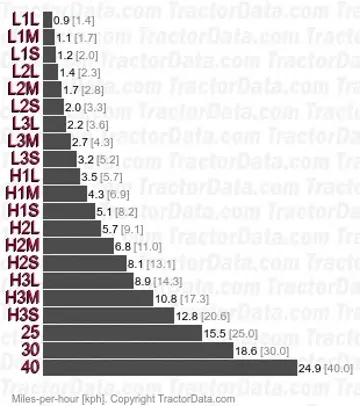

Transmission — 21 forward and reverse three-speed power shift

Type	three-speed power shift
Gears	21 forward and reverse
Three gears, in two ranges, with a three-speed power shift. Additional three overdrive gear ranges. The 40 kph overdrive was not available in all markets.

Dimensions

Fendt Farmer 307 Tires
Standard tires (ag)	Front: 380/70R24. Rear: 480/70R34
Optional tires (ag)	Front: 12.4R24. Rear: 12.4-38
	Front: 13.6-24. Rear: 13.6R38
	Front: 440/65R24. Rear: 540/65R34
	Front: 375/75R20. Rear: 480/70R38
	Front: 11.2R28. Rear: 11.2R44
	Front: 9.5R28. Rear: 9.5R44

Dimensions
Wheelbase	84.7 inches 215 cm
Length	153.2 inches 389 cm
Width	83.1 inches 211 cm
Height (cab)	105.1 inches 266 cm
Weight	8489 lbs 3850 kg
Max weight	14330 lbs 6500 kg
Front tread	67.3 inches 170 cm
Rear tread	65 inches 165 cm

Photos

Fendt Farmer 307 tractor photo
