Fendt Farmer 308Ci

The Fendt Farmer 308Ci is a tractor produced by Fendt. It is equipped with a 246.4 ci 4.0 L engine. The rated power output is 88.5 hp 66.0 kW. Transmission: 21 forward and reverse. Operating weight: 8135 to 9237 pounds.

Overview

	2003 - 2008 Farmer 300 Series
2003 - 2008
Farmer 300 Series

Production
Manufacturer	Fendt (a part of AGCO)

Fendt Farmer 308Ci Engine
Deutz 4.0L 4-cyl diesel
Fuel tank	29.1 gal 110.1 L
Engine details ...

Fendt Farmer 308Ci Power
Engine (net)	88.5 hp 66.0 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic disc brakes
Cab standard with heat. Air-conditioning optional.

Hydraulics
Type	open center
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Pump flow	18.5 gpm 70.0 lpm

Tractor hitch
Rear Type	III/II
Rear lift	10979 lbs 4980 kg
Front lift	6493 lbs 2945 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750/1000
Front PTO	independent OptOptional
Front PTO Type	540
	1000

Dimensions & Tires
2WD Wheelbase	94 inches 238 cm
4WD Wheelbase	89.8 inches 228 cm
Weight	8135 to 9237 pounds
Front tire	11.00-16
2WD Rear tire	480/70R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Charging volts	14
Battery volts	12
Battery AH	90

References
Farmer 307Ci - 308Ci - 309Ci published in 2005, by Fendt

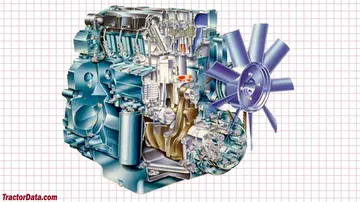

Engine

Engine Detail — 246.4 ci / 4.0 L Diesel

Manufacturer	Deutz
Configuration	turbocharged intercooled diesel, 4-cylinder, liquid-cooled
Displacement	246.4 ci 4.0 L
Bore/Stroke	3.98x4.96 inches 101 x 126 mm
Rated Power (net)	88.5 hp 66.0 kW
Maximum Power (net)	96.6 hp 72.0 kW
Rated RPM	2300
Torque	315.7 lb-ft 428.1 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Fendt Farmer 308Ci Engine

Transmission

Transmission options
21-speed synchronized
21-speed shuttle

Transmission — 21 forward and 6 reverse synchronized

Type	synchronized
Gears	21 forward and 6 reverse
Three gears (1-3) plus reverse (R) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears.

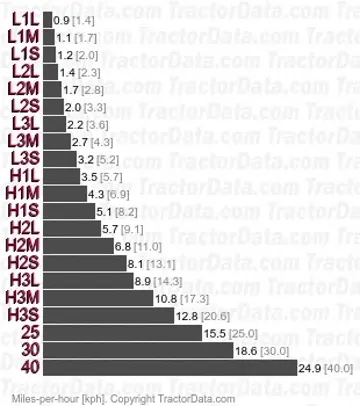

Transmission — 21 forward and reverse shuttle

Type	shuttle
Gears	21 forward and reverse
Three gears (1-3) in two ranges (Low/High) with a three-way splitter (L/M/S). Three additional overdrive gears and mechanical shuttle.

Dimensions

Fendt Farmer 308Ci Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 480/70R34
4WD Standard tires (ag)	Front: 380/70R24. Rear: 480/70R34

Dimensions
2WD Wheelbase	94 inches 238 cm
4WD Wheelbase	89.8 inches 228 cm
Length	157.5 inches 400 cm
Width	84.3 inches 214 cm
Height (cab)	106.3 inches 270 cm
Ground clearance	18.9 inches 48 cm

Fendt Farmer 308Ci Weight
2WD Shipping	8135 lbs 3690 kg
4WD Shipping	8885 lbs 4030 kg
2WD Operating	8488 lbs 3850 kg
4WD Operating	9237 lbs 4189 kg
2WD Max capacity	13228 lbs 6000 kg
4WD Max capacity	15432 lbs 6999 kg
Max Drawbar	3307 lbs 1500 kg

Attachments

Attachment overview
Fendt 3/60 loader
Fendt 3S/60 loader

Photos

Fendt Farmer 308Ci tractor photo
