Fendt Favorit 515C

The Fendt Favorit 515C is a tractor produced by Fendt. It is equipped with a 380.4 ci 6.2 L engine. The listed engine power is Diesel (listed): 150 hp / 111.9 kW. Transmission: 44 forward and reverse. Operating weight: 12214 lbs 5540 kg.

Engine Power

Diesel (listed): 150 hp / 111.9 kW

Fuel & Capacities

55.5 gal 210.1 L

Transmission

44 forward and reverse

Operating Weight

12214 lbs 5540 kg

Overview

	1995 - 1999 Favorit 500C Series

Production
Manufacturer	Fendt

Fendt Favorit 515C Engine
MWM 6.2L 6-cyl diesel
Fuel tank	55.5 gal 210.1 L
Engine details ...

Fendt Favorit 515C Transmission
44-speed four-speed power shift
Transmission details ...

Fendt Favorit 515C Power
Engine	150 hp 111.9 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic disc brakes
Cab standard with heater. Air-conditioning optional.

Hydraulics
Pump flow	26.9 gpm 101.8 lpm

Tractor hitch
Rear Type	III/II
Control	lower-link draft sensing
Rear lift	15181 lbs 6886 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/750/1000/1400
Front PTO	independent OptOptional
Front PTO Type	1000

Dimensions & Tires
Wheelbase	102.8 inches 261 cm
Weight	12214 lbs 5540 kg
Front tire	420/70R28
Rear tire	520/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12
Battery AH	135

References

Favorit 509C 510C 511C 512C 514C 515C published in 1996, by Fendt

Engine

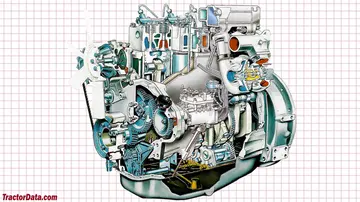

Engine Detail — 380.4 ci / 6.2 L Diesel

Manufacturer	MWM
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	380.4 ci 6.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	150 hp 111.9 kW
Rated RPM	2300
Torque	438.1 lb-ft 594.1 Nm
Torque RPM	1500
Starter volts	12

Fendt Favorit 515C Engine

Transmission

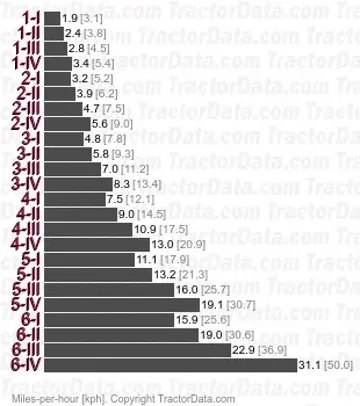

Transmission — 44 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	44 forward and reverse
Four power shift gears (I-IV) in six ranges (1-6) with shuttle. Additional creeper range provides another five ranges.
With 520/70R38 rear tires and 50 kph option.

Dimensions

Fendt Favorit 515C Tires
Standard tires (ag)	Front: 420/70R28. Rear: 520/70R38
Optional tires (ag)	Front: 480/70R26. Rear: 520/70R38
	Front: 480/65R28. Rear: 600/65R38
	Front: 480/70R28. Rear: 580/70R38
	Front: 540/65R28. Rear: 650/65R38
	Front: 16.9R26. Rear: 18.4R38
	Front: 16.9R28. Rear: 20.8R38
	Front: 9.5R36. Rear: 11.2R48
	Front: 12.4R32. Rear: 12.4R46

Dimensions
Wheelbase	102.8 inches 261 cm
Length	176.4 inches 448 cm
Width	96.1 inches 244 cm
Height (cab)	112.4 inches 285 cm
Weight	12214 lbs 5540 kg
Max weight	16535 lbs 7500 kg
Ground clearance	22.7 inches 57 cm
Front tread	59.1 to 77.6 inches 150 to 197 cm
Rear tread	59.1 to 78.7 inches 150 to 199 cm

Photos

Fendt Favorit 515C

Recommended Implements & Sizing Guide

Engineering recommendations for Fendt Favorit 515C based on its 150 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fendt Favorit 515C.

Estimated Continuous Field Runtime: 7.1 hrs

Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (55.5 gal / 210.1 L).

Estimated 75% Load Fuel Burn~7.8 gal/hr (29.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
