Fiat 211Rb
The Fiat 211Rb is a tractor produced by Fiat. It is equipped with a 74 ci 1.2 L engine. The rated power output is 21 hp 15.7 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1,920 lbs 870 kg.
Engine Power
21 hp
15.7 kW
Fuel & Capacities
Gasoline
Transmission
6 forward and 2 reverse
Operating Weight
1,920 lbs
870 kg
Fiat 211Rb Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1959 - 1964
200 SeriesUtility tractor |
|---|---|
1959 - 1964 | |
200 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Fiat |
Utility tractor | |
Fiat 211Rb Engine | |
|---|---|
FIAT 1.2L 4-cyl gasoline | |
Engine details ...  |
Fiat 211Rb Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Fiat 211Rb Power | |
|---|---|
Engine | 21 hp
15.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 1,920 lbs
870 kg |
Front tire | 4.00-15 |
Rear tire | 8.00-24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 74 ci / 1.2 L Gasoline
Manufacturer | FIAT |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 74 ci
1.2 L |
Bore/Stroke | 2.835x2.953 inches
72 x 75 mm |
Power | 21 hp
15.7 kW |
Compression | 7.1:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Dimensions
Fiat 211Rb Tires | |
|---|---|
Ag front | 4.00-15 |
Ag rear | 8.00-24 |
Dimensions | |
|---|---|
Length | 101.33 inches
257 cm |
Width | 54.5 inches
138 cm |
75.5 inches
191 cm | |
Height | 51.24 inches
130 cm |
Weight | 1,920 lbs
870 kg |
Photos

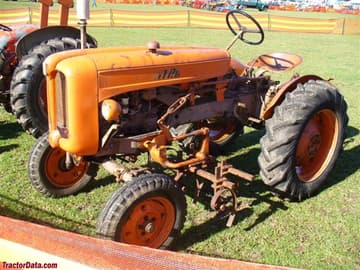

Fiat 211Rb
