Fiat 55-88
The Fiat 55-88 is a tractor produced by Fiat. It is equipped with a 165.4 ci 2.7 L engine. The rated power output is 54.3 hp 40.5 kW. Transmission: 20 forward and 8 reverse. Operating weight: 6173 to 6834 pounds.
Engine Power
54.3 hp
40.5 kW
Fuel & Capacities
24.6 gal
93.1 L
Transmission
20 forward and 8 reverse
Operating Weight
6173 to 6834 pounds
Fiat 55-88 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1995
88 SeriesUtility tractor |
|---|---|
1990 - 1995 | |
88 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Fiat |
Utility tractor | |
Fiat 55-88 Engine | |
|---|---|
Fiat 2.7L 3-cyl diesel | |
Fuel tank | 24.6 gal
93.1 L |
Engine details ...  | |
Fiat 55-88 Power | |
|---|---|
Engine | 54.3 hp
40.5 kW |
PTO (claimed) | 48 hp
35.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with heat. |
Hydraulics | |
|---|---|
Pump flow | 11.6 gpm
43.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2200 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 87.7 inches
222 cm |
4WD Wheelbase | 86.6 inches
219 cm |
Weight | 6173 to 6834 pounds |
Front tire | 7.50-16 |
2WD Rear tire | 12.4/11-36 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
55-88 Komfort published in 1991, by Fiat |
Engine
Engine Detail — 165.4 ci / 2.7 L Diesel
Manufacturer | Fiat 8035.06 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 165.4 ci
2.7 L |
Bore/Stroke | 3.94x4.53 inches
100 x 115 mm |
Power | 54.3 hp
40.5 kW |
Fuel system | direct injection |
Pre-heating | thermostart |
Compression | 17:1 |
Rated RPM | 2500 |
Torque | 129.1 lb-ft
175.1 Nm |
Torque RPM | 1500 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 6.3 qts
6.0 L |

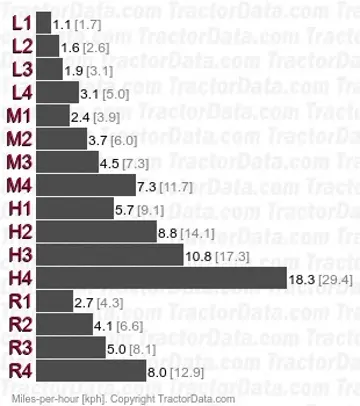

Transmission
Transmission options | |
|---|---|
12-speed | |
20-speed creeper |
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Oil capacity | 51.8 qts
49.0 L |
With 12.4-36 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 20 forward and 8 reverse |
Dimensions
Fiat 55-88 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-16. Rear: 12.4/11-36 |
4WD Standard tires (ag) | Front: 11.2/10-24. Rear: 12.4/11-36 |
2WD Optional tires (ag) | Front: 7.50-16. Rear: 16.9-30 |
4WD Optional tires (ag) | Front: 12.4/11-24. Rear: 16.9-30 |
Dimensions | |
|---|---|
2WD Wheelbase | 87.7 inches
222 cm |
4WD Wheelbase | 86.6 inches
219 cm |
2WD Length | 132.3 inches
336 cm |
4WD Length | 136.4 inches
346 cm |
2WD Weight | 6173 lbs
2800 kg |
4WD Weight | 6834 lbs
3099 kg |
2WD Ground clearance | 17.5 inches
44 cm |
4WD Ground clearance | 15.4 inches
39 cm |
2WD Front tread | 55.1 to 74.8 inches
139 to 189 cm |
4WD Front tread | 57.1 to 74 inches
145 to 187 cm |
Fiat 55-88 Height | |
|---|---|
2WD Hood | 53.3 inches
135 cm |
4WD Hood | 56.1 inches
142 cm |
Cab | 98.7 inches
250 cm |
